Canister Purge Control Valve: Testing and Inspection

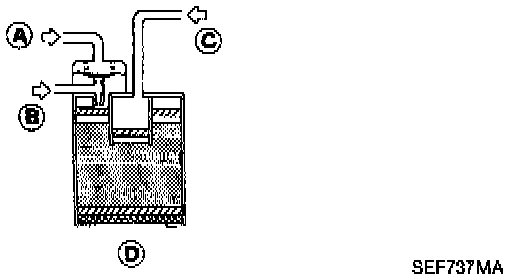

Carbon Canister/Purge Control Valve Test:

Check Carbon Canister and Purge Control Valve as follows:
^ Blow air in port A and ensure that there is no leakage.
^ Apply vacuum to port A.
^ Cover port D with hand.
^ Blow air in port C and ensure free flow out of port B.
