Power Supply Testing

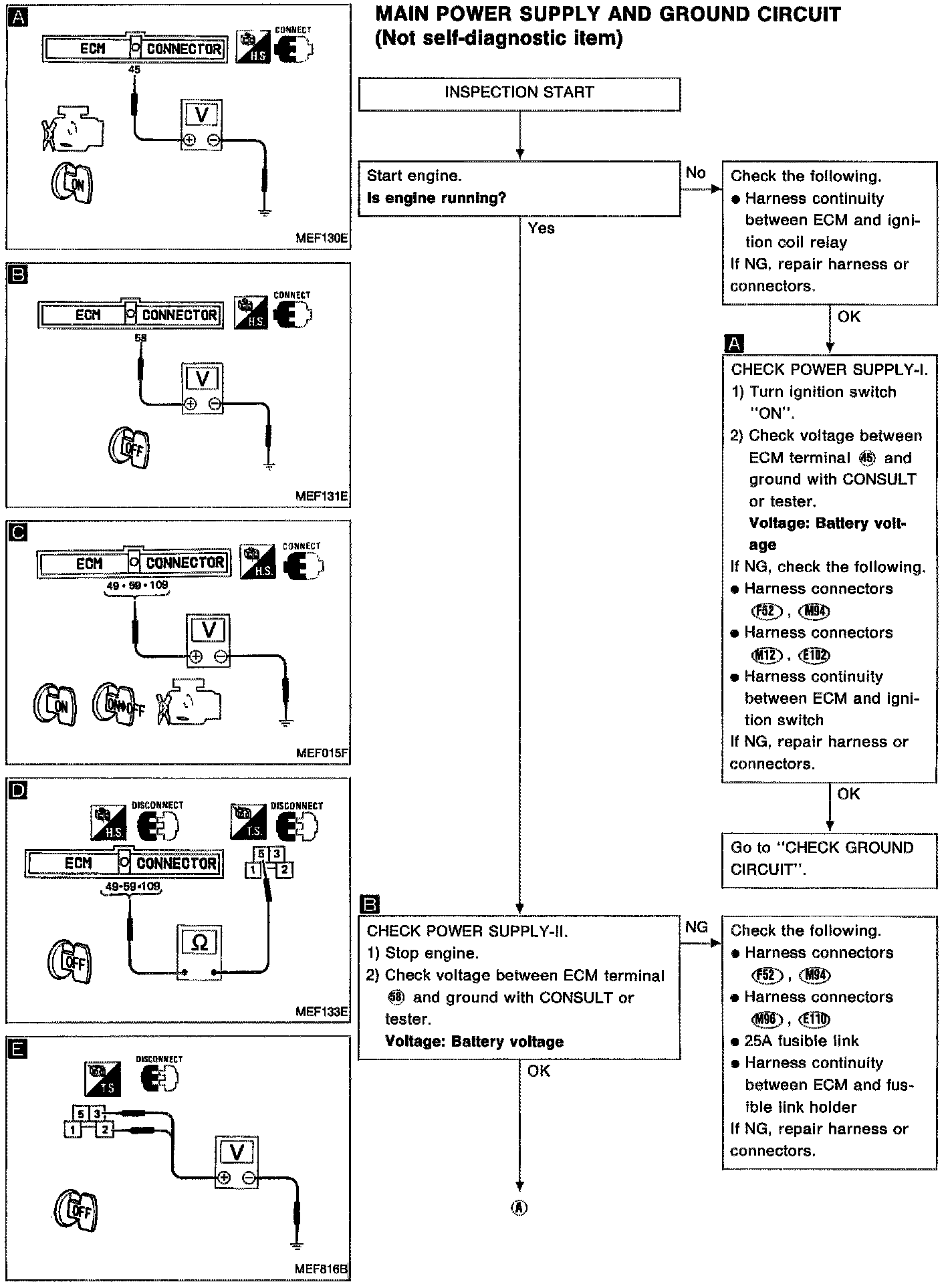

Main Power & Ground Non-DTC Chart:

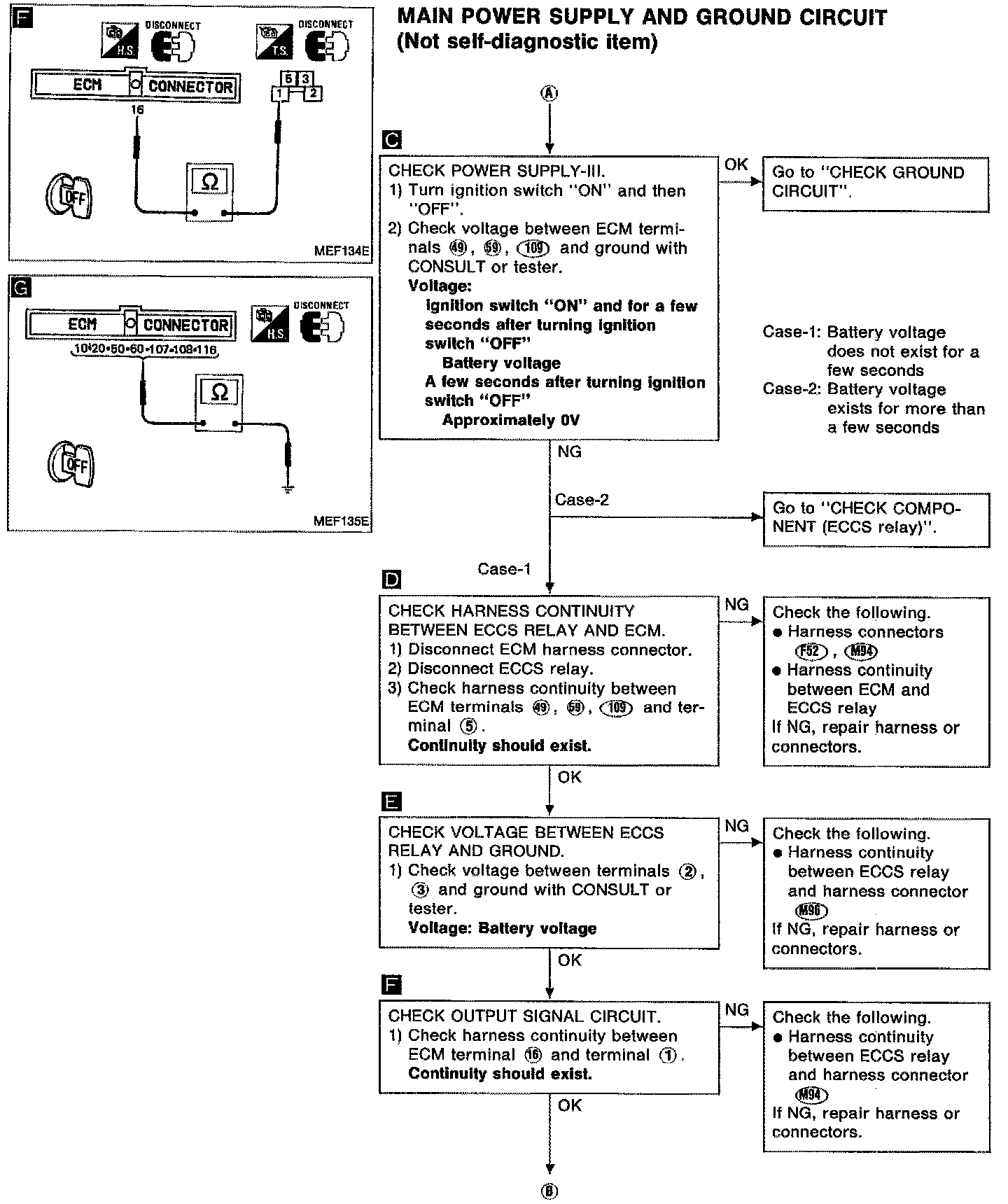

Main Power & Ground Non-DTC Chart:

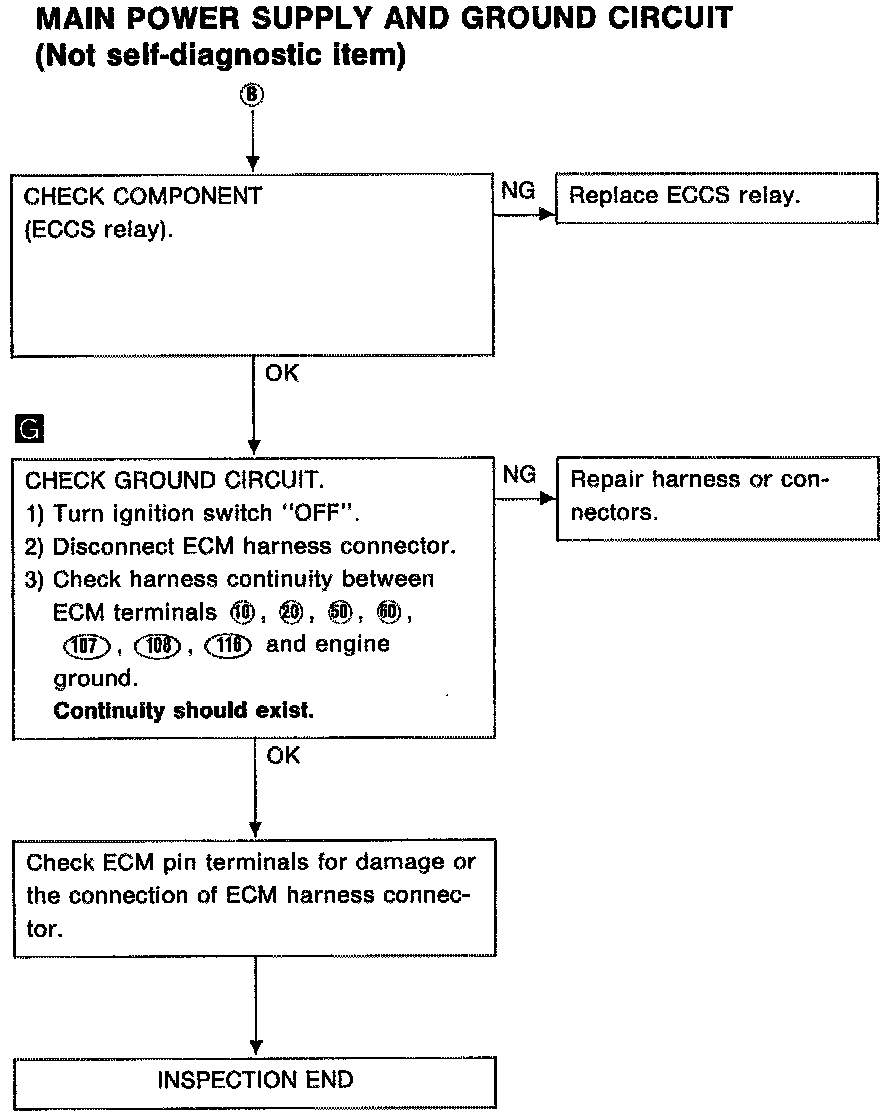

Main Power & Ground Non-DTC Chart:

DIAGNOSTIC CHART

67bMain Power Supply And Ground Circuit:

CIRCUIT DIAGRAM

ECM Harness Connector:

HARNESS LAYOUT
