Electrical Diagrams
Warning Lamps/Schematic:

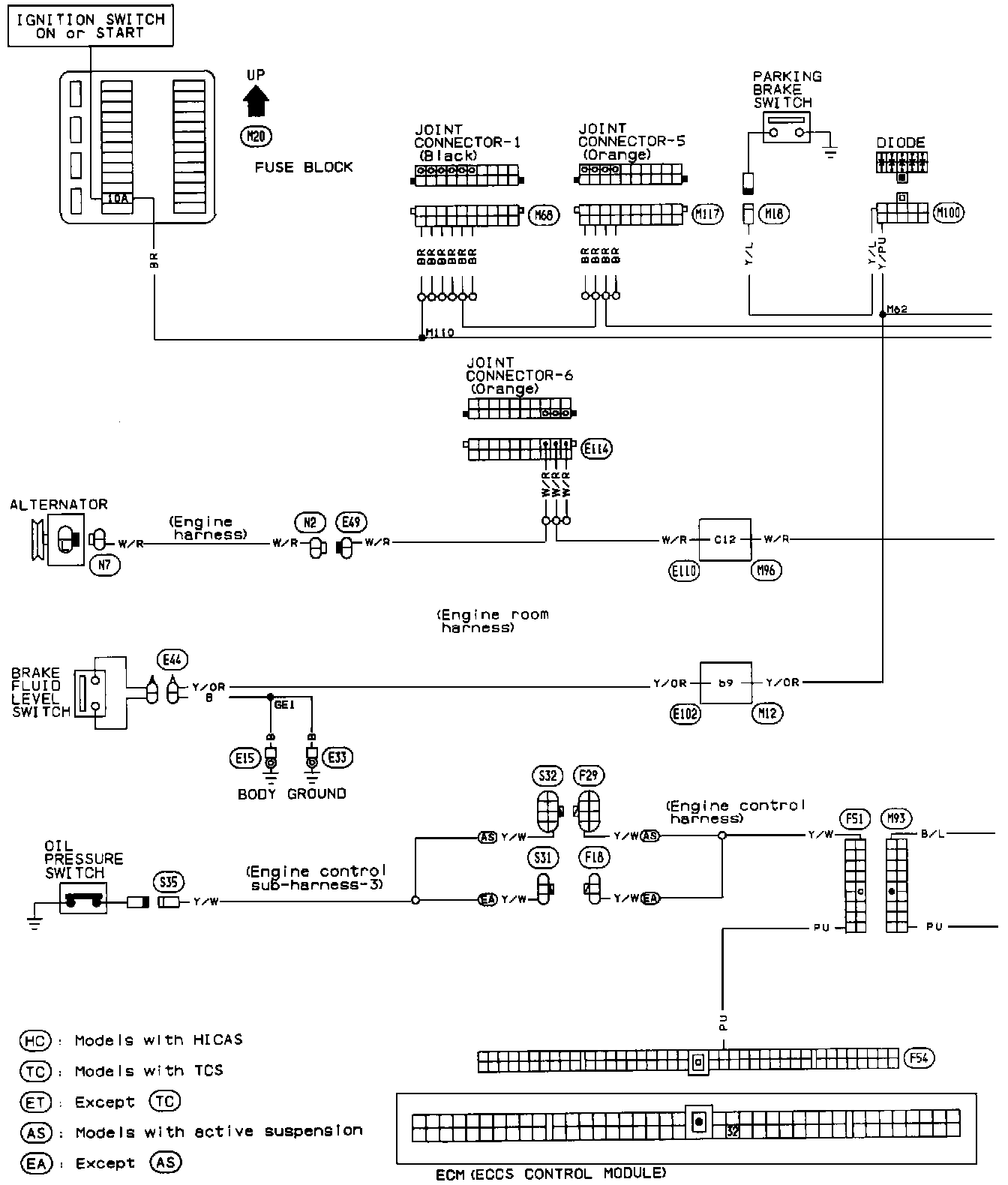

Warning Lamps/Wiring Diagram (Part 1 Of 2):

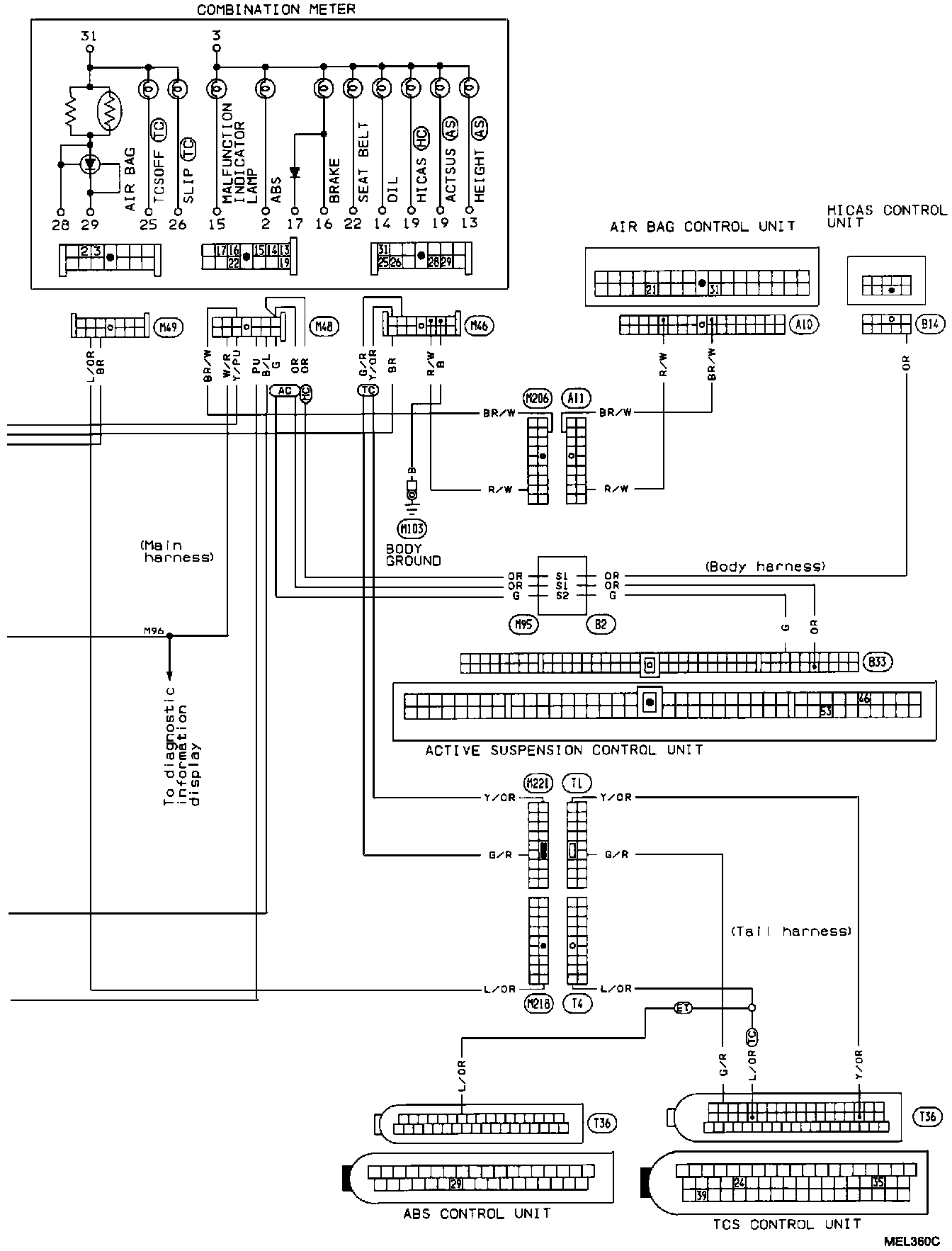

Warning Lamps/Wiring Diagram (Part 2 Of 2):
