Displaying & Reading Trouble Codes
>>
LAN Communication Check
LAN Communication Check

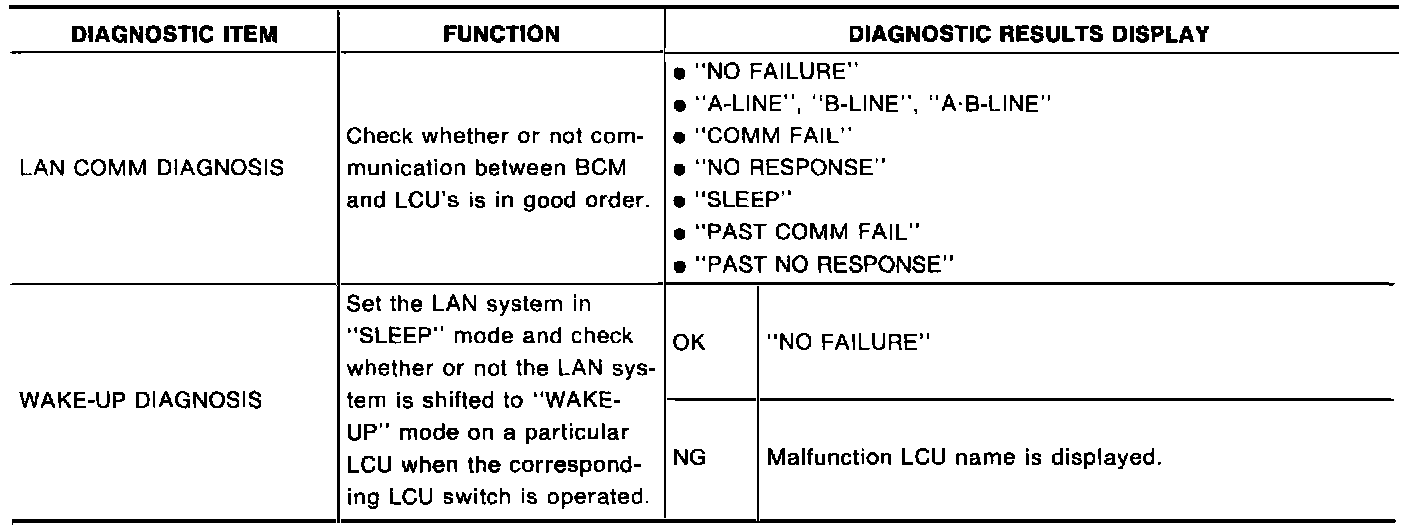

LAN Communication Check:

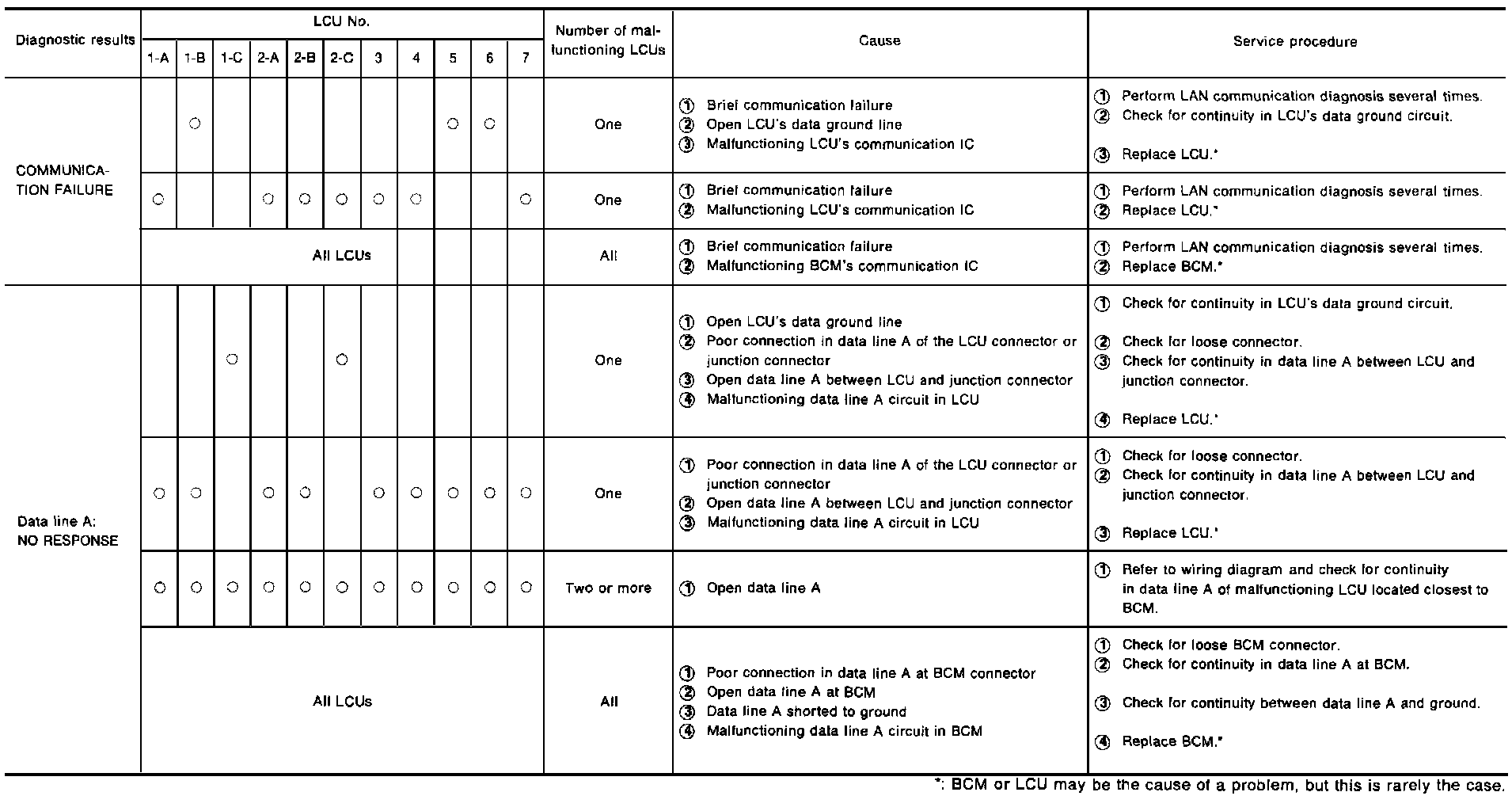

Diagnostic Procedure (Part 1 Of 2):

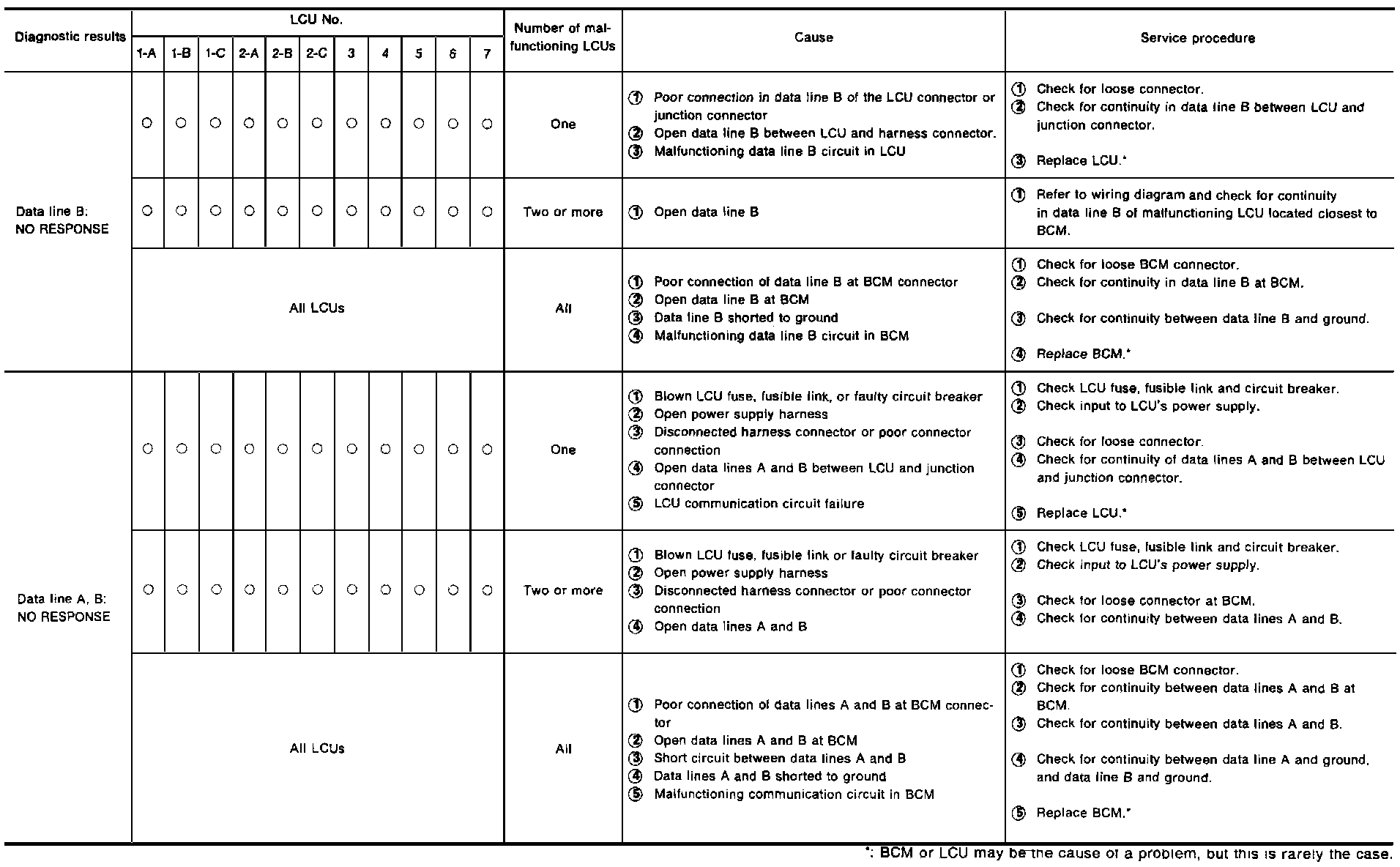

Diagnostic Procedure (Part 2 Of 2):

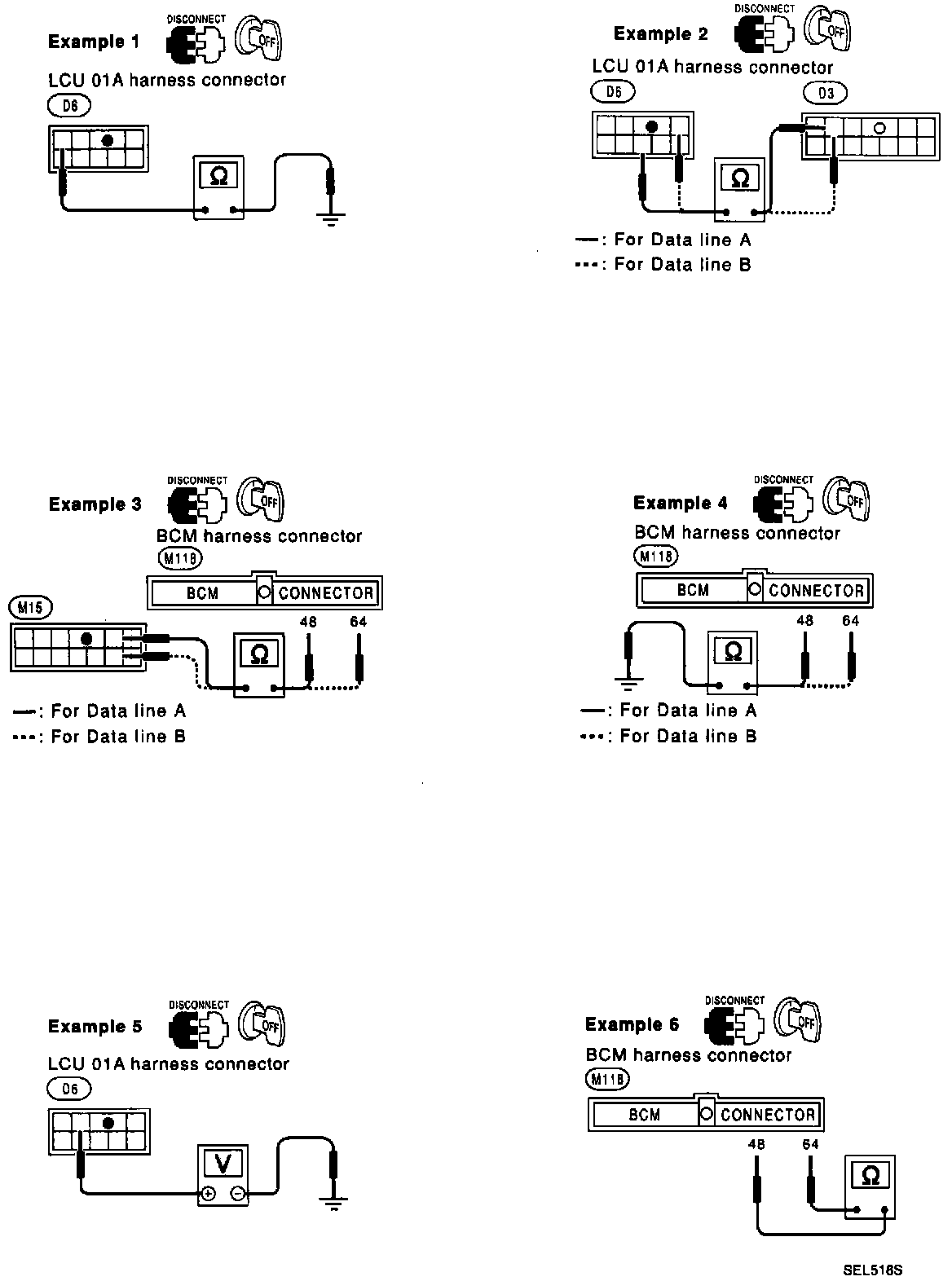

Examples:
