Description

Description:

In this mode, a malfunction code is indicated by the number of flashes from the interior lamp. each seat's step lamp and automatic drive positioner indicator lamps as shown below:

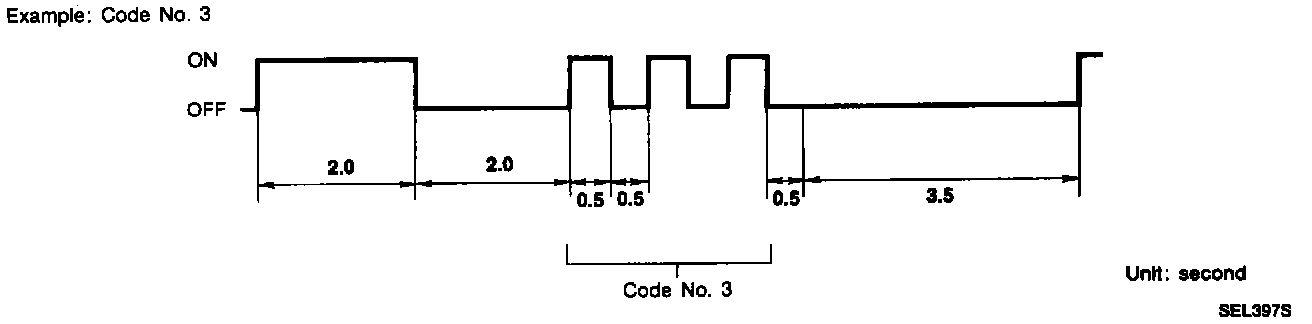

After indicator lamp turns ON for 2 seconds and then turns OFF, it flashes to indicate a malfunction code. For example, the indicator lamp goes on and off for 0.5 seconds three times. This indicates malfunction code "3".

The self-diagnostic results wilt remain in the BCM memory.
