Diagnostic Procedure

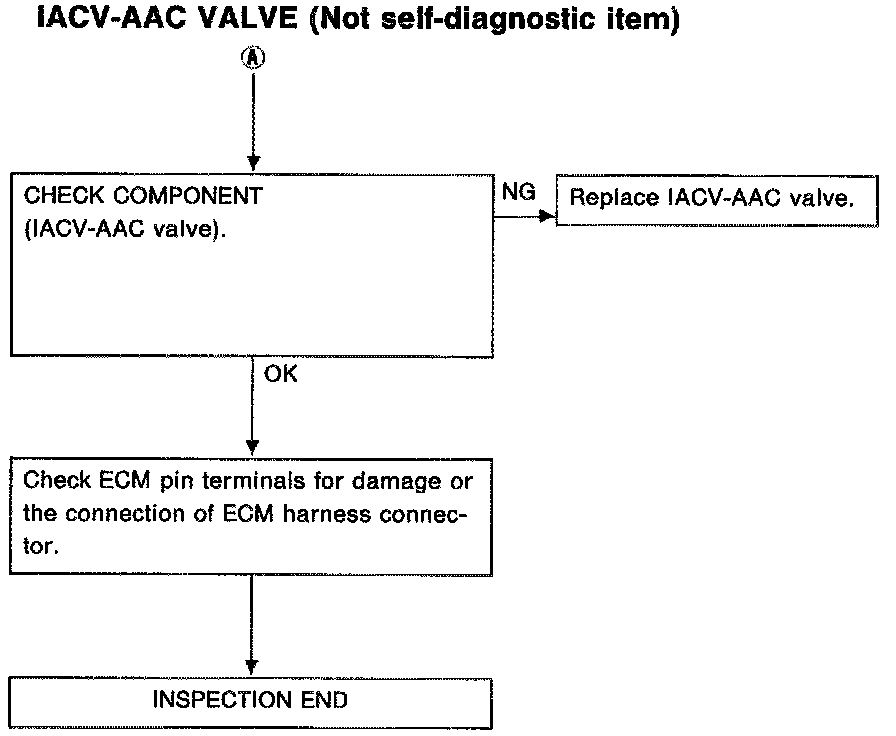

IACV-AAC Valve Non-DTC Chart:
IACV-AAC Valve Non-DTC Chart:

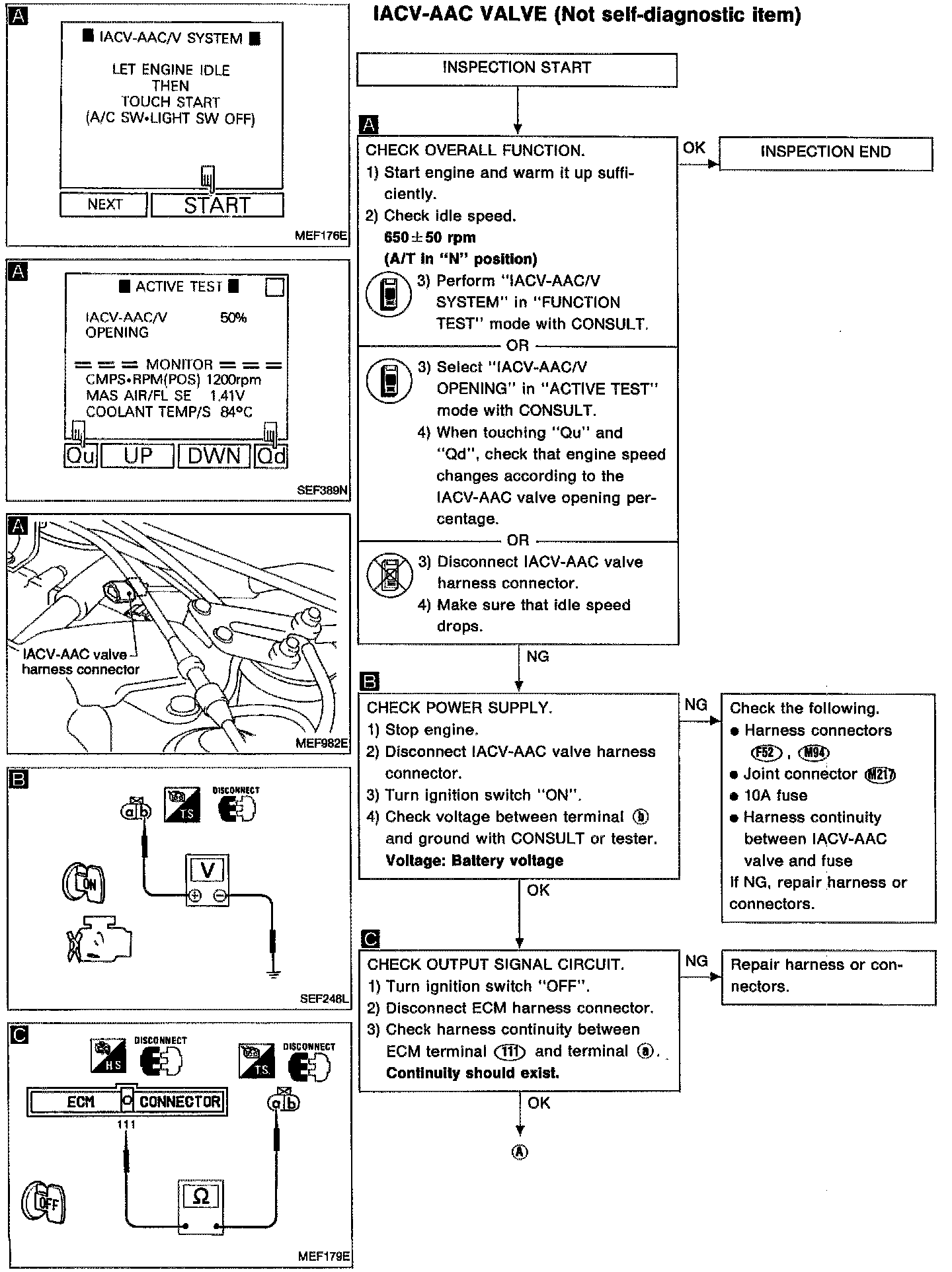

DIAGNOSTIC CHART
IACV-AAC Valve:

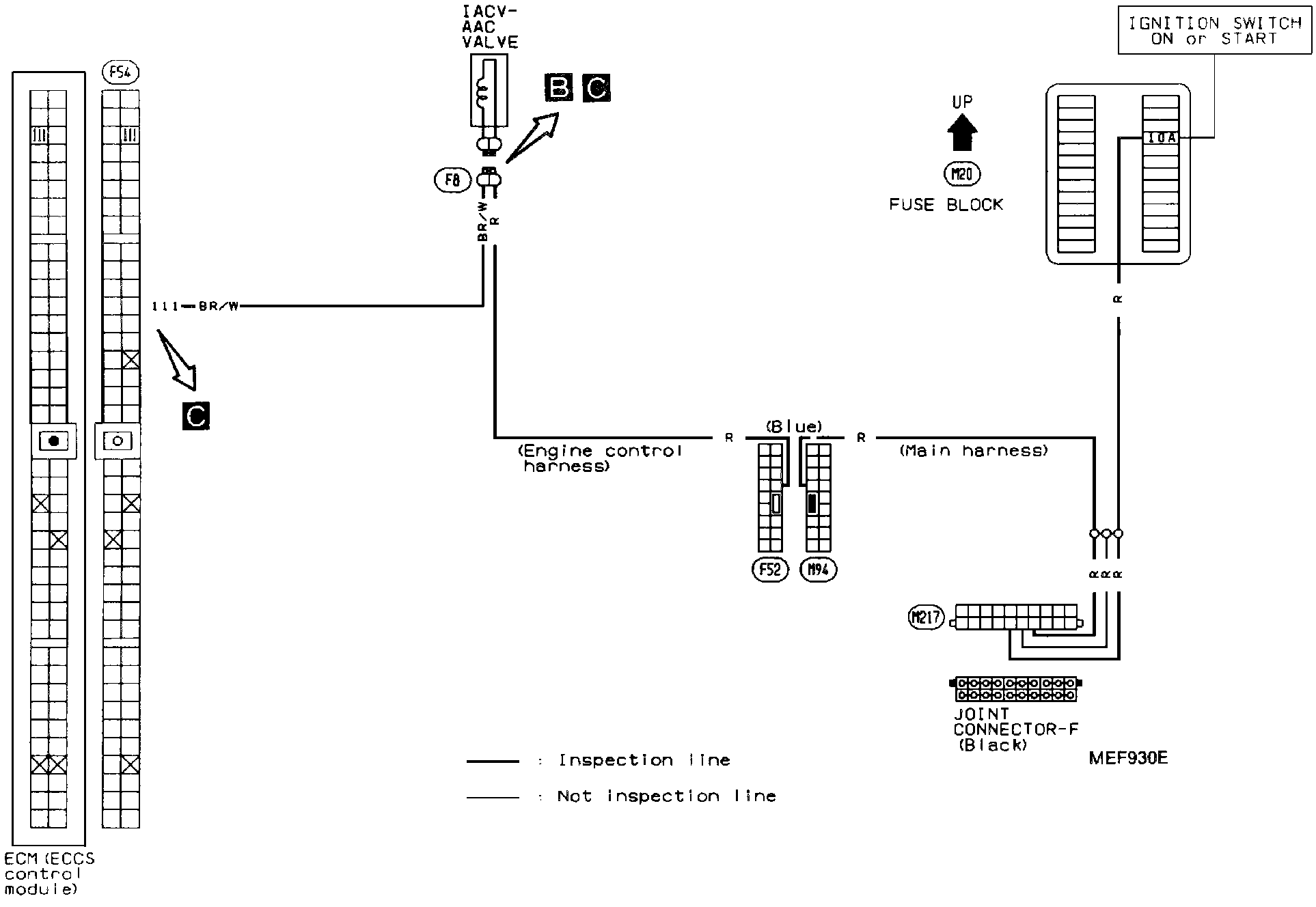

CIRCUIT DIAGRAM

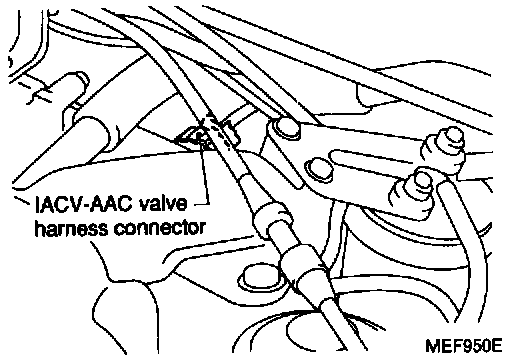

IACV-AAC Valve Harness Connector:
HARNESS LAYOUT
