Throttle Position Sensor Malfunction

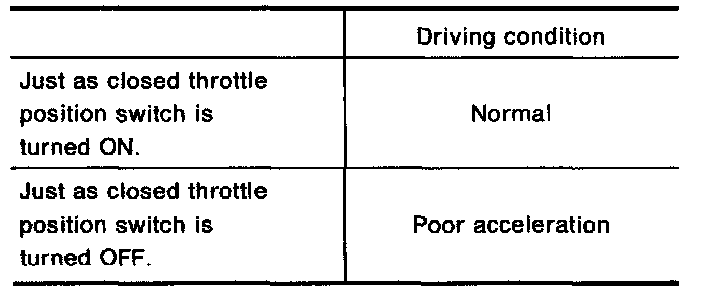

TPS Malfunction Table:

OPERATION
When the output signal of the throttle position sensor is abnormal, the ECCS Control Module (ECM) judges is as a malfunctioning of the throttle position sensor. The ECM does not use the throttle position sensor signal.

CANCELLATION
Activation of the fail-safe system is canceled each time the ignition switch is turned OFF. The system is reactivated if all of the activating conditions are satisfied after turning the ignition switch from OFF to ON.
