Engine Coolant Temperature Sensor Malfunction

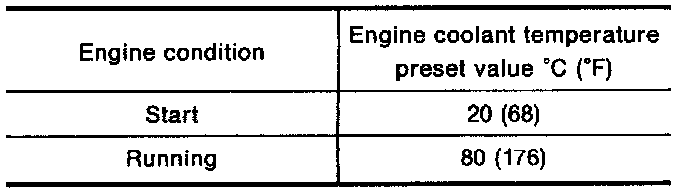

ECTS Malfunction Table:

OPERATION
When the engine coolant temperature sensor output voltage is below or above the specified value, engine coolant temperature is fixed at the preset value as indicated in the table.

CANCELLATION
Activation of the fail-safe system is canceled each time the ignition switch is turned OFF. The system is reactivated if all of the activating conditions are satisfied after turning the ignition switch from OFF to ON.
