Heated Oxygen Sensor Heater Control System

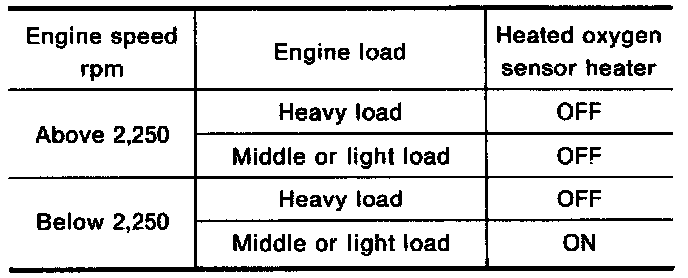

HO2S Operation Table:

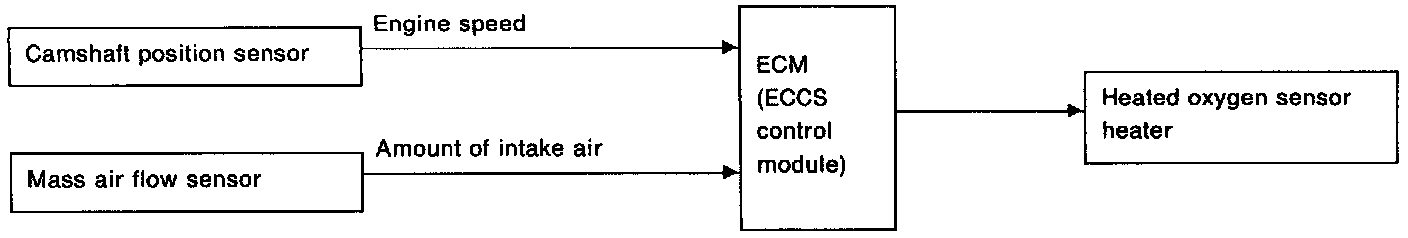

HO2S Input/Output Line:

OPERATION
The ECCS Control Module performs the ON/OFF control of the heated oxygen sensor heater corresponding to the engine speed and engine load.
