Diode Check

Diode Check:

^ Check continuity using an ohmmeter.

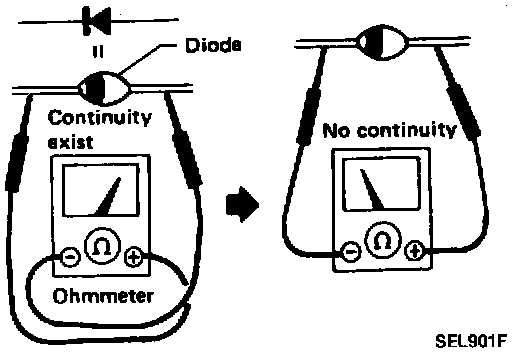

^ Diode is functioning properly if test results are as shown in the figure at left.
^ Diodes for warning lamps are built into the combination meter printed circuit.
