Drive Belt: Testing and Inspection

Checking Drive Belts
1. Inspect for cracks, fraying, wear or oil adhesion. If necessary, replace with a new one.

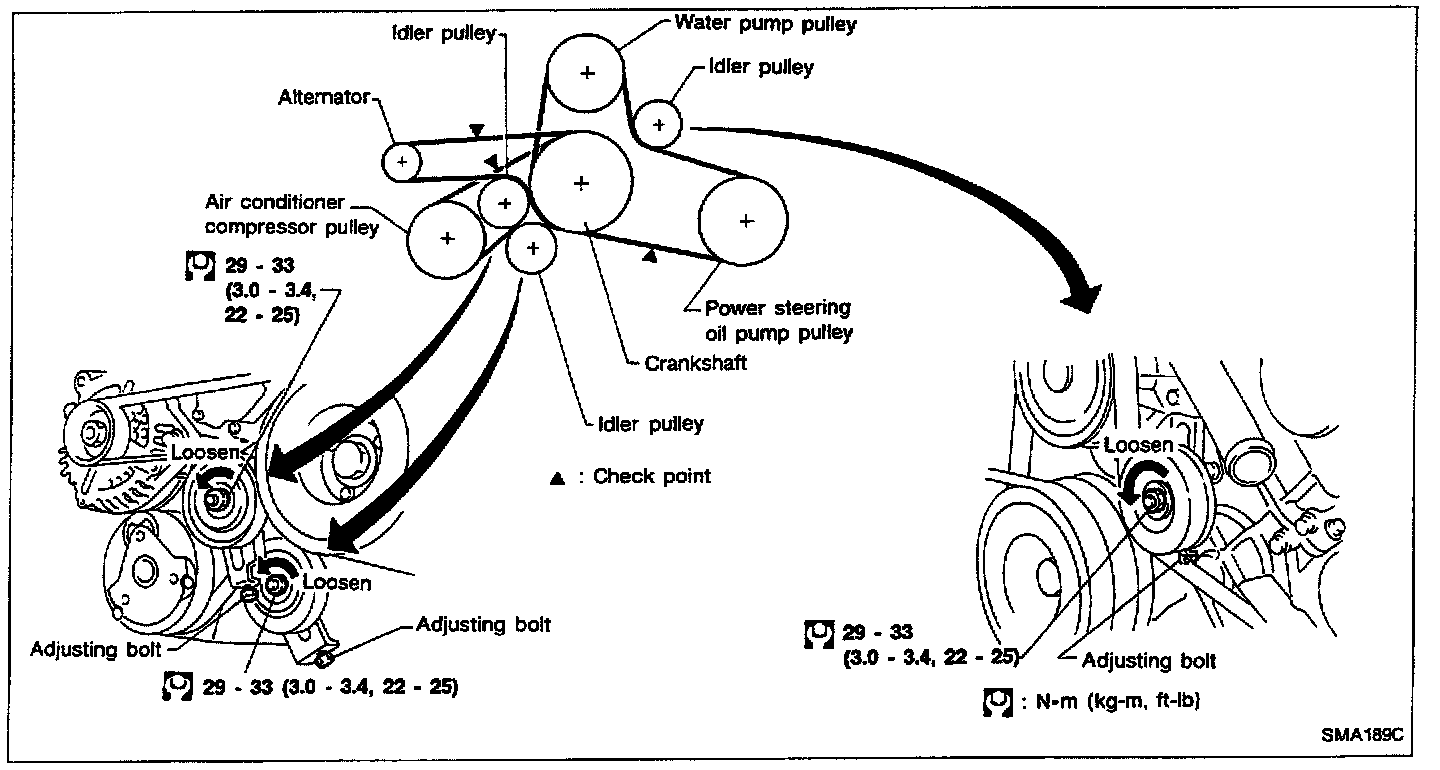

2. Inspect drive belt deflections by pushing on each check point between pulleys as shown above.

Adjust if belt deflections exceed the limit. Inspect drive belt deflections when engine is cold.
