Air Bleeding for TCS

CAUTION:
- Use new brake fluid "DOT 3" for TCS operating oil.
- Pay attention so as not to damage battery cable and hose for TCS during air bleeding.






- After bleeding air from TCS operating oil circuit, oil level in reservoir tank will be slightly lower. in such a case, do NOT add oil; it may cause oil leaks from reservoir tank.

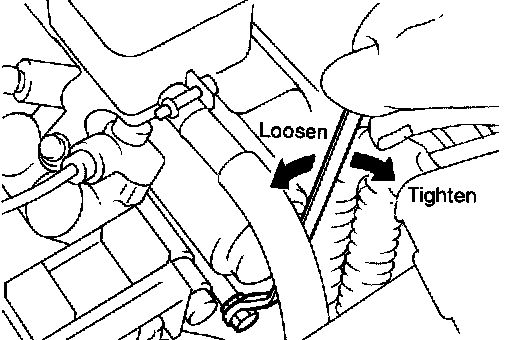

1. Loosen bleeder of TCS actuator.

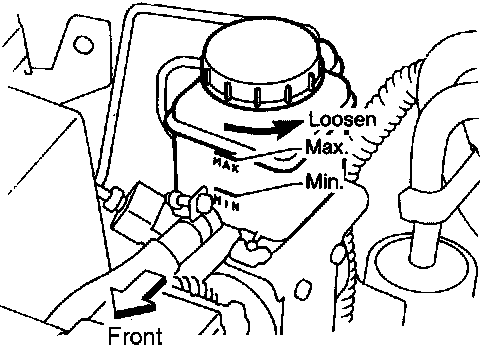

2. Refill oil up to MAX. on reservoir tank, but do not fasten cap.
3. Start engine. (at this time, TCS pump operates.)
4. Tighten bleeder.by nearly specified torque, and 3 to 5 seconds later (TCS pump has stopped), stop engine.
5. Start engine again and loosen bleeder. At this time, watch oil in reservoir tank.
6. Repeat steps 4 and 5 until oil returning to reservoir tank does not contain air bubbles.
7. Tighten bleeder to specified torque: 12.0 - 15.9 N.m (1.22-1.62 kg-m, 8.8 - 11.7 if-lb)
