Valve Timing Control Circuit

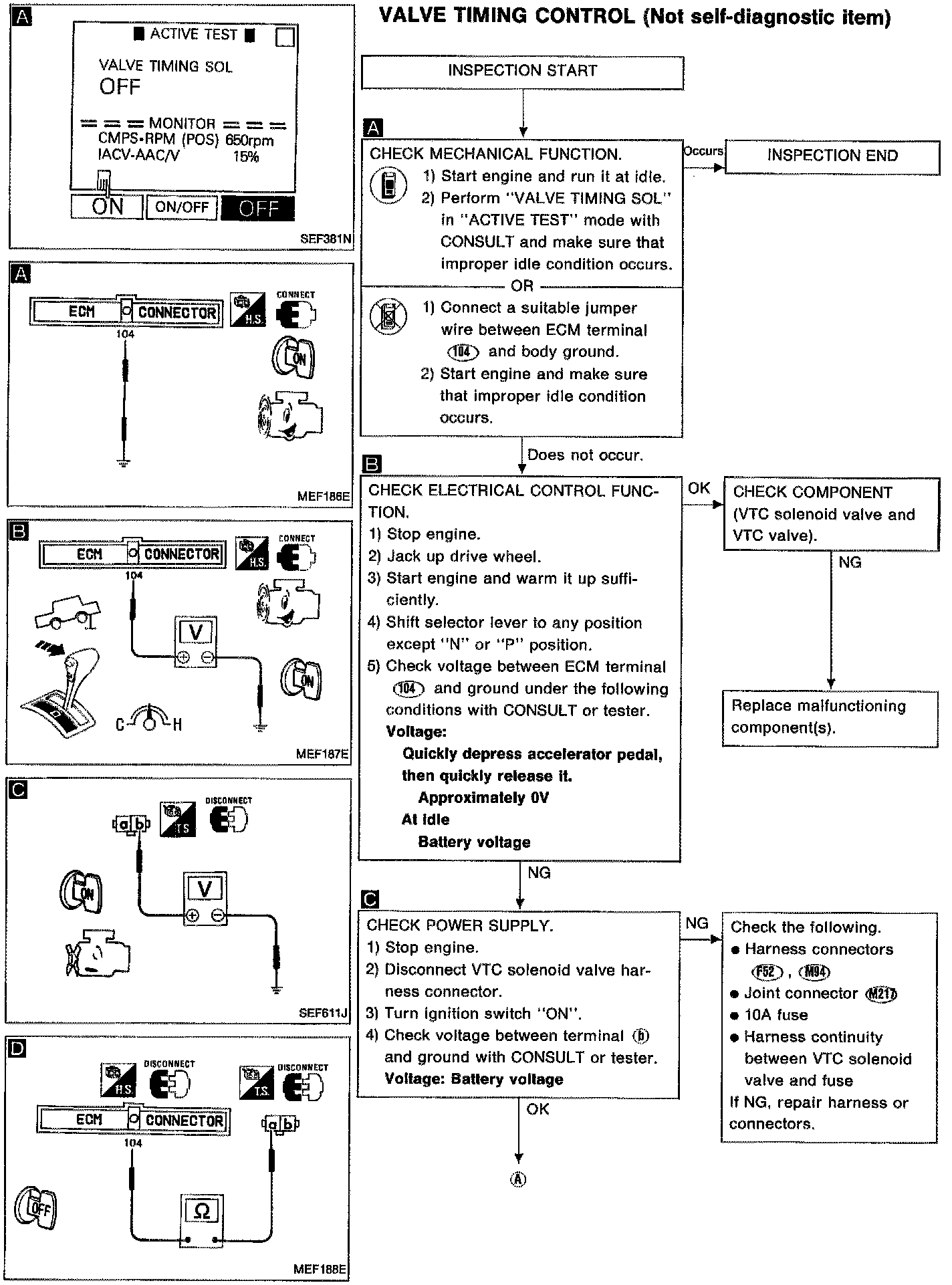

VTC Non-DTC Chart:




VTC Non-DTC Chart:

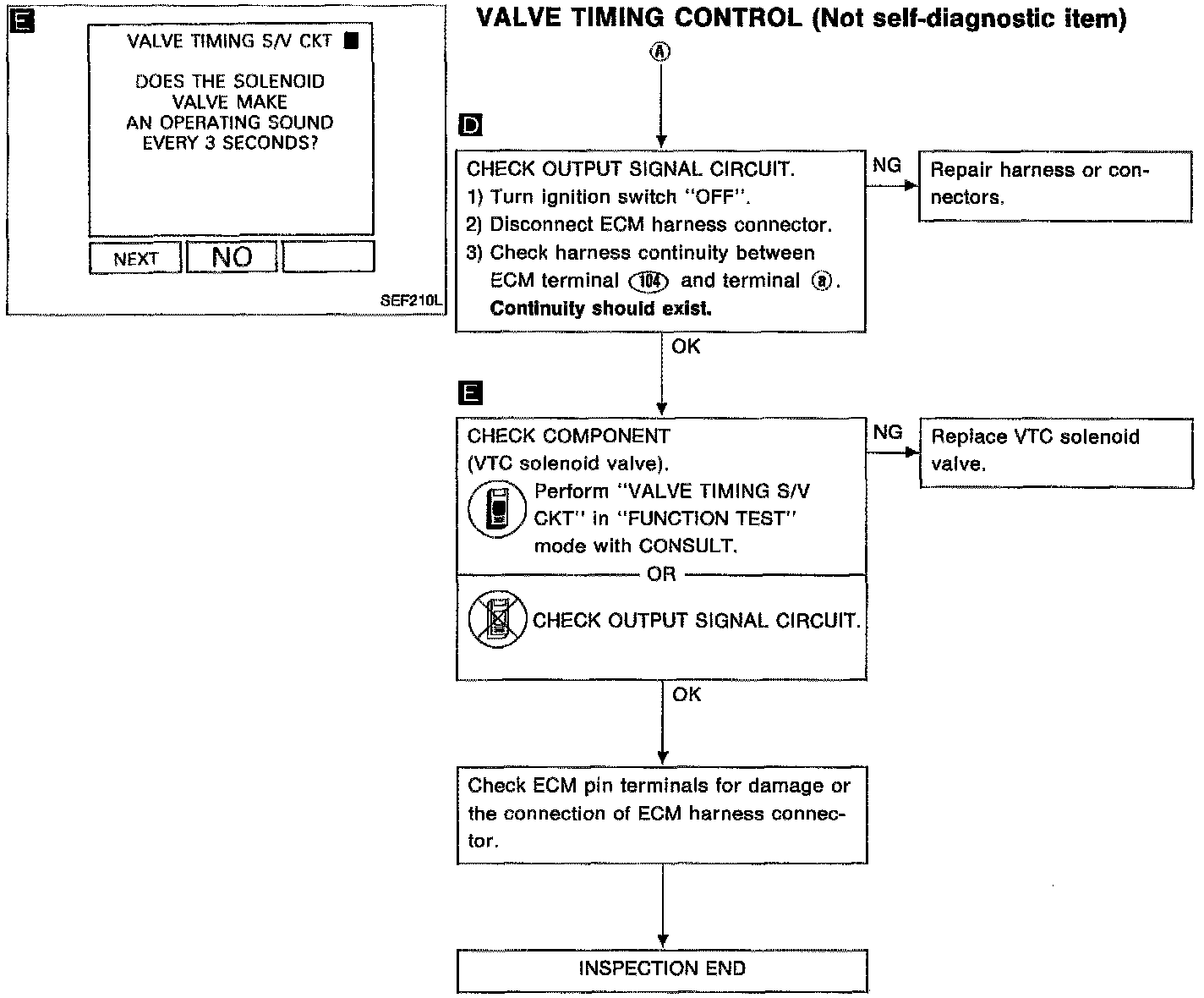

DIAGNOSTIC CHART

Valve Timing Control:

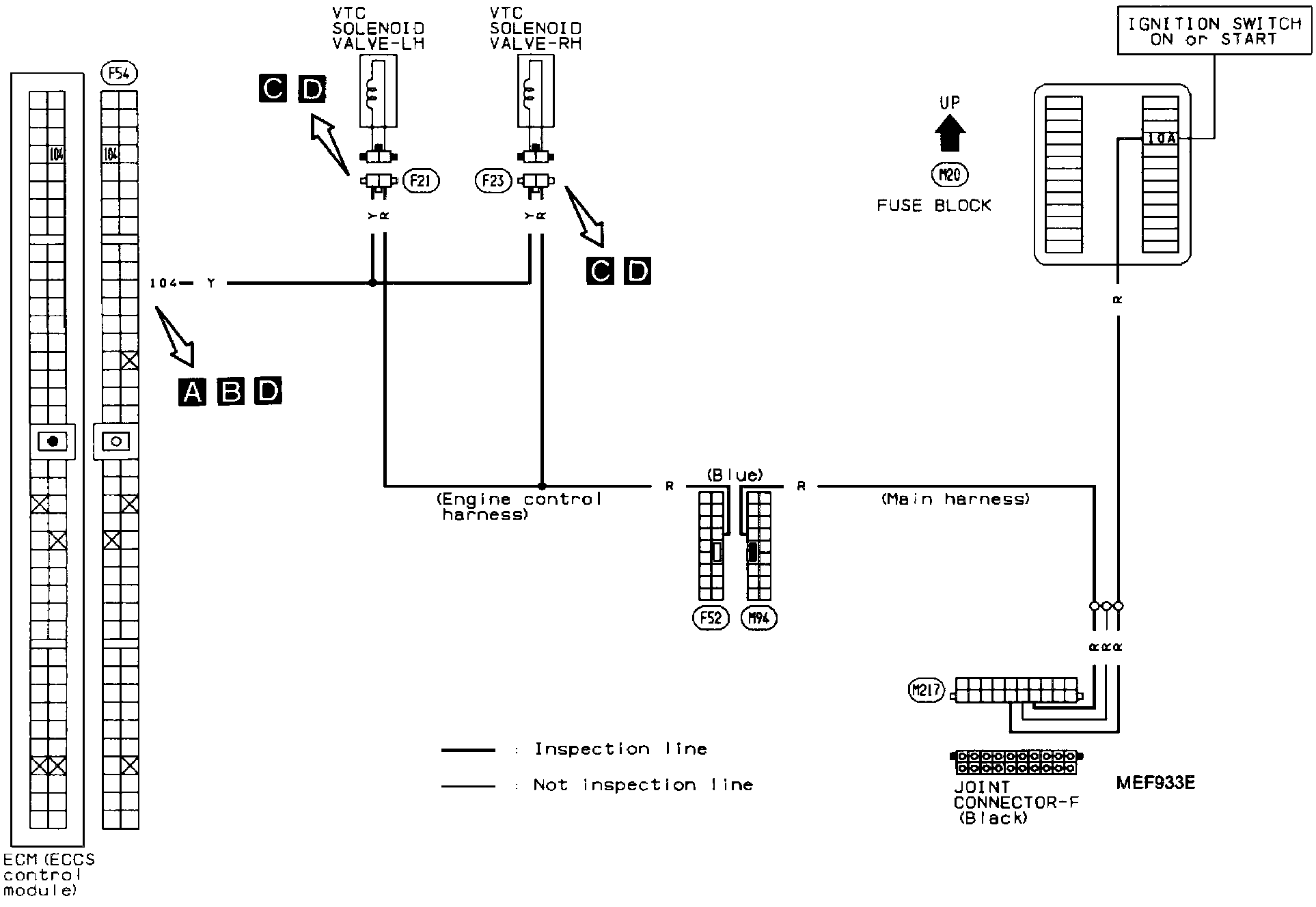

CIRCUIT DIAGRAM

VTC Solenoid Valve Harness Connector For Right Bank:

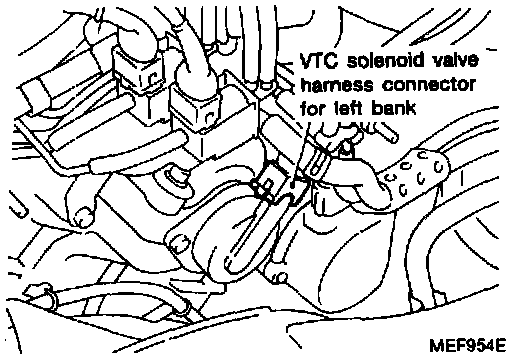

VTC Solenoid Valve Harness Connector For Left Bank:




HARNESS LAYOUT
