Position For Applying Liquid Gasket

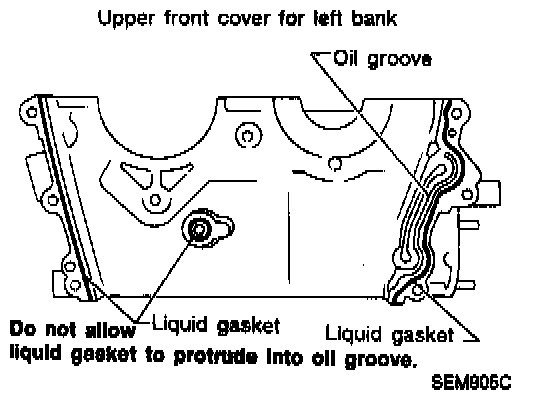

Upper Front Cover For Left Bank:

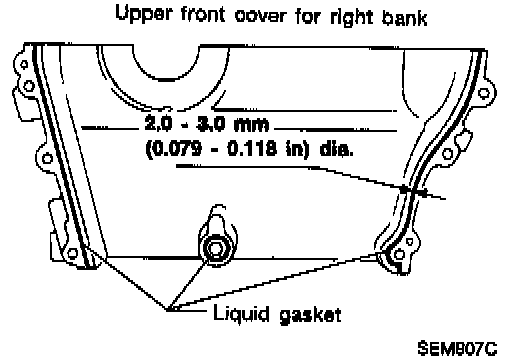

Upper Front Cover For Right Bank:

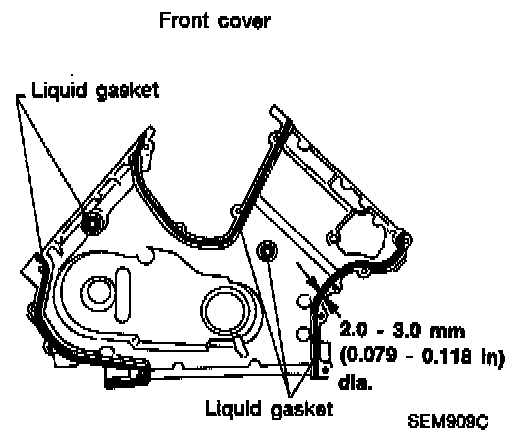

Front Cover:

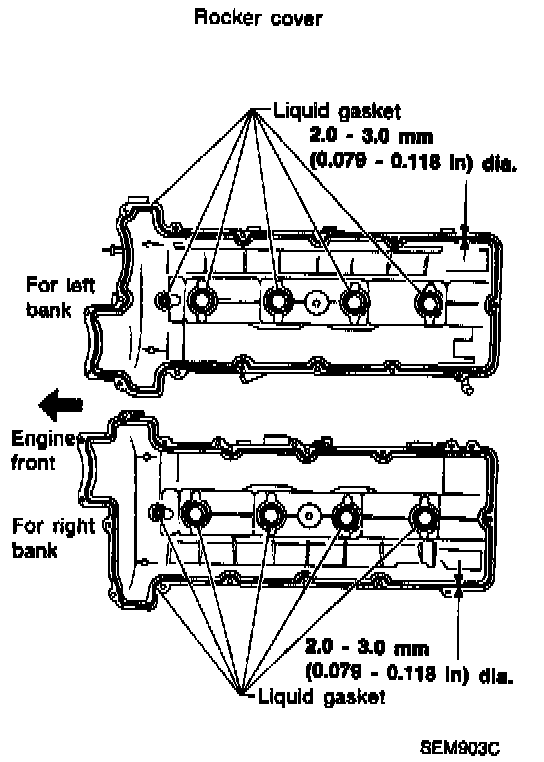

Rocker Cover:

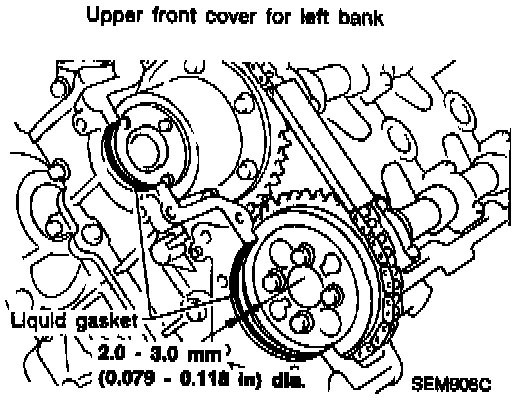

Upper Front Cover For Left Bank:

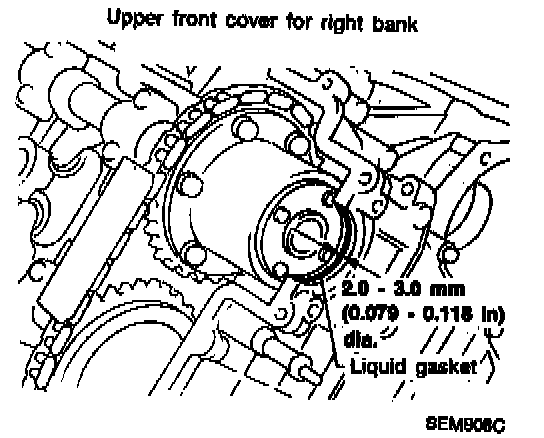

Upper Front Cover For Right Bank:

Chain Tensioner For Right Bank:
