Main Bearing Cap - Removal Tools

Classification: EM94-004
Section: Engine Mechanical
Models: 1990-94 Q45

Reference:
TECHNICAL BULLETIN ITB94-063

Date:
December 22, 1994

VH45DE MAIN BEARING CAP REMOVAL TOOL

SERVICE INFORMATION

Main Bearing Cap:

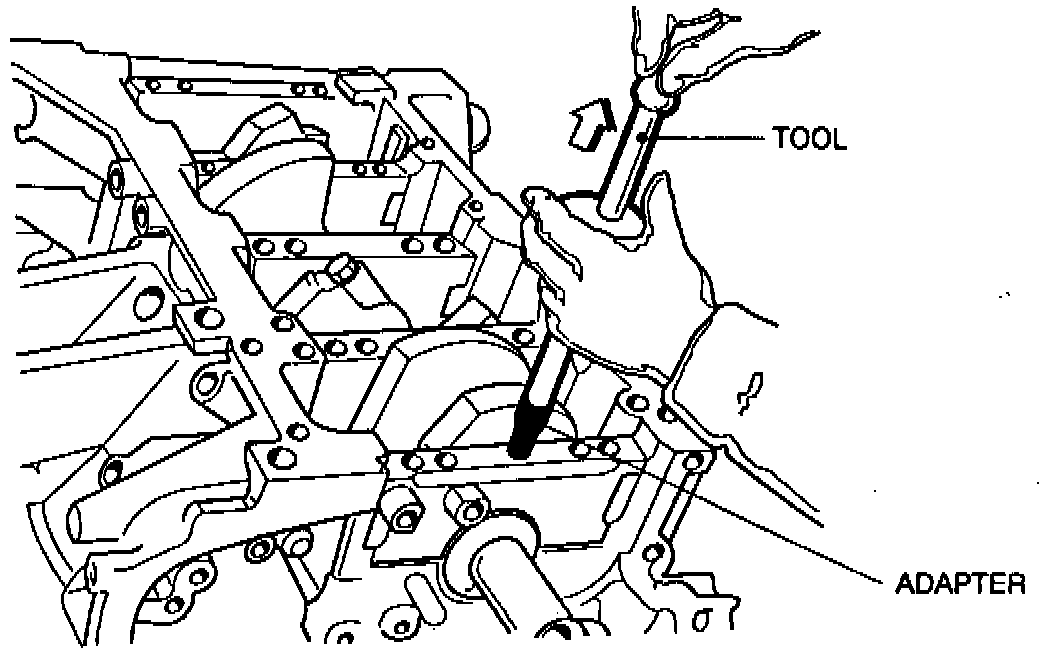

Two special service tools are available to assist in the removal of the main bearing cap in all Q45's. They are J6125-1B Slide Hammer and J38139-1 Slide Hammer Adapter (8 mm x 1.25 pitch). Refer to the illustration for proper usage. Both tools can be ordered from Kent Moore by calling 800-345-2233.

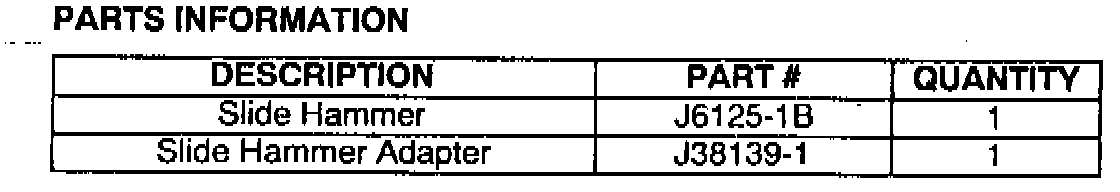

Parts Information
