Infiniti
>>
1994
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

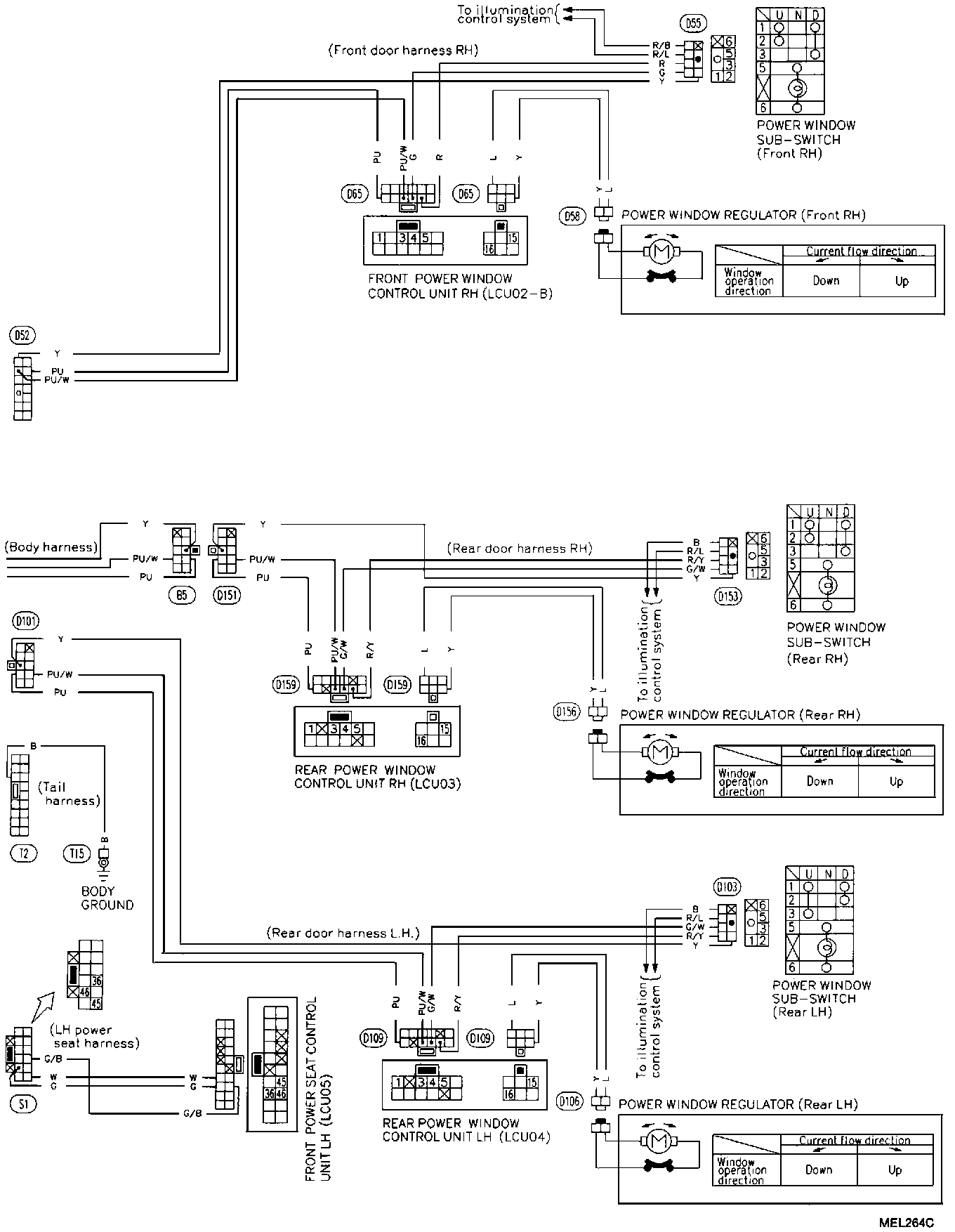

Wiring Diagram (Part 1 Of 2):

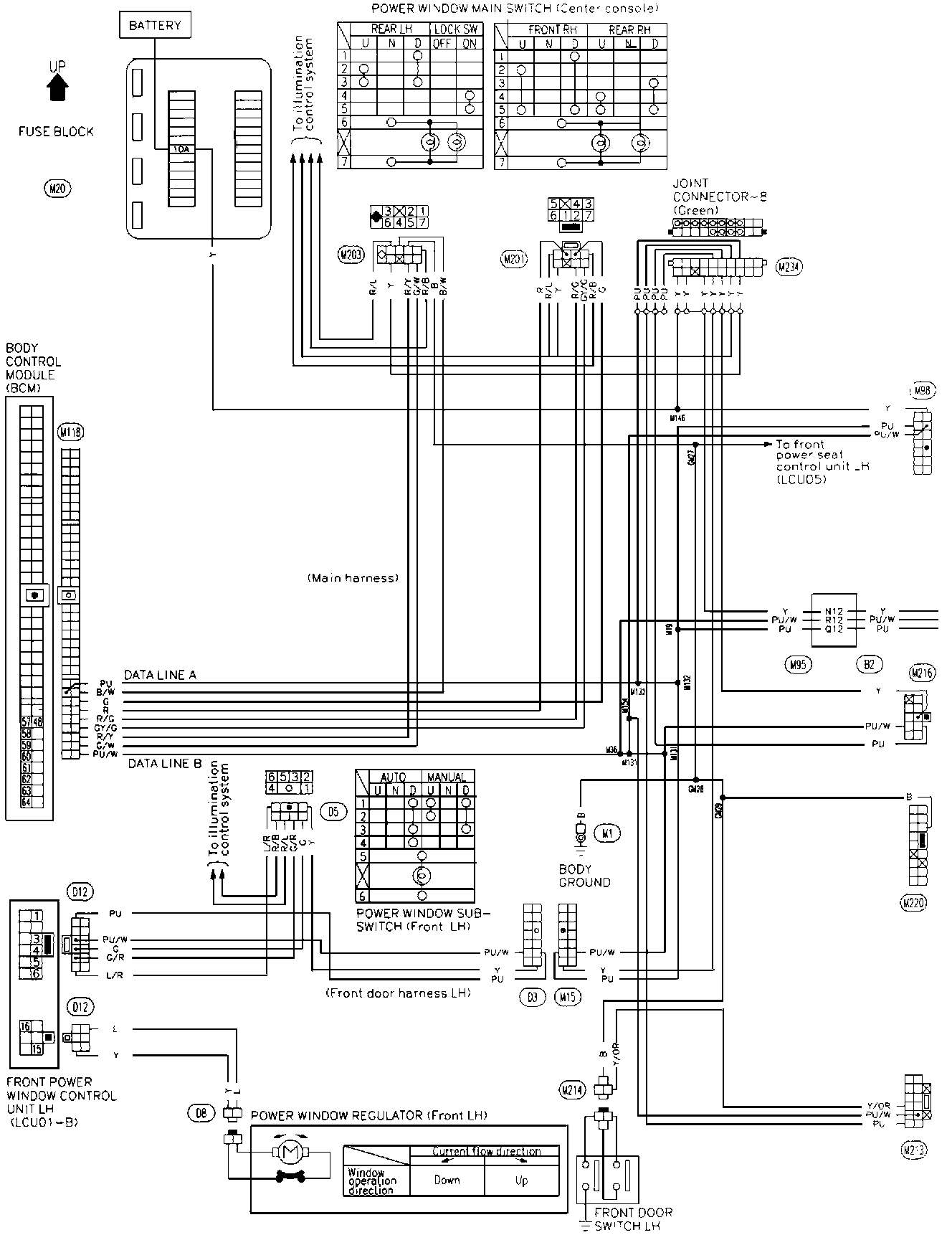

Wiring Diagram (Part 2 Of 2):
