Circuit Diagram For Quick Pinpoint Check

ANTI-LOCK BRAKE:

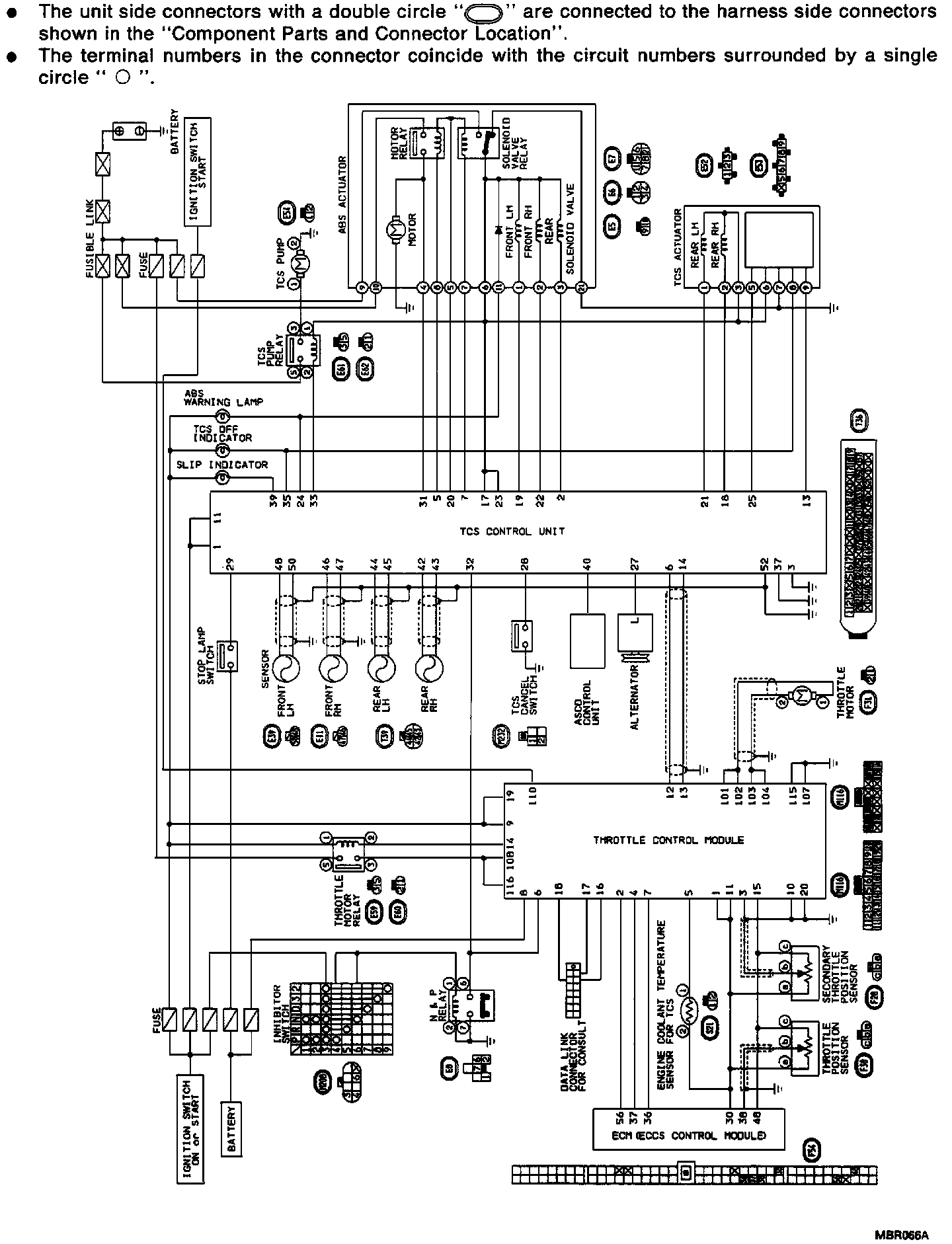

Circuit Diagram For Quick Pinpoint Check, Traction Control:
