Infiniti
>>
1994
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Theft Warning System (LAN)
Theft Warning System (LAN)

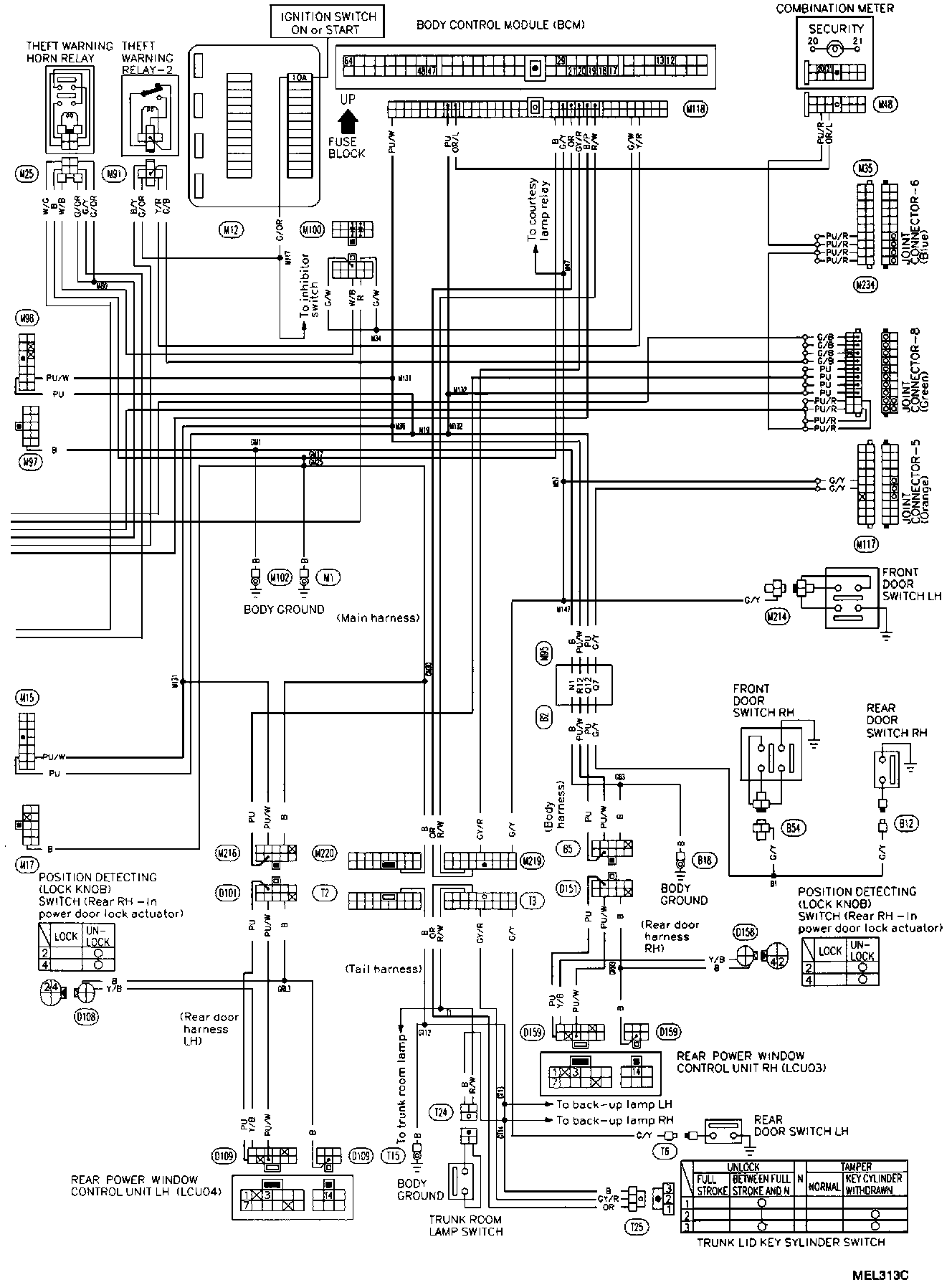

Theft Warning System: LAN (Part 1 Of 2):
Theft Warning System: LAN (Part 2 Of 2):
