Infiniti
>>
1994
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension
Suspension

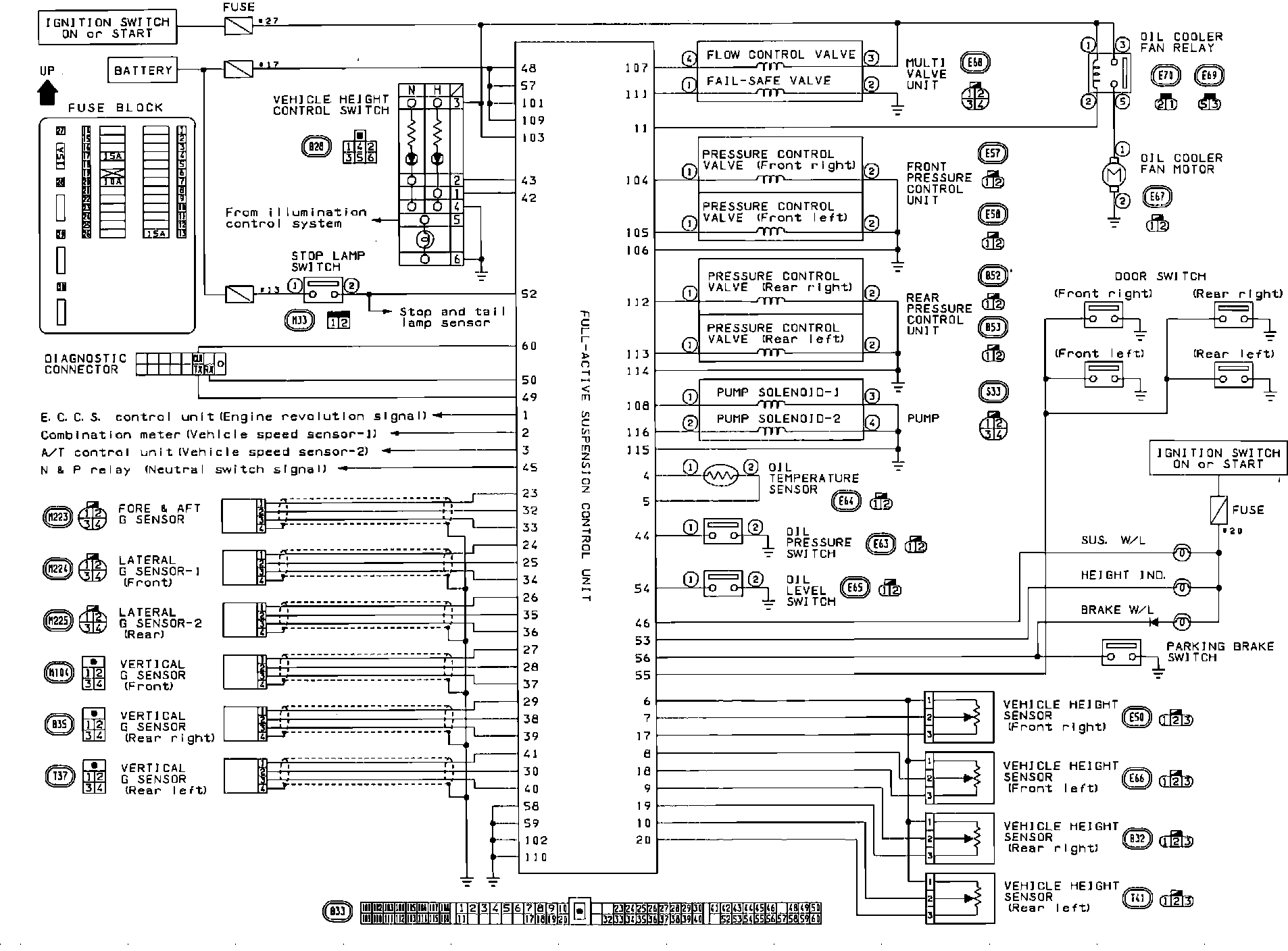

Fig. 20 Active Suspension Circuit Diagram:
