Brake Pad Wear Sensor: Testing and Inspection
Brake Sensor Diagnosis:

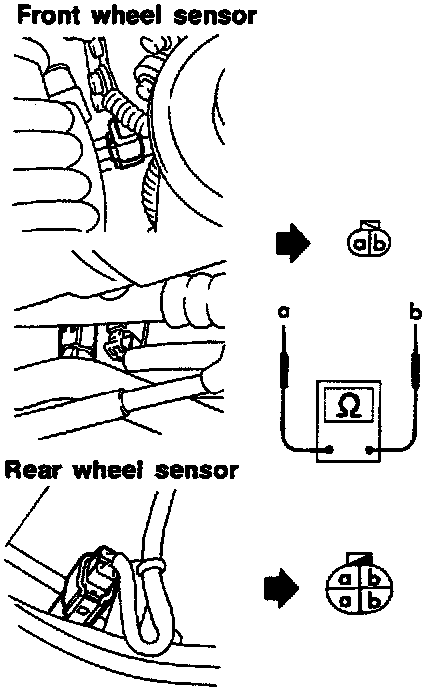

WHEEL SENSOR
Check resistance between terminals a and b.
Resistance:
900 - 1100 Ohms
