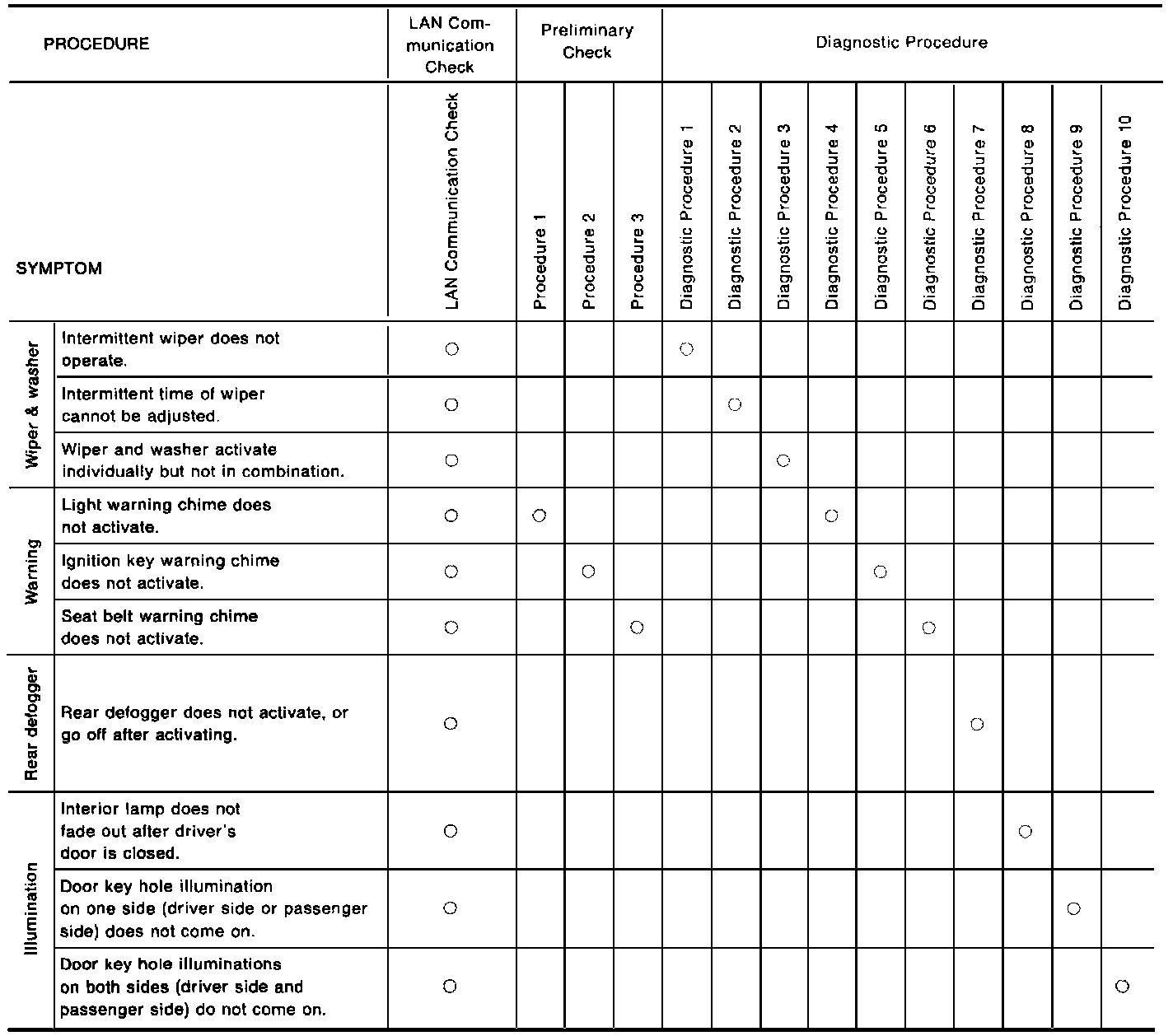

Symptom Chart

Symptom Chart:

^ Perform "LAN Communication Check" and Preliminary Check before starting with the Diagnostic Procedures.
* Each switch operation can also be checked by ON-BOARD instead of CONSULT or TESTER in each of the Diagnostic Procedures.
