Turbine Revolution Sensor







TURBINE REVOLUTION SENSOR

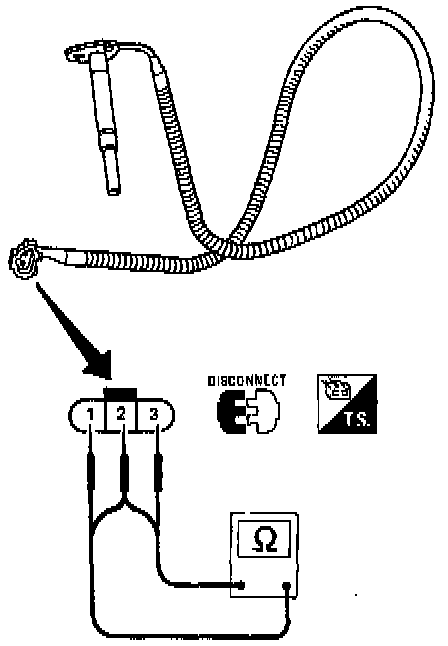

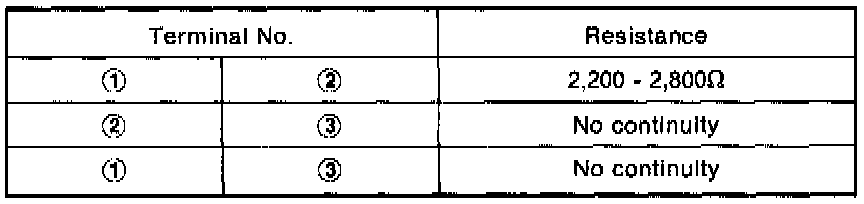

- Check resistance between terminals (1), (2) and (3).
