How to Read Relay Diagrams

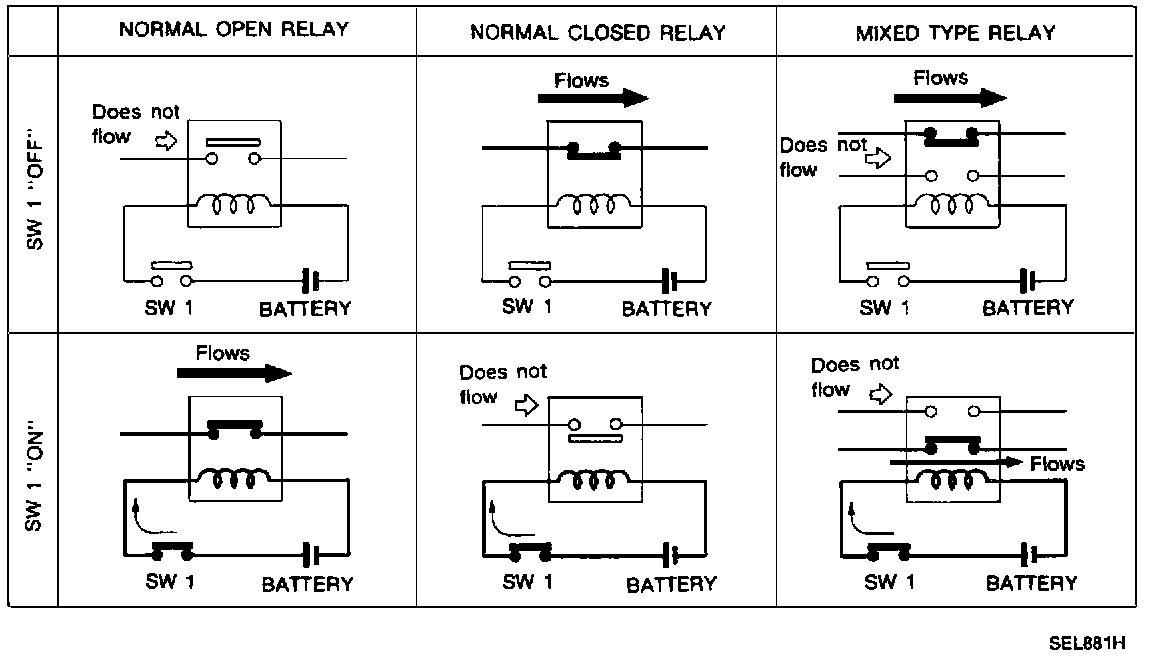

Normal Open, Normal Closed And Mixed Type Relays:




NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

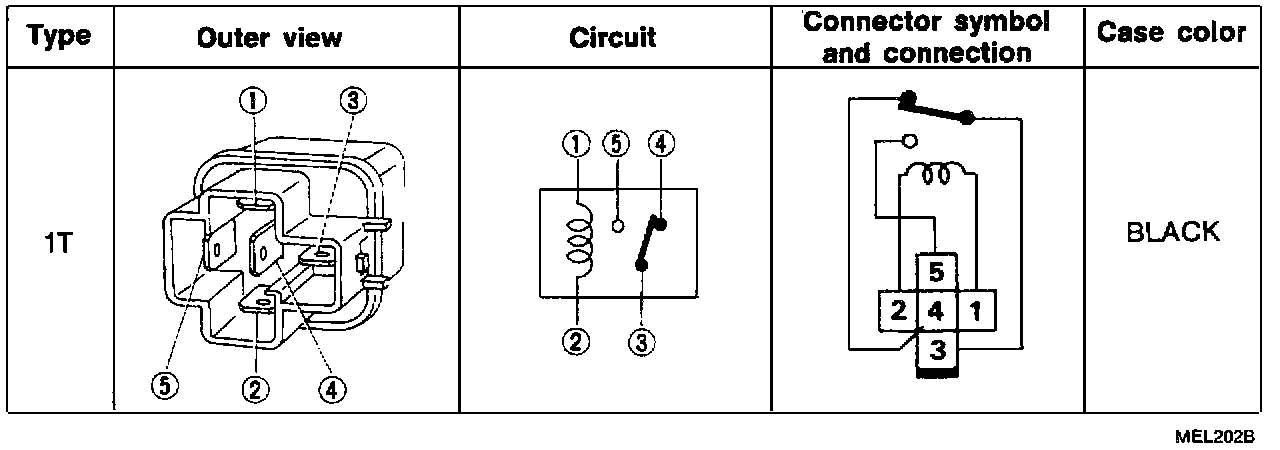

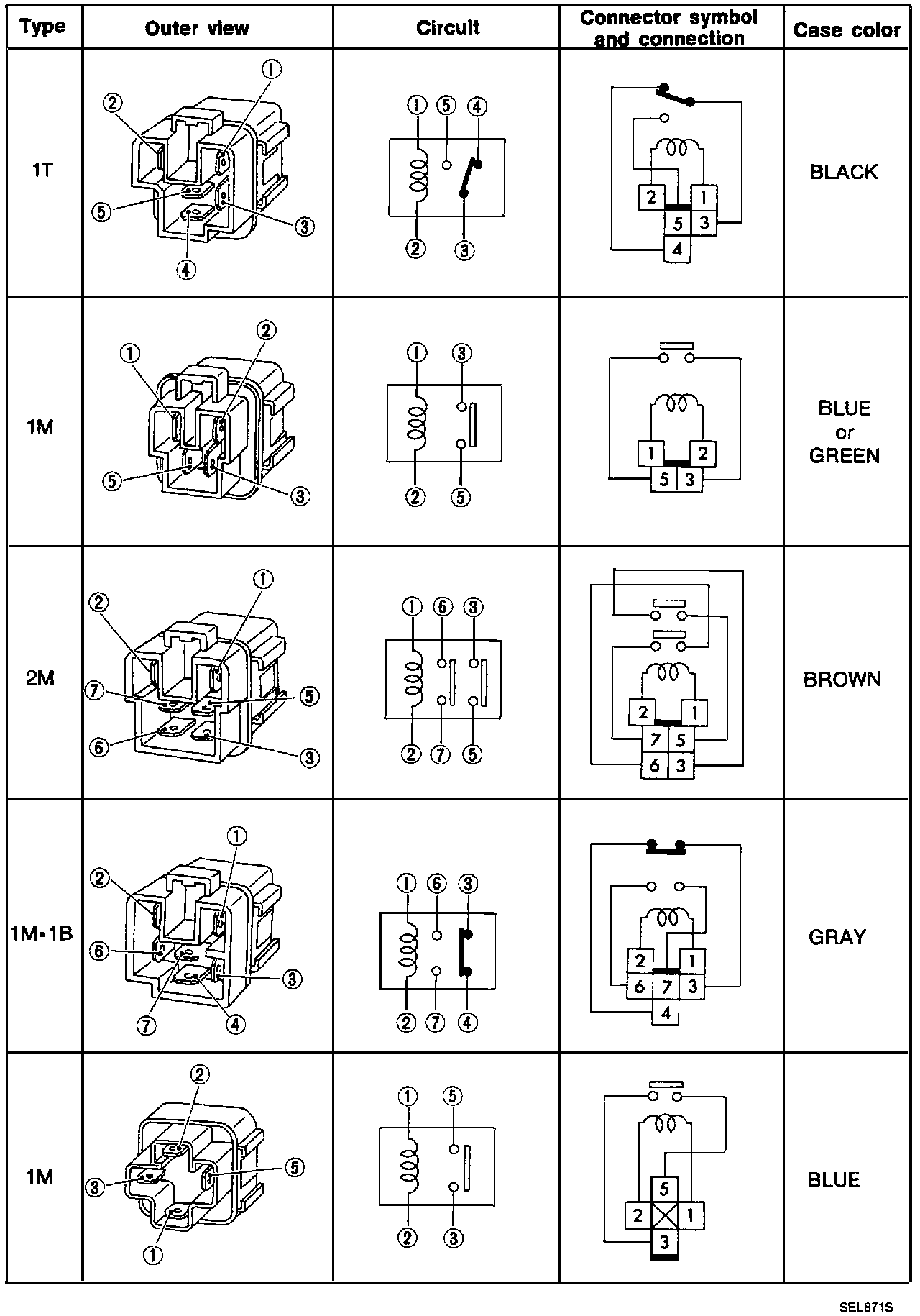

Types Of Standardized Relays:




Standardized Relay : Description:




Standardized Relay : Description:

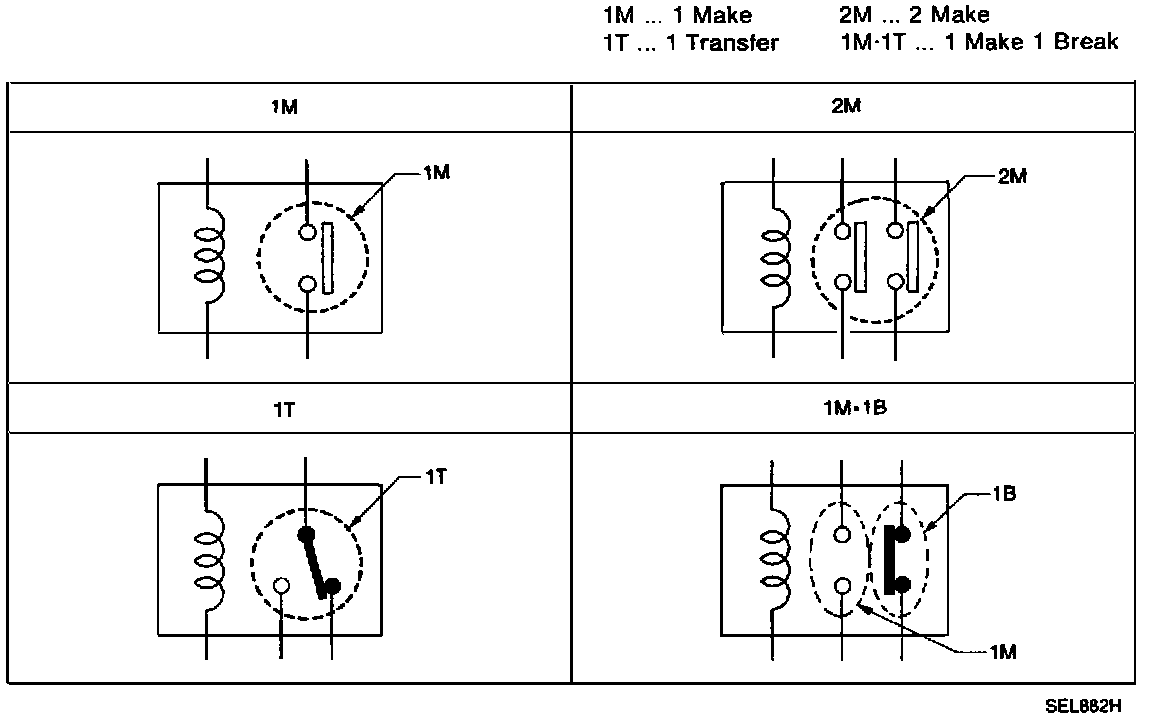

TYPE OF STANDARDIZED RELAYS
