EGR Control Solenoid Valve Circuit
EGR Control Solenoid Valve Circuit
EGR Control (Not Self-Diagnostic Item):
EGR Control (Not Self-Diagnostic Item):

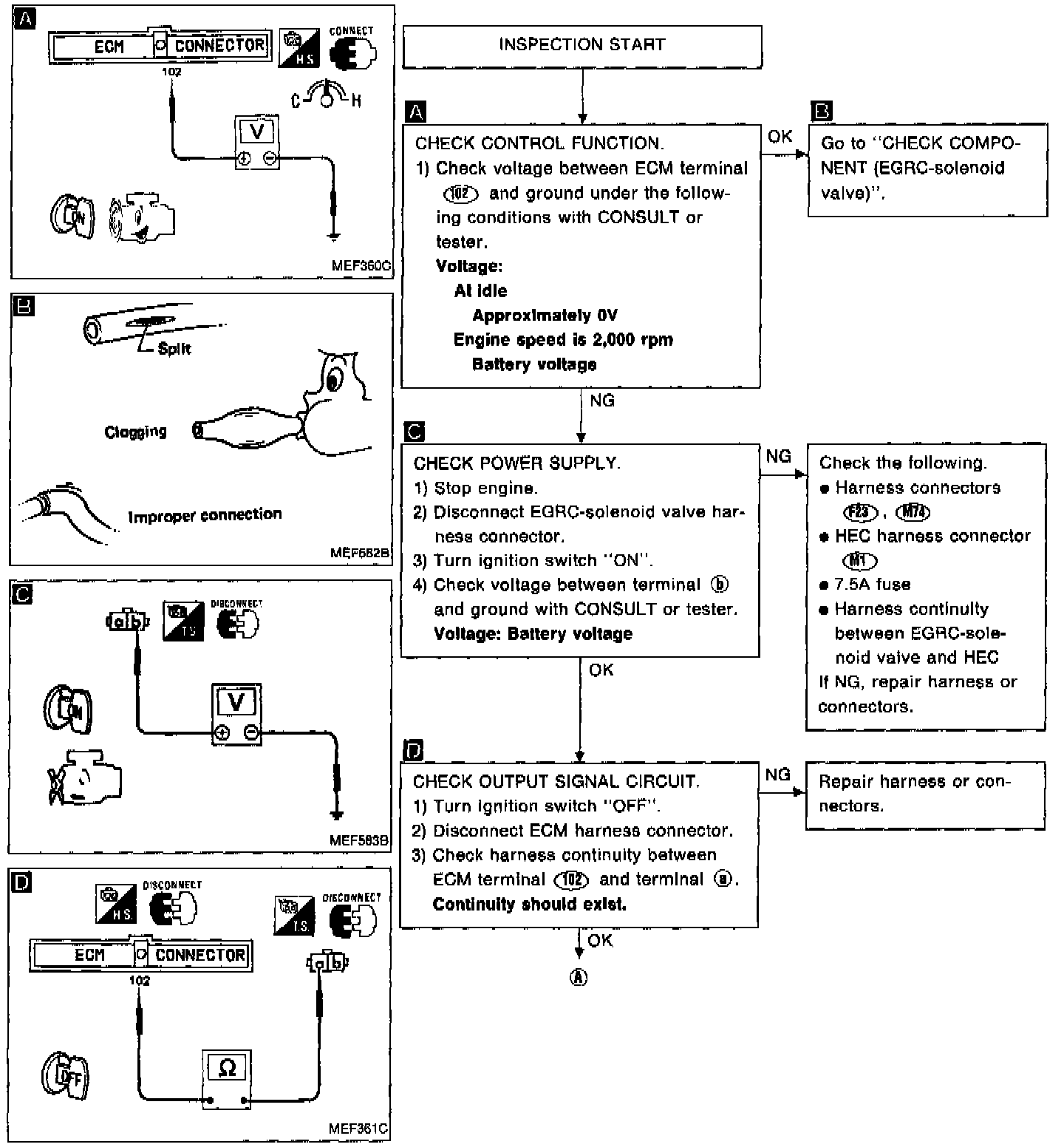

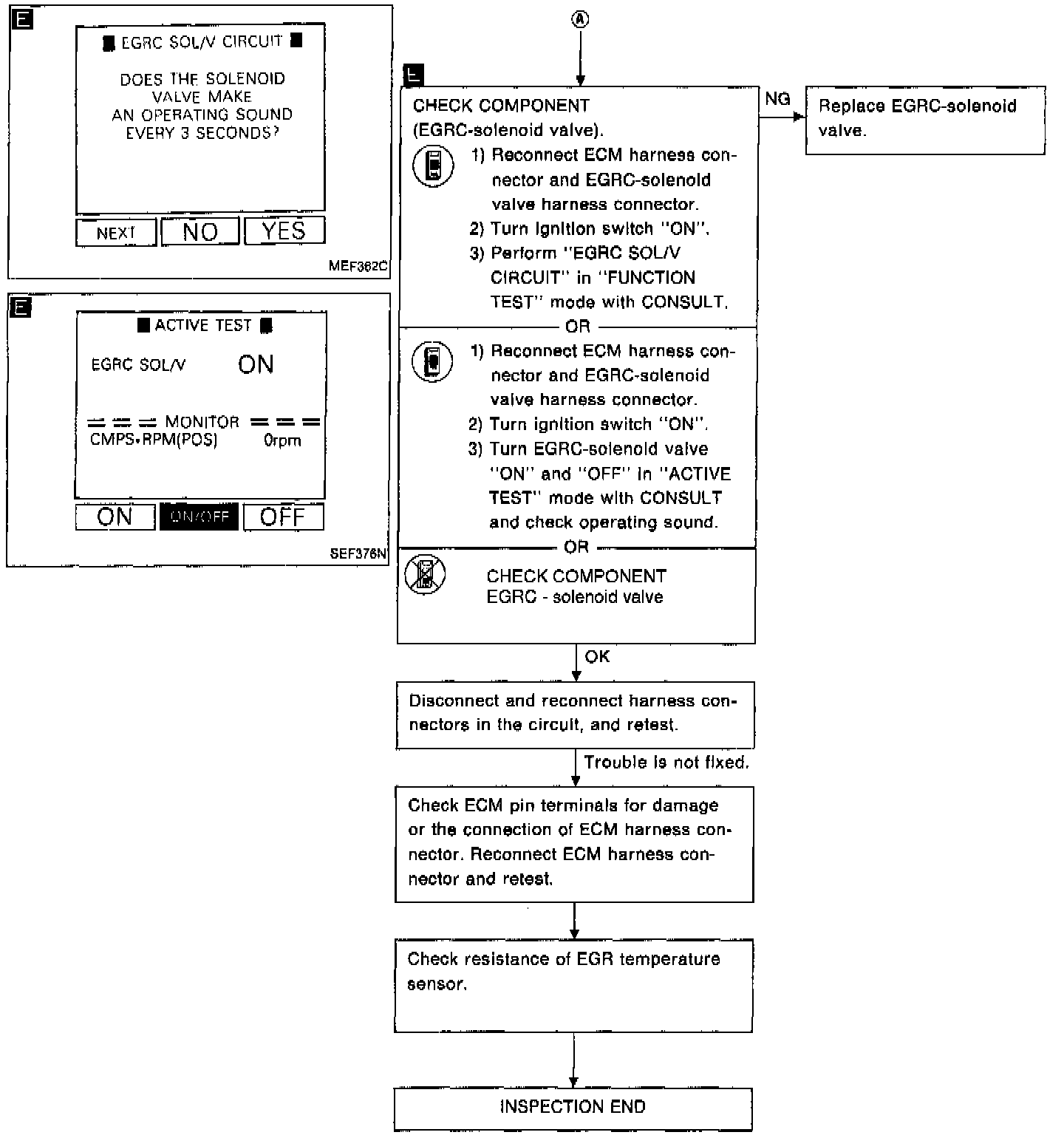

DIAGNOSTIC CHART

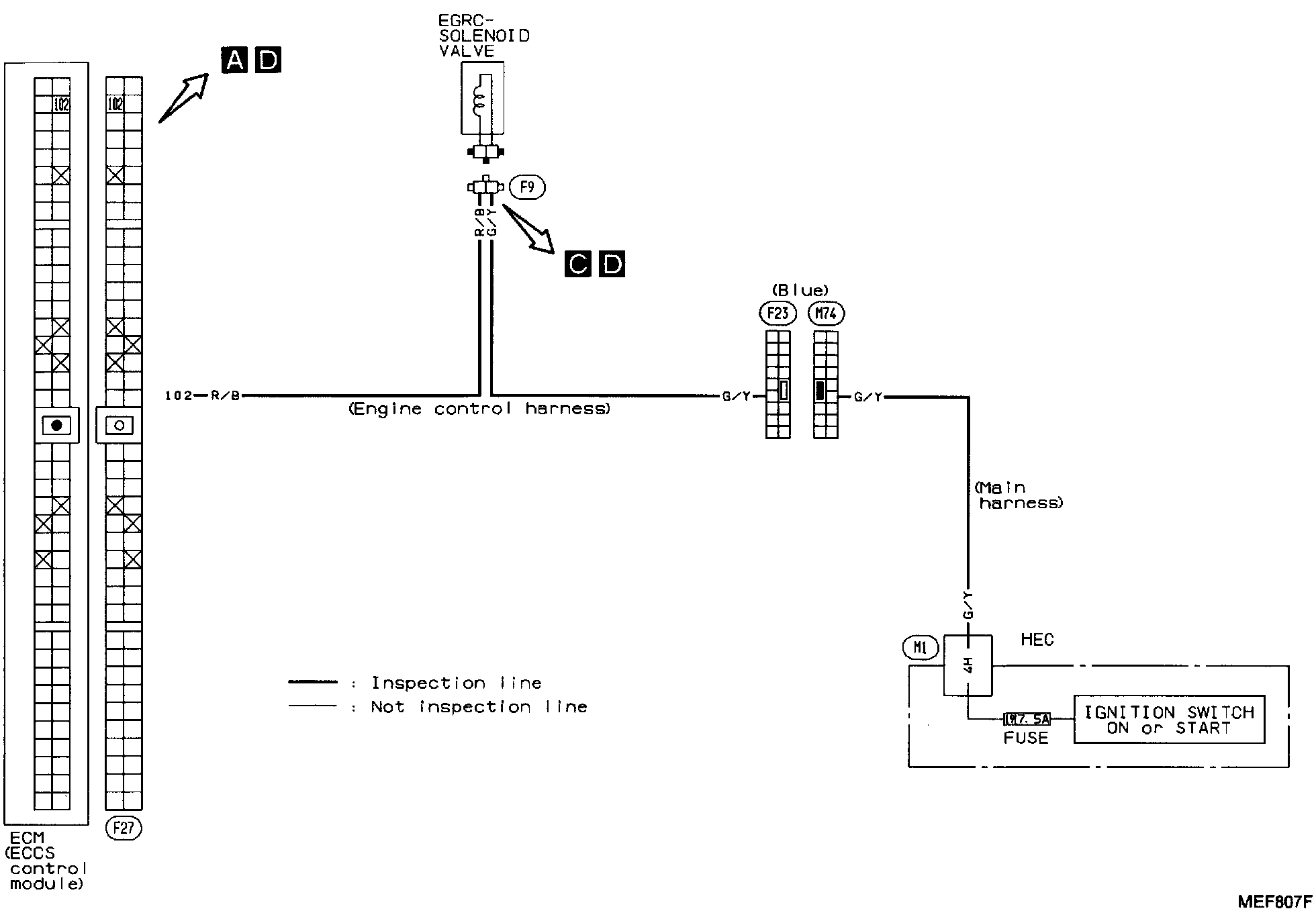

Circuit Diagram:
CIRCUIT DIAGRAM
Harness Layout:
HARNESS LAYOUT
