Diagnostic Procedure
Camshaft Position Sensor (Not Self-Diagnostic Item):

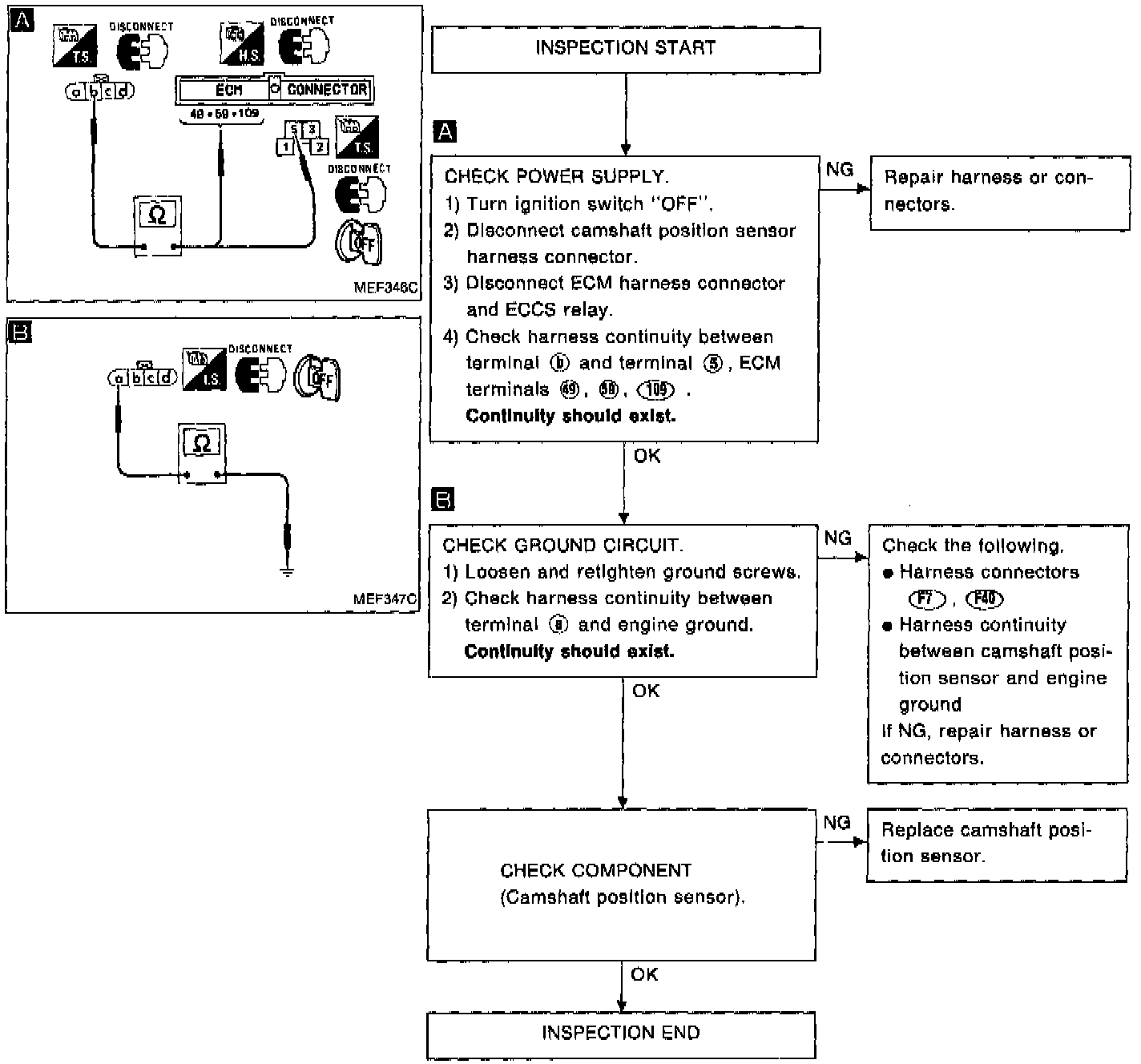

DIAGNOSTIC CHART

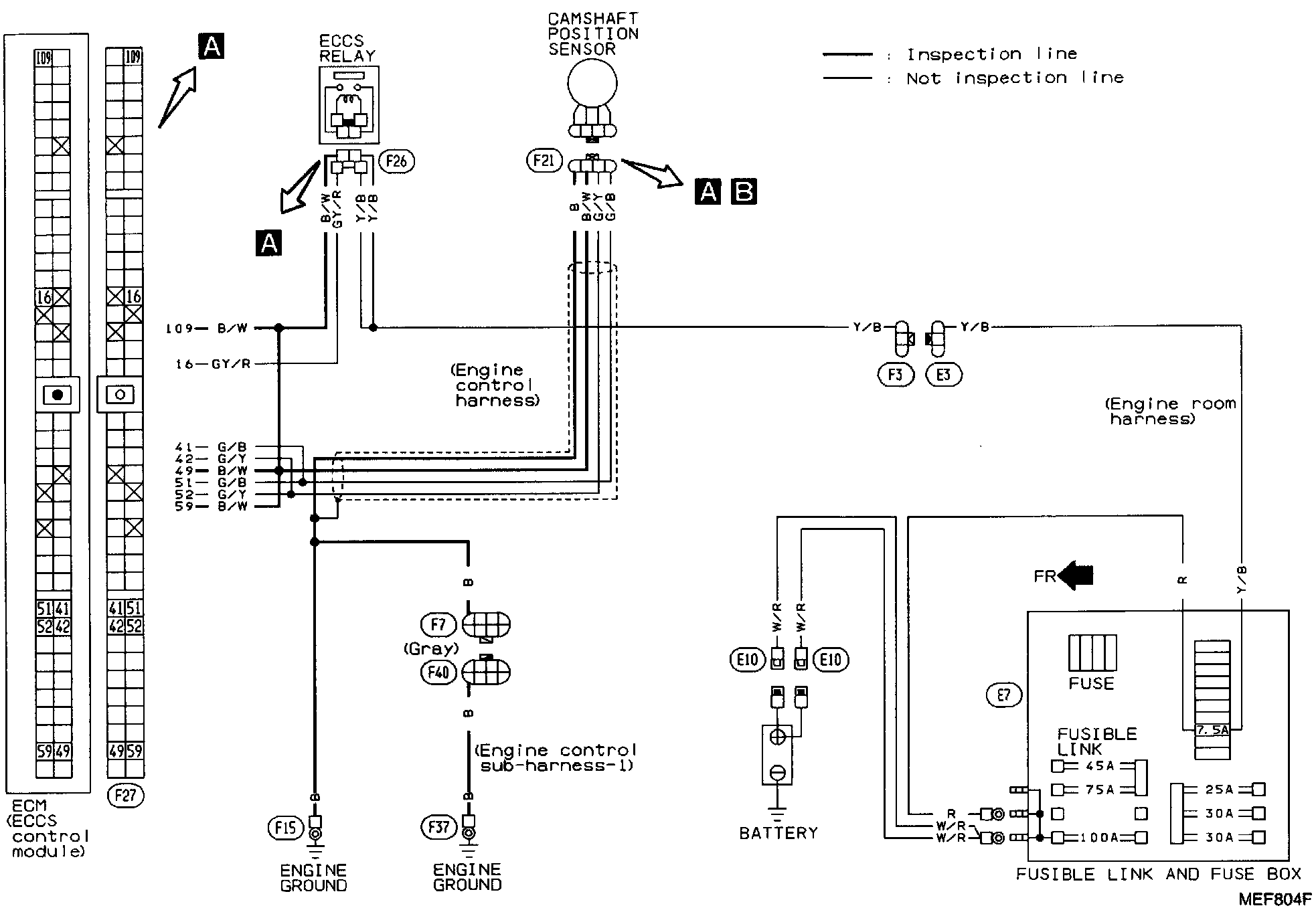

Circuit Diagram:
CIRCUIT DIAGRAM

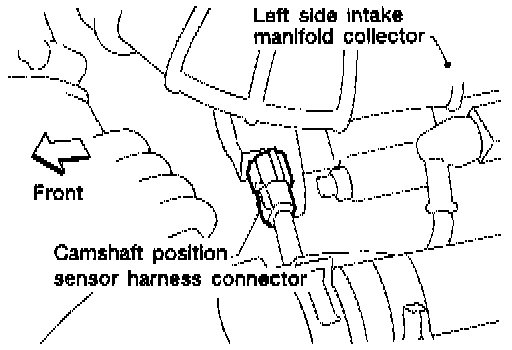

Harness Layout:
HARNESS LAYOUT
