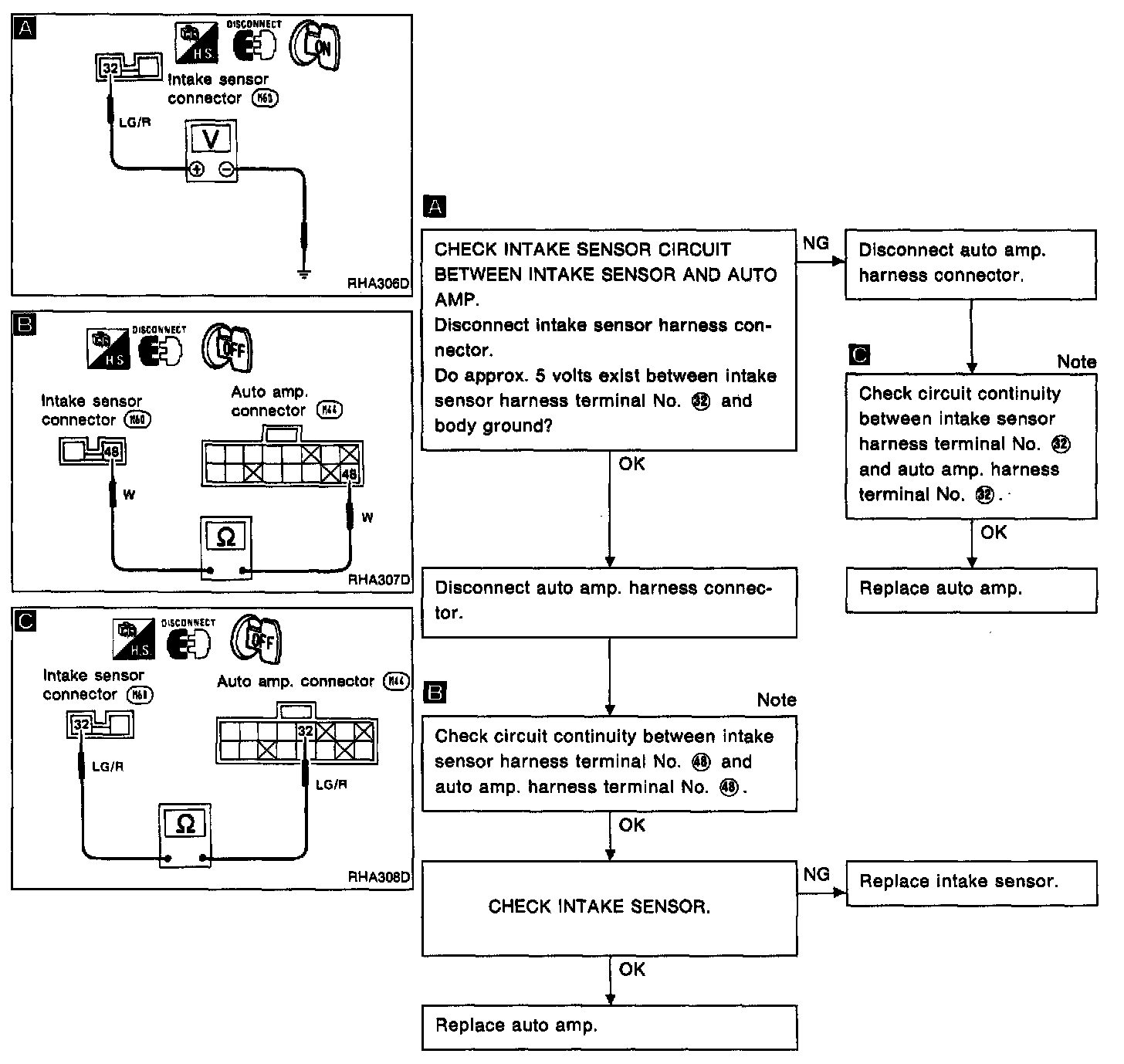

Diagnostic Procedure 5 - Intake Sensor Circuit Is Open

SYMPTOM: Intake sensor circuit is open. (24 is indicated on auto amp. as a result of conducting Self-diagnosis STEP 2; or INTAKE SENSOR [OPEN] (-a) is indicated on CONSULT as a result of conducting "SELF-DIAGNOSIS RESULTS" mode with CONSULT.)

Note: If the result is NG after checking circuit continuity, repair harness or connector.
