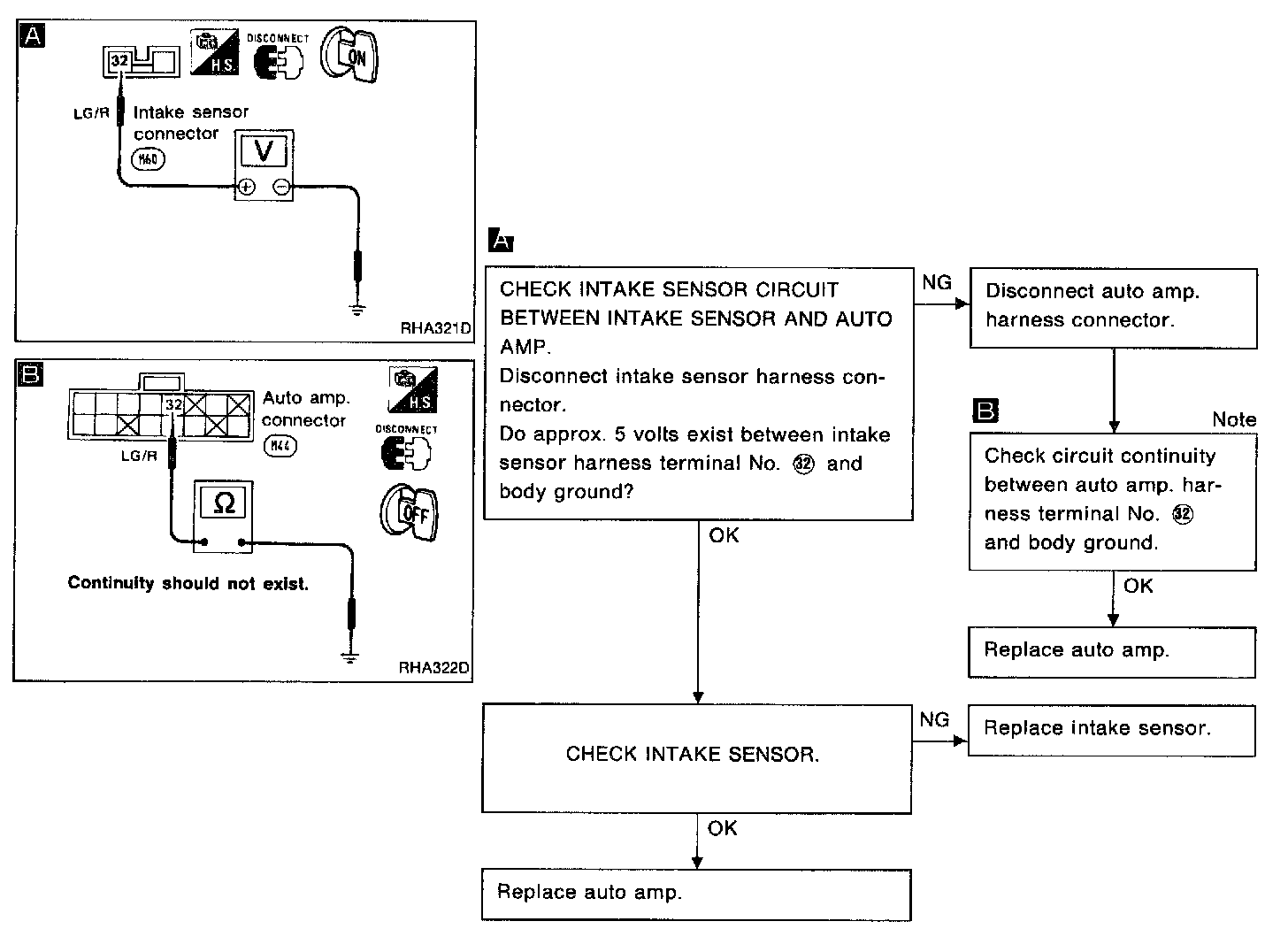

Diagnostic Procedure 11 - Intake Sensor Circuit Is Shorted

SYMPTOM: Intake sensor circuit is shorted. (-24 is indicated on auto amp. as a result of conducting Self-diagnosis STEP 2; or INTAKE SENSOR [SHORT] (-b) is indicated on CONSULT as a result of conducting "SELF-DIAGNOSIS RESULTS" mode with CONSULT.)

Note: If the result is NG after checking circuit continuity, repair harness or connector.
