Infiniti
>>
1994
>>
J30 V6-2960cc 3.0L DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
Keyless Entry

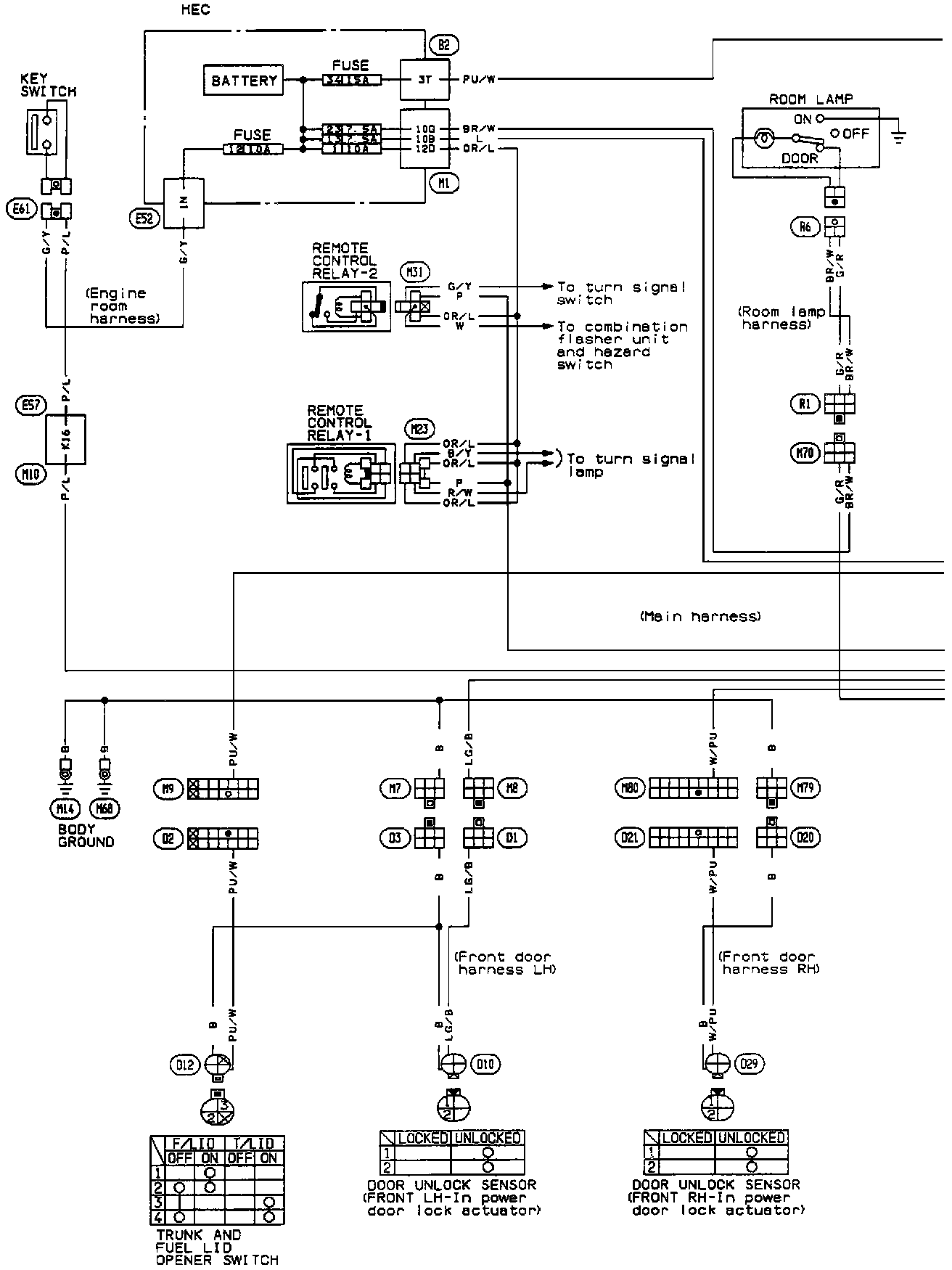

Multi-Remote Control System-Wiring Diagram (Part 1 Of 2):

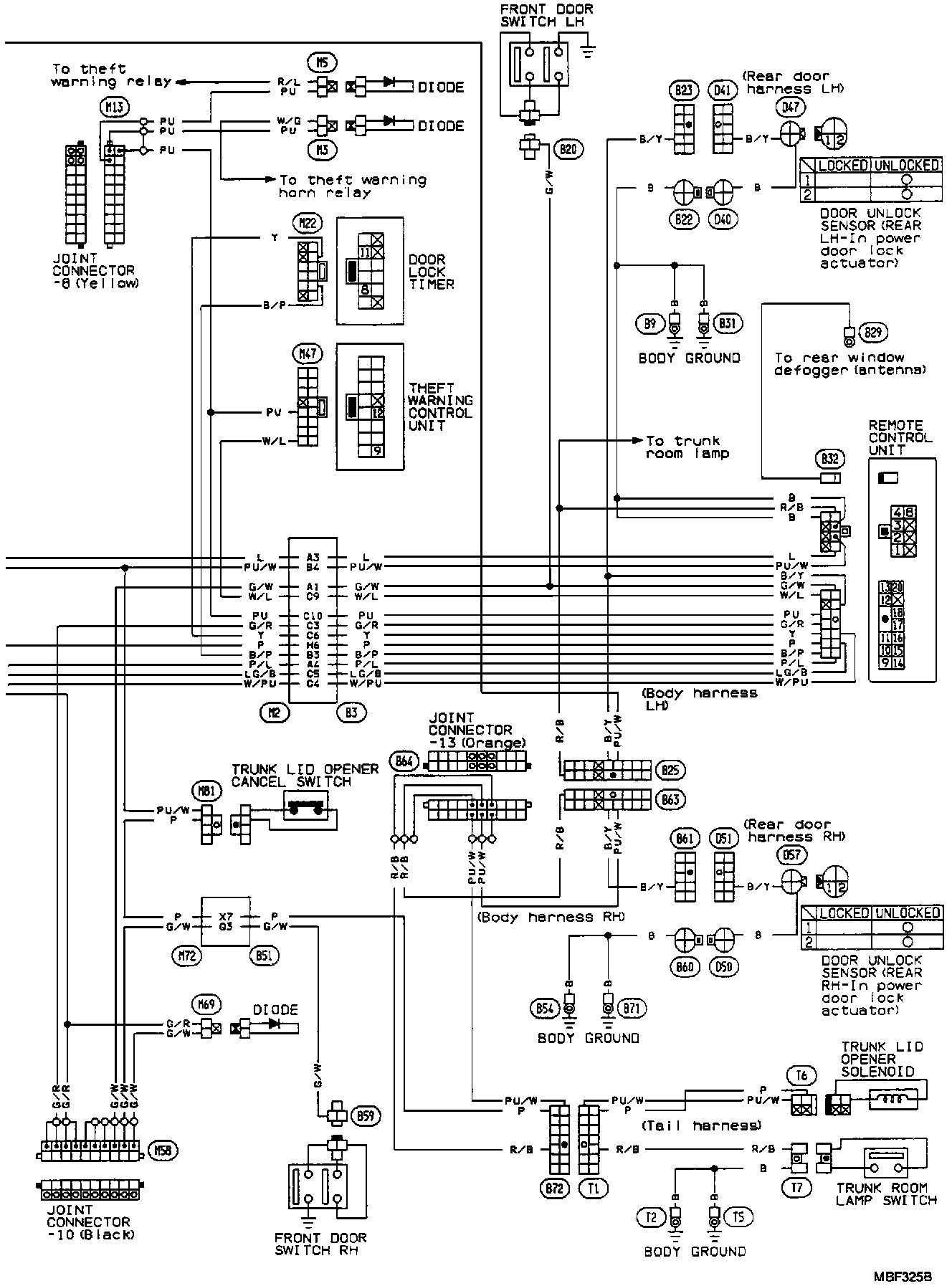

Multi-Remote Control System-Wiring Diagram (Part 2 Of 2):
