Antitheft and Alarm Systems
>>
Theft Warning System
Theft Warning System

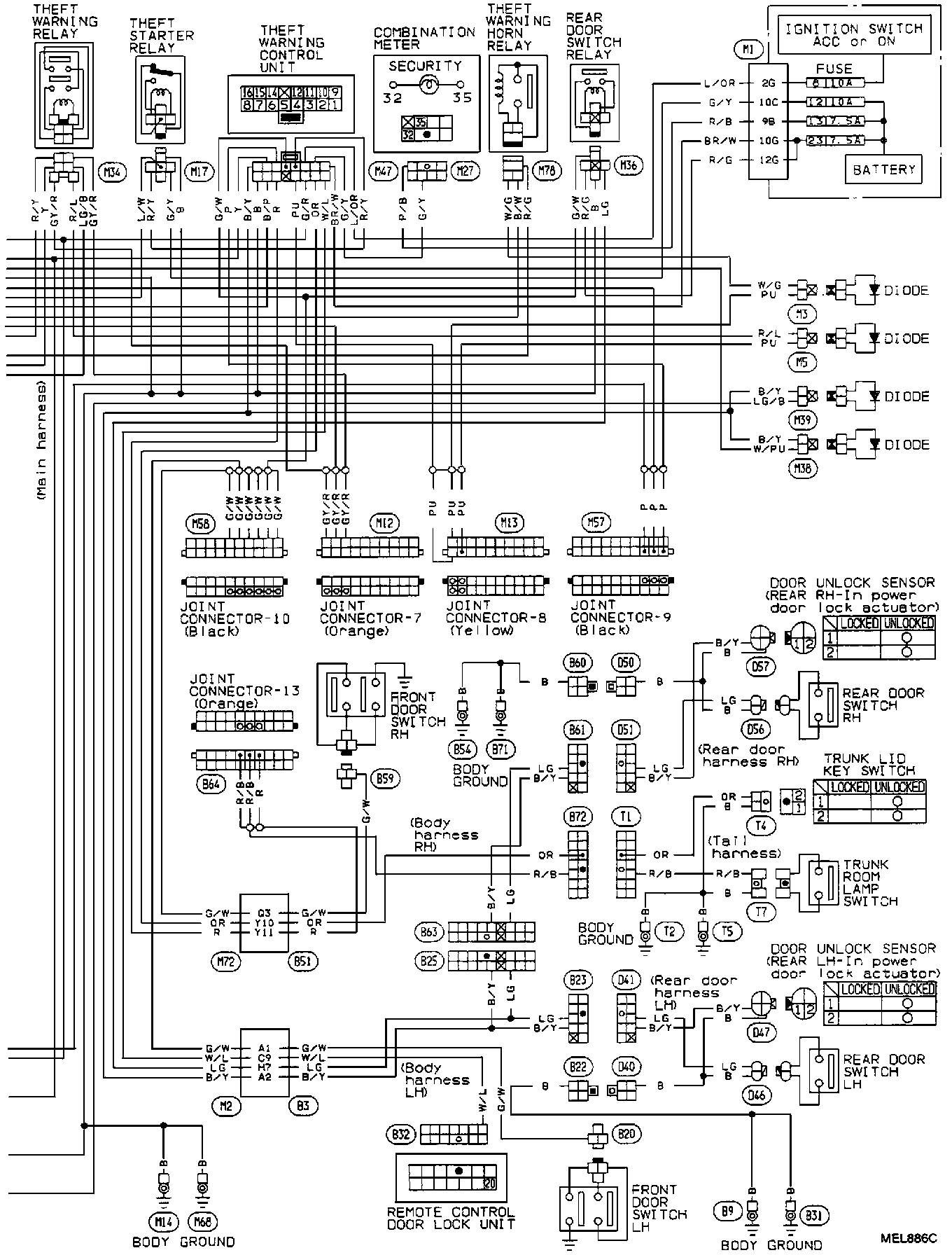

Theft Warning System - Wiring Diagram (Part 1 Of 2):
Theft Warning System - Wiring Diagram (Part 2 Of 2):
