Engine Control Harness and Engine Harness
Engine Control Harness and Engine Harness

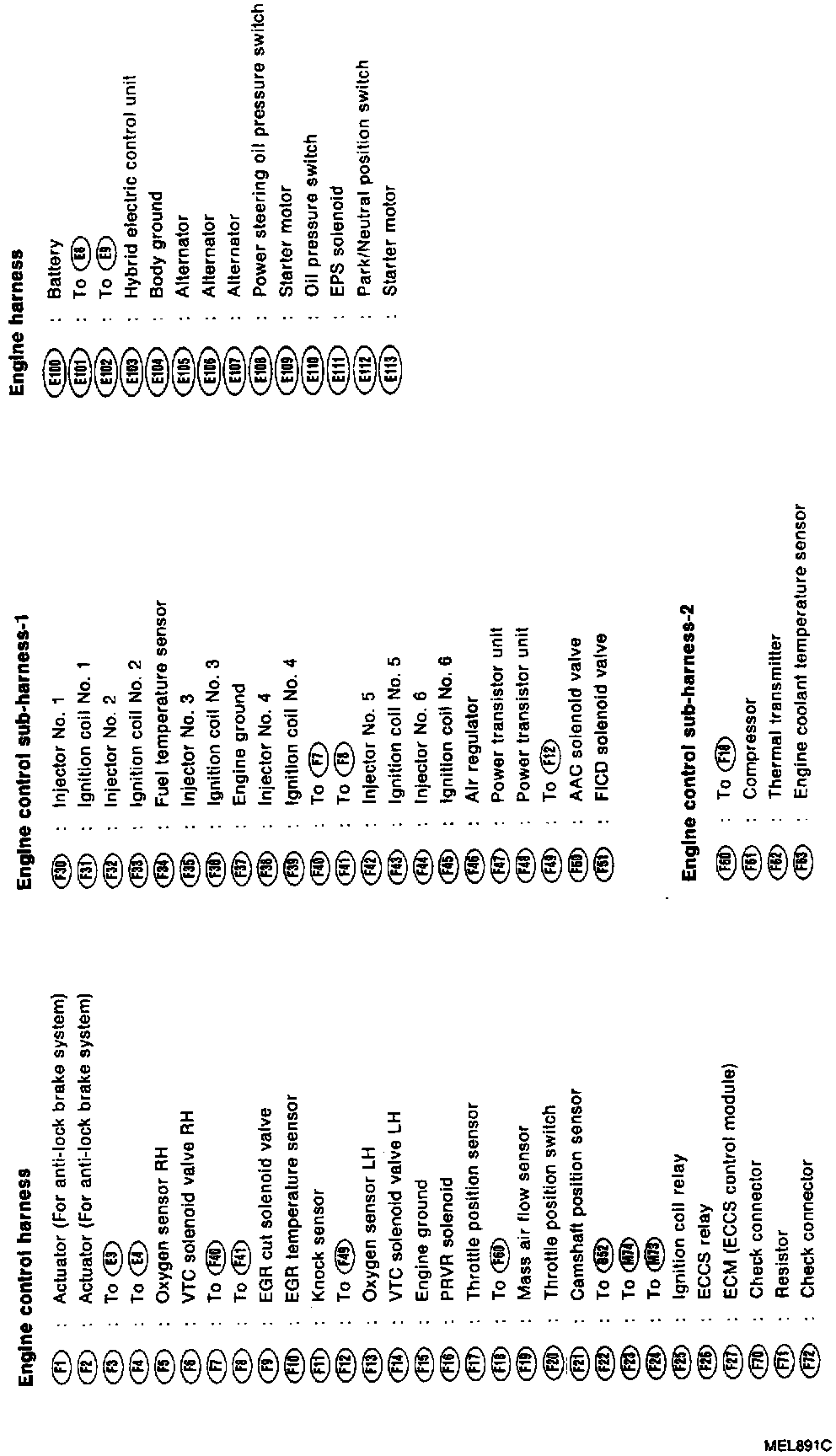

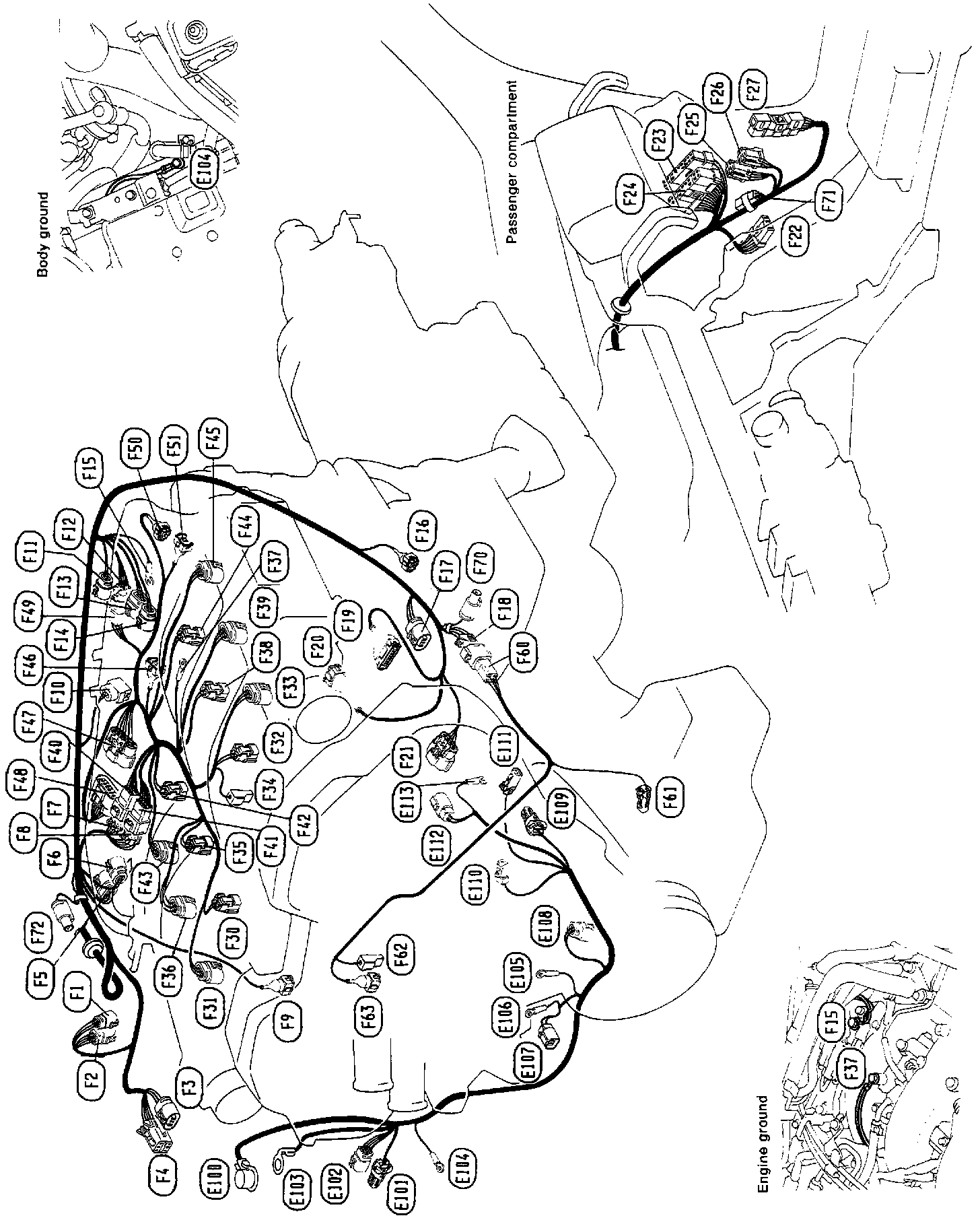

Harness Layout - Engine Control Harness And Engine Harness (Part 1 Of 2):
Harness Layout - Engine Control Harness And Engine Harness (Part 2 Of 2):
