Vacuum Pump: Testing and Inspection

Automatic Speed Control Device (ASCD) - Electrical Components Inspection:

1. Disconnect Automatic Speed Control Device actuator/ASCD pump connector.

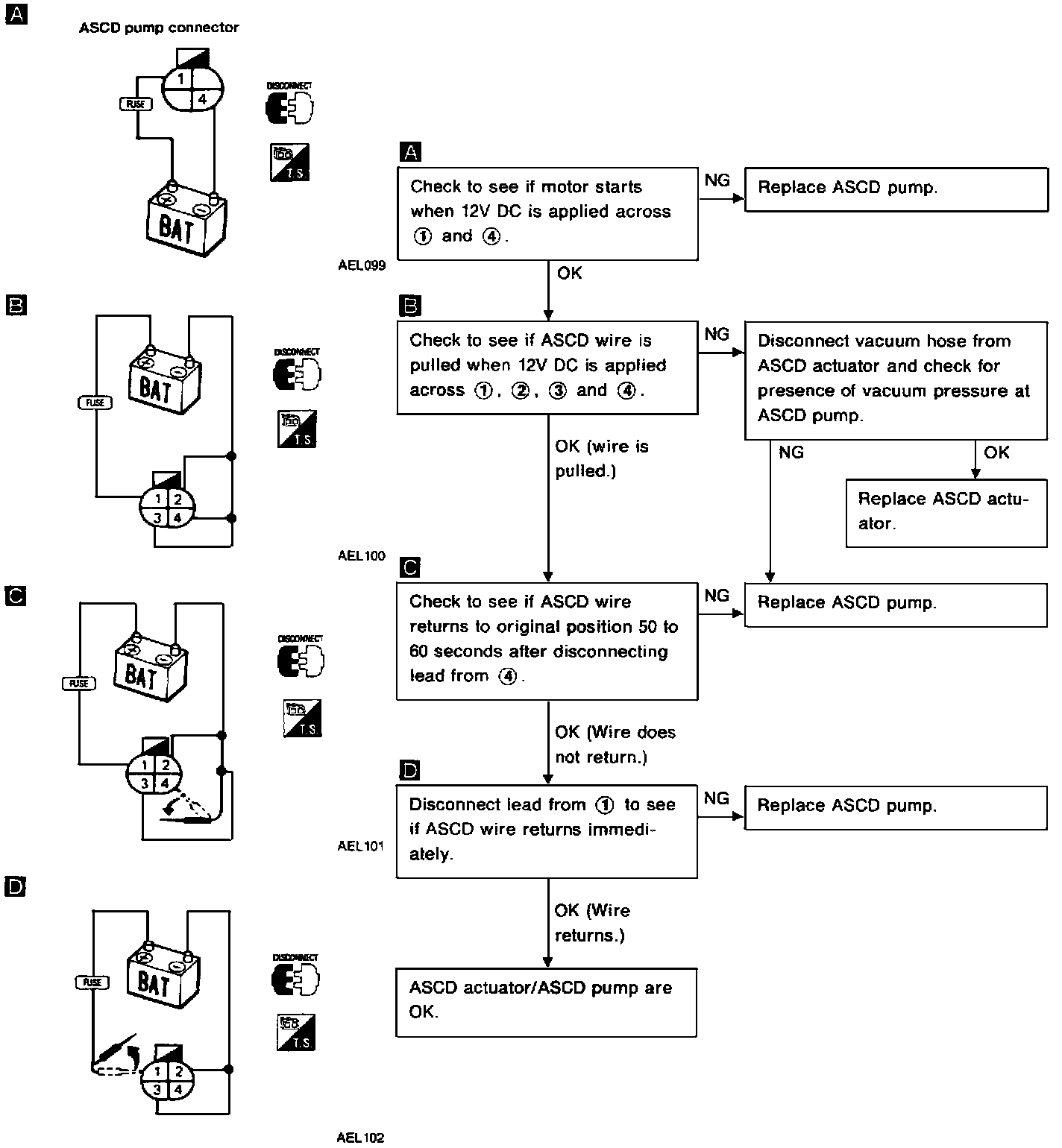

2. Check ASCD actuator/ASCD pump operations as shown.
