CONSULT-II Inspection Procedure

Automatic Speed Control Device (ASCD) - Trouble Diagnoses:

1. Turn off ignition switch.

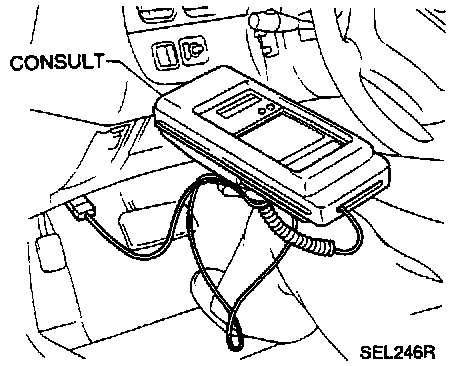

2. Connect "CONSULT" to data link connector

Automatic Speed Control Device (ASCD) - Trouble Diagnoses:

3. Turn on ignition switch.
4. Turn on Automatic Speed Control Device (ASCD) main switch.
5. Touch START (on CONSULT display).
6. Touch ASCD.

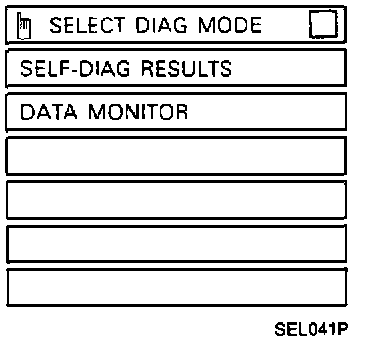

7. Touch SELF-DlAG RESULTS.

Automatic Speed Control Device (ASCD) - Trouble Diagnoses:

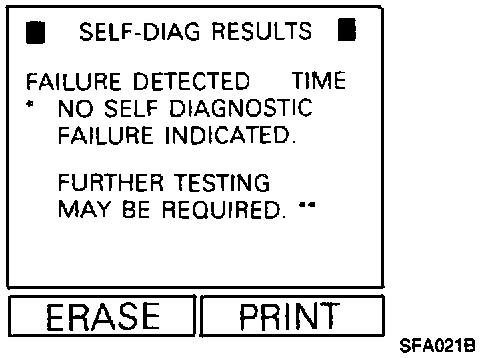

^ Self-diagnostic results are shown on display.

Automatic Speed Control Device (ASCD) - Trouble Diagnoses:

8. Touch DATA MONITOR.

Automatic Speed Control Device (ASCD) - Trouble Diagnoses:

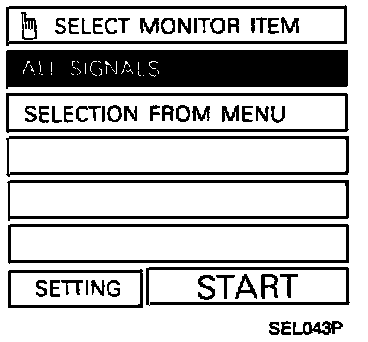

^ Touch START.

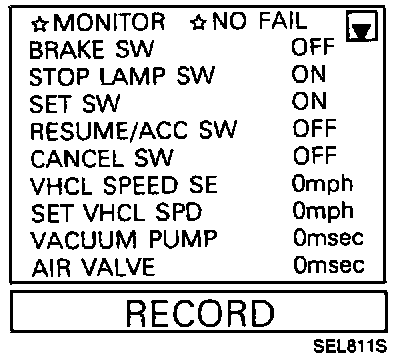

^ Data monitor results are shown on display.
