Valve Body: Testing and Inspection

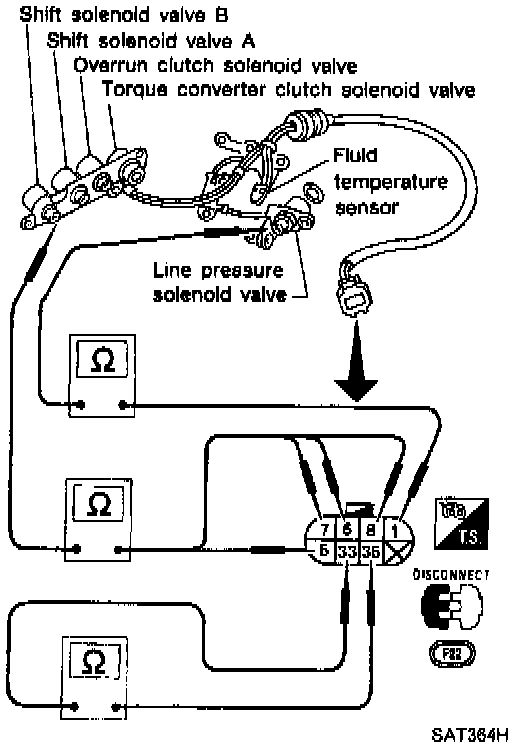

Solenoid Valves Resistance Test:

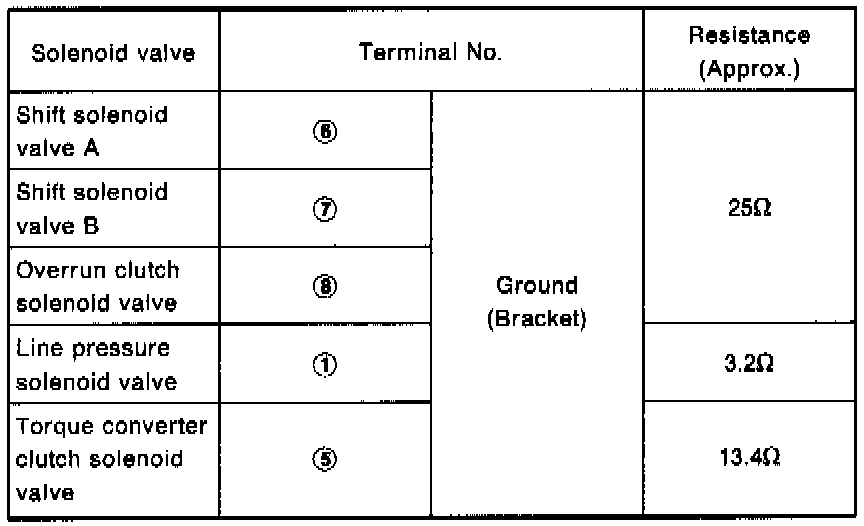

Solenoid Valve Test Results Table:

RESISTANCE CHECK
Check resistance between two terminals.

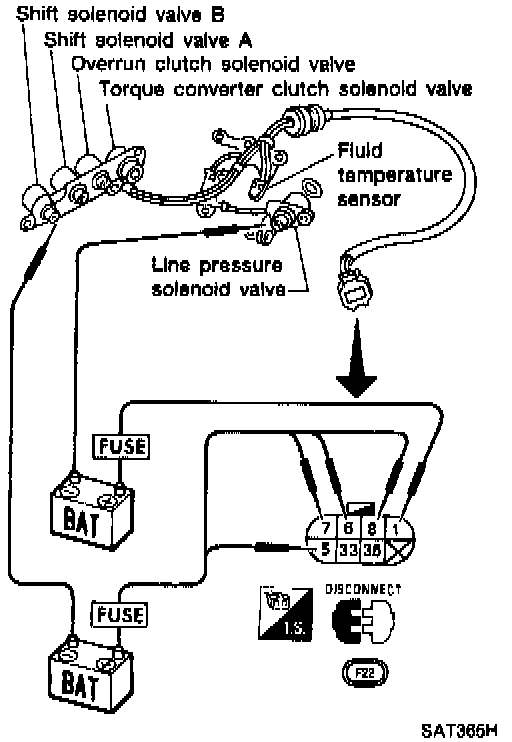

Solenoid Valves Operation Check:

OPERATION CHECK
Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground (bracket).
