Stabilizer Bar: Service and Repair

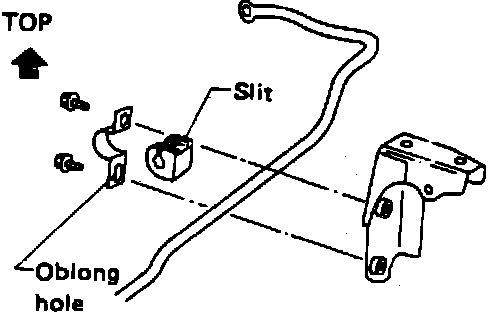

Fig. 15 Installing Stabilizer Bar.:

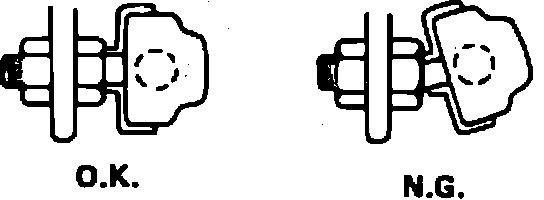

Fig. 16 Stabilizer Bar Ball Joint Position.:

1. Raise and support vehicle.
2. Remove stabilizer bar attaching nut and bolts, then remove stabilizer bar.
3. Reverse procedure to install noting the following:
a. Install stabilizer as shown in Fig. 15.
b. Install stabilizer bar with ball joint socket positioned as shown in Fig. 16.
