Disassembly

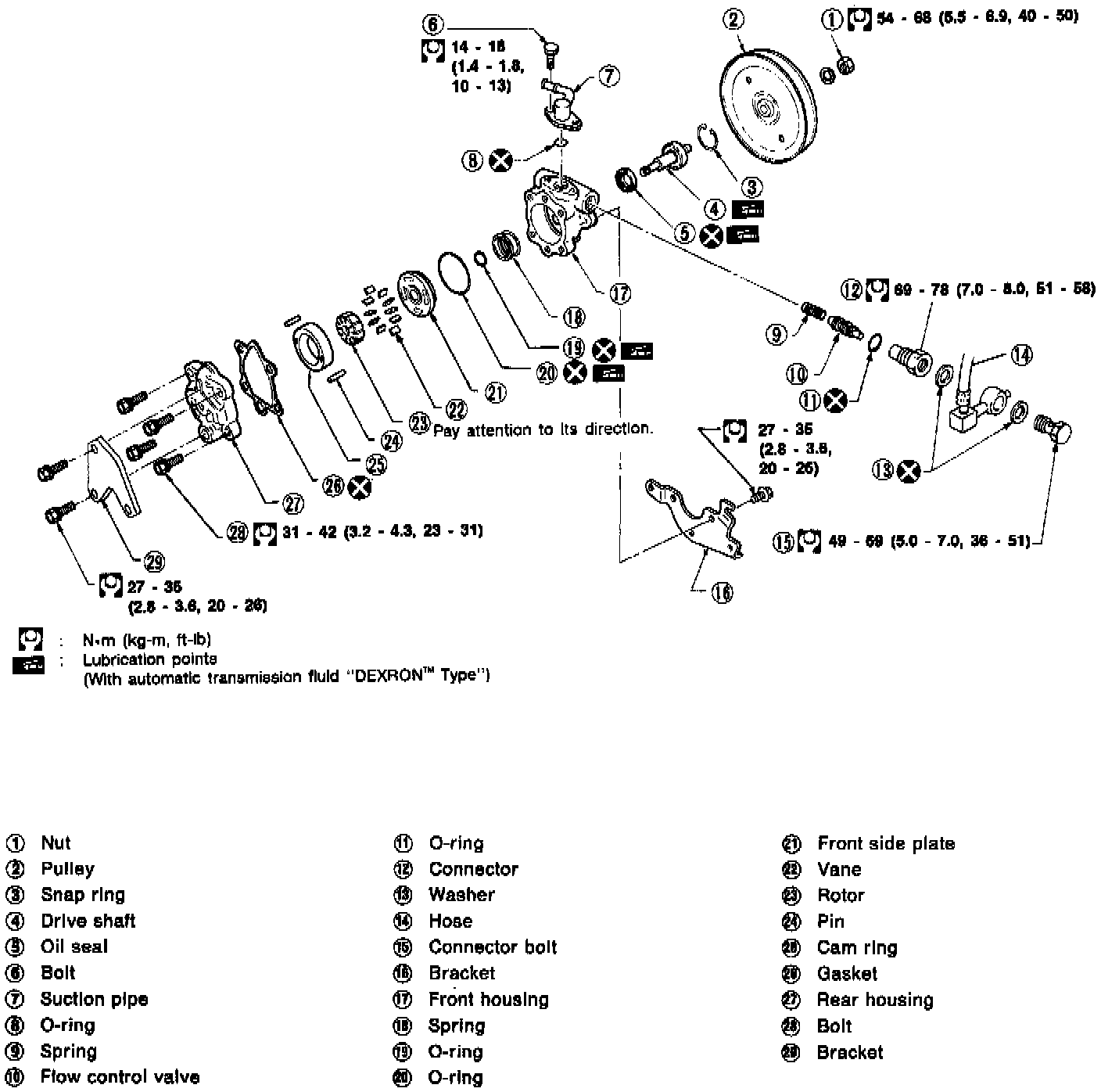

Fig. 17 Exploded view of power steering pump:




Refer to Fig. 17 when disassembling power steering pump.
