Home >> Infiniti >> 1994 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Knock Sensor >> Diagrams >> Electrical Diagrams >> USA

USA

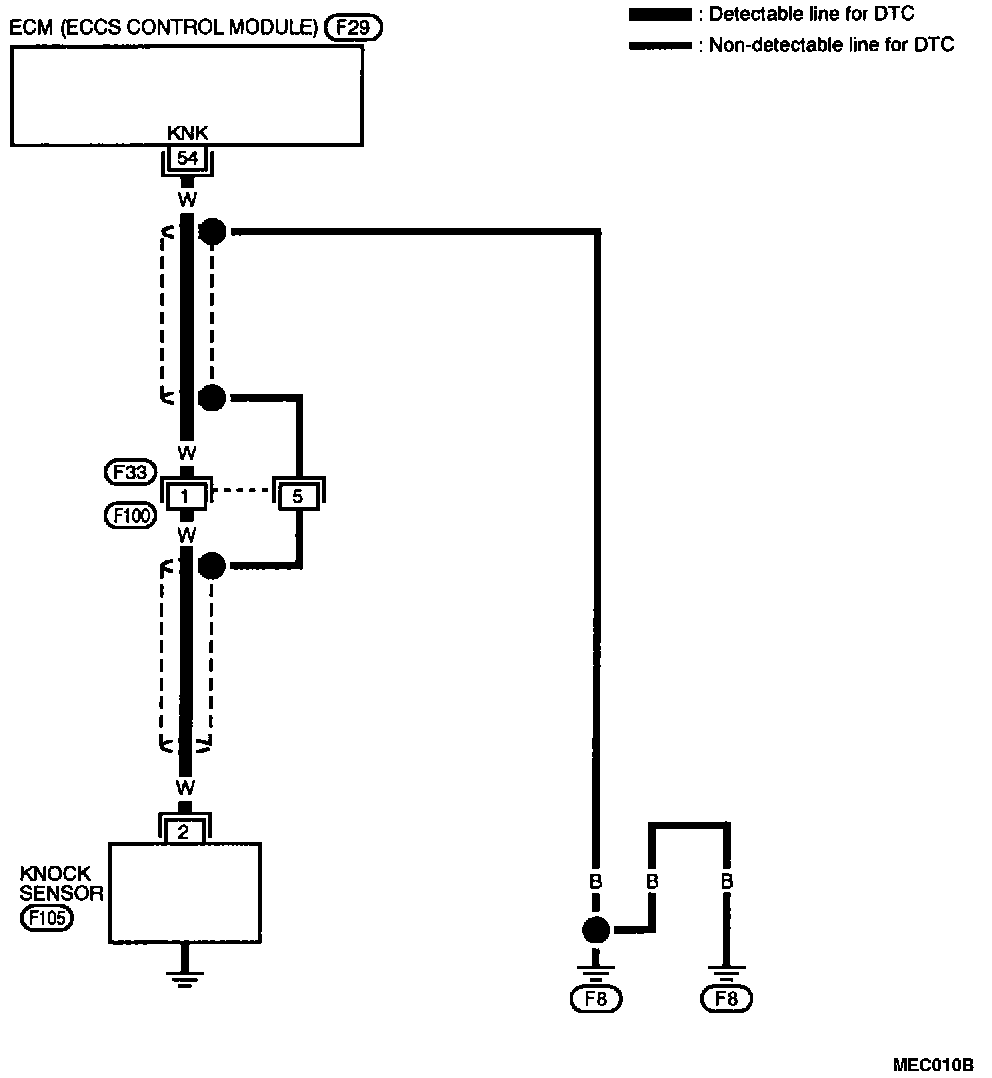

Knock Sensor (KS) (DTC: P0325):
