Fuel Pump Control (USA)
Fuel Pump Control (USA)
Fuel Pump Non-DTC Chart:
Fuel Pump Non-DTC Chart:

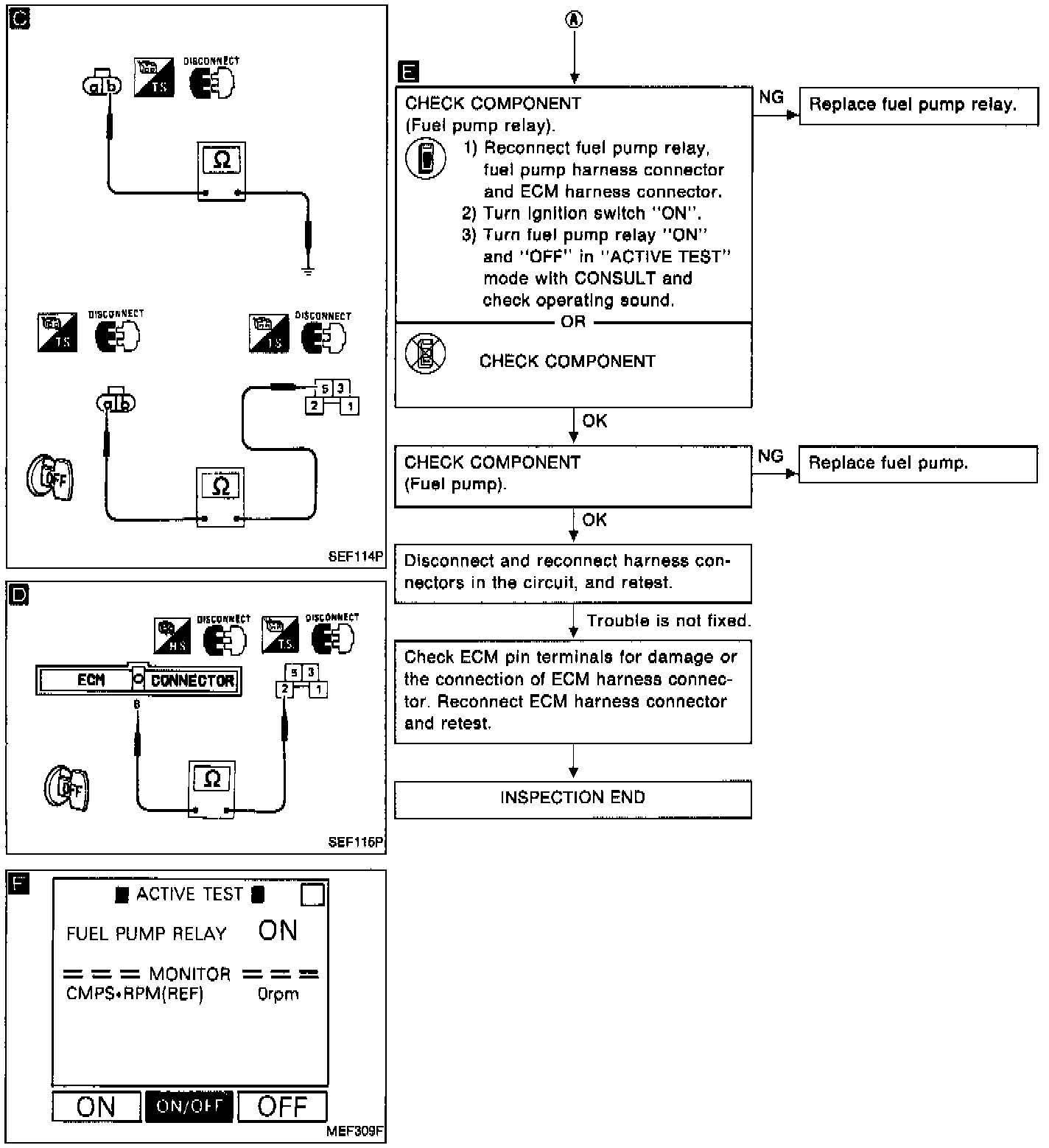

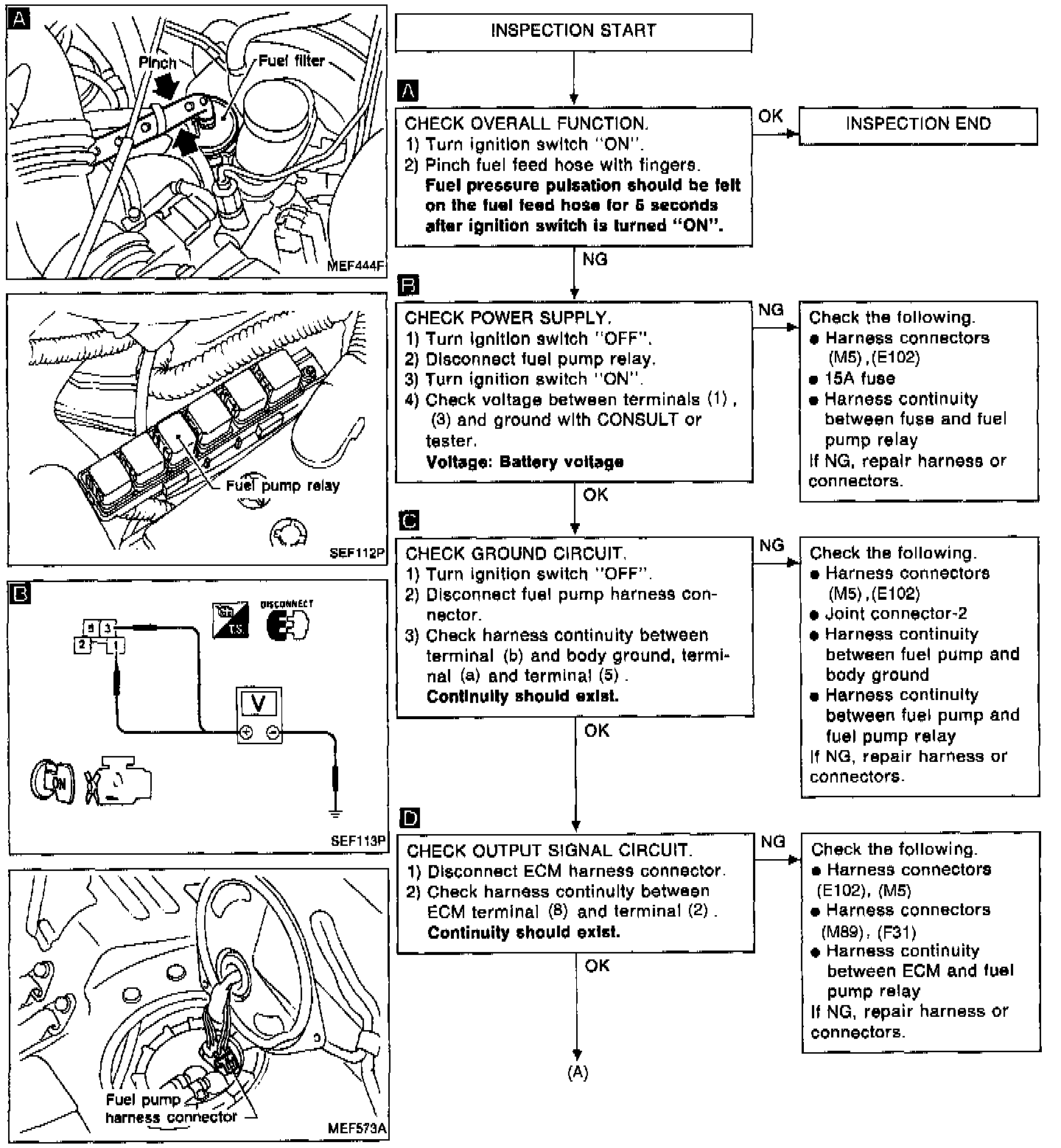

DIAGNOSTIC CHART

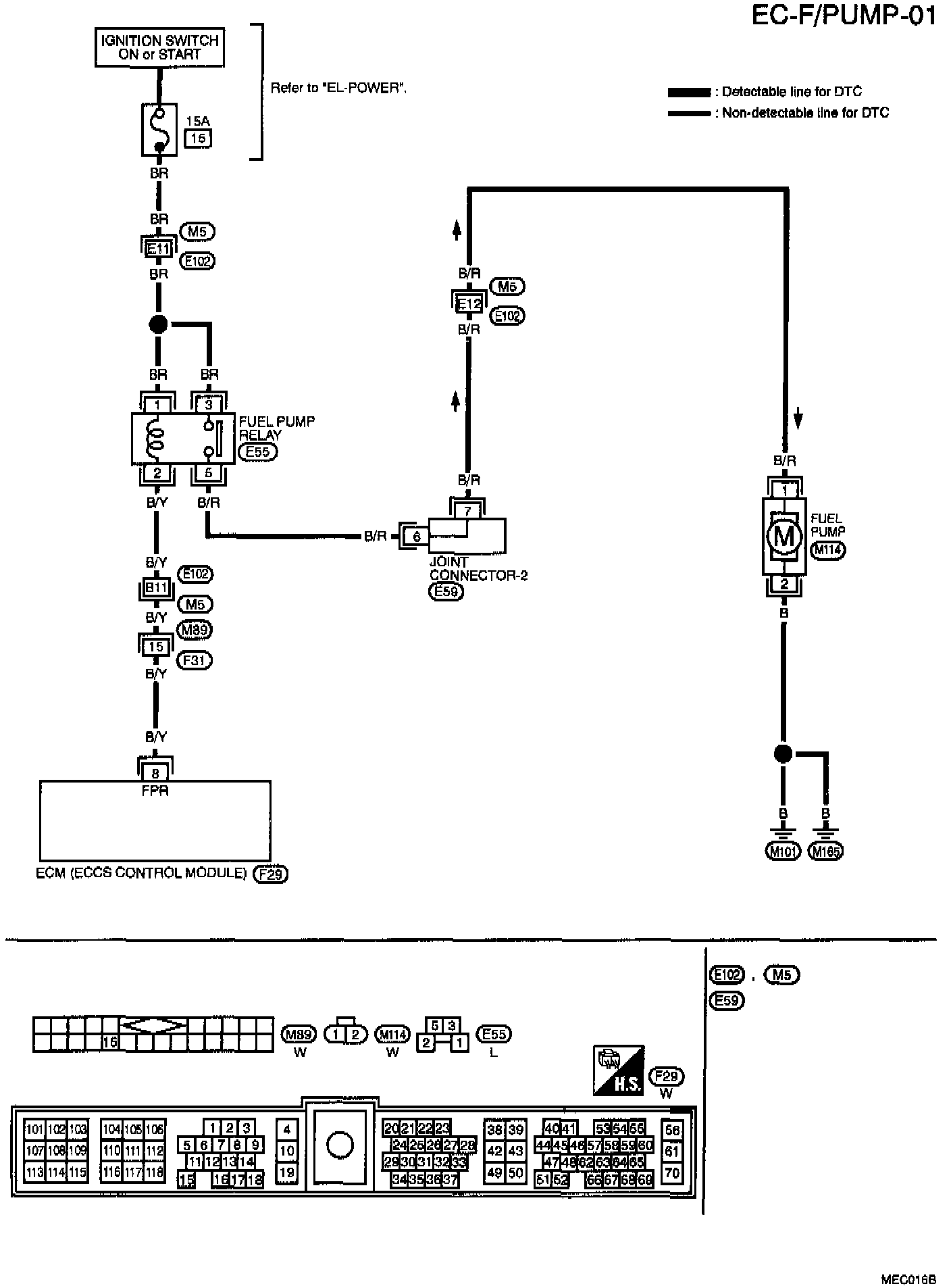

Fuel Pump Non-DTC Circuit Diagram:
CIRCUIT DIAGRAM
