Home >> Infiniti >> 1994 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Reading Diagnostic Trouble Codes >> With Manufacturer's Scan Tool (CONSULT II) >> USA >> CONSULT Test Mode Charts >> Data Monitor Mode

Data Monitor Mode

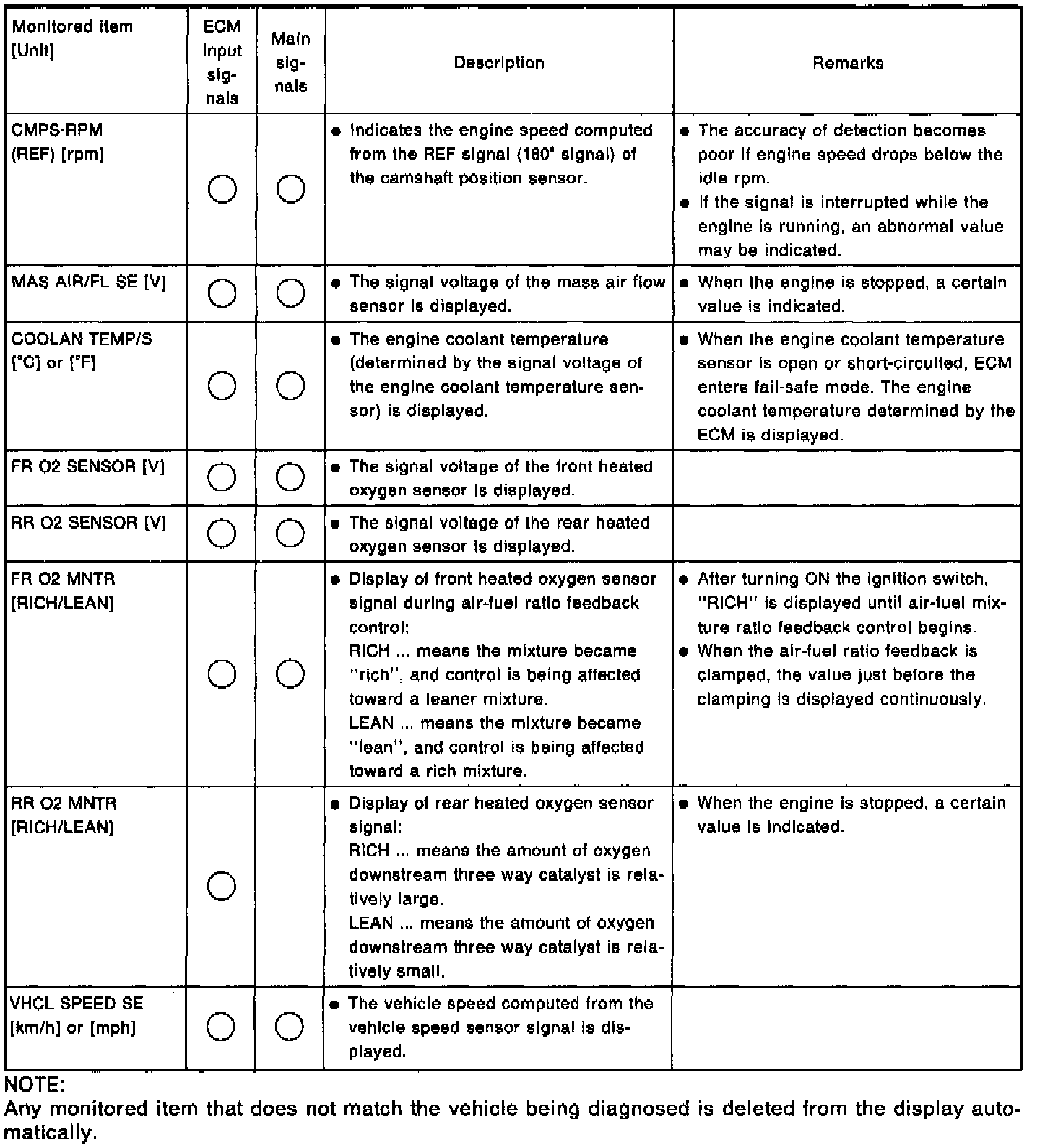

Data Monitor Mode:

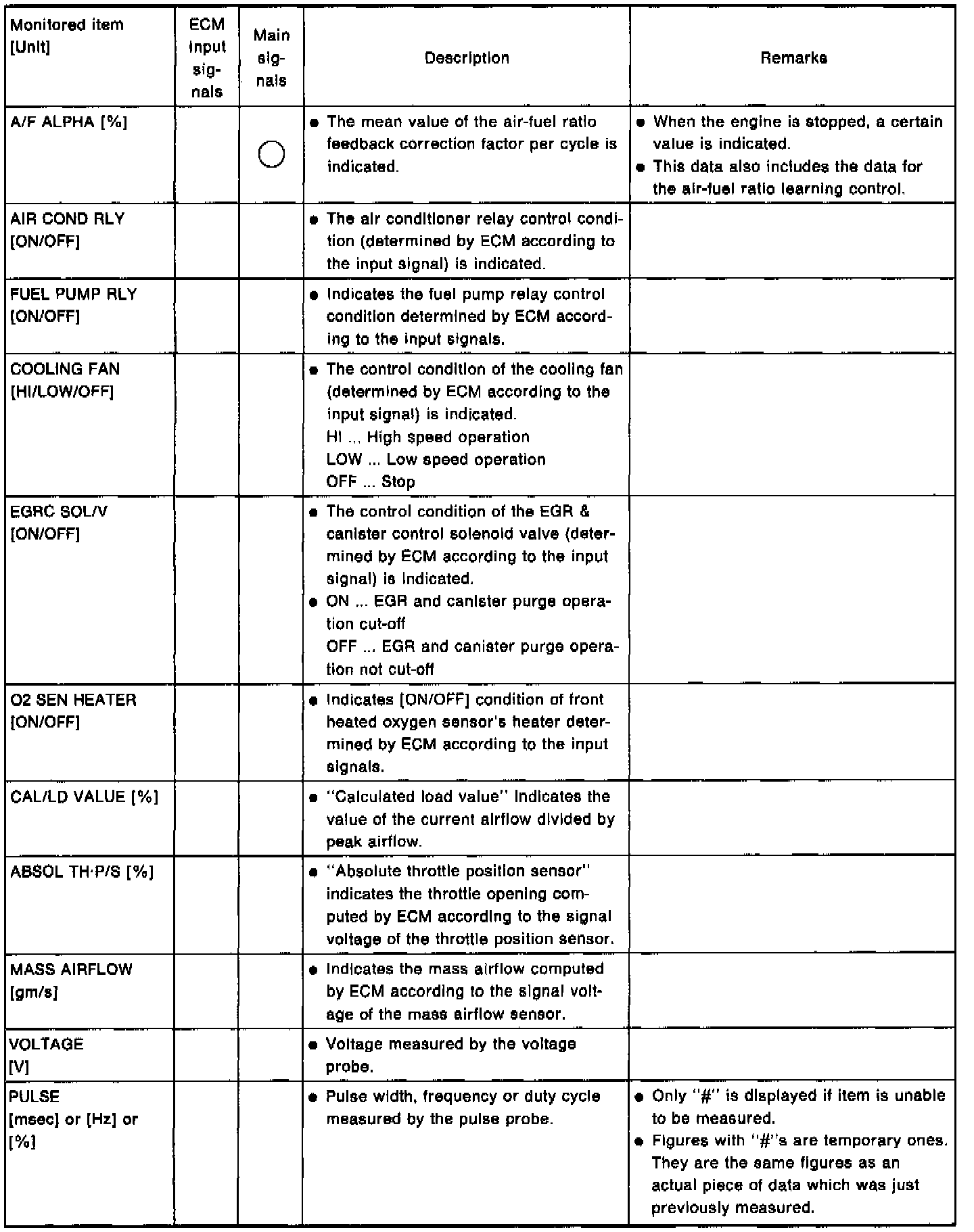

Data Monitor Mode:

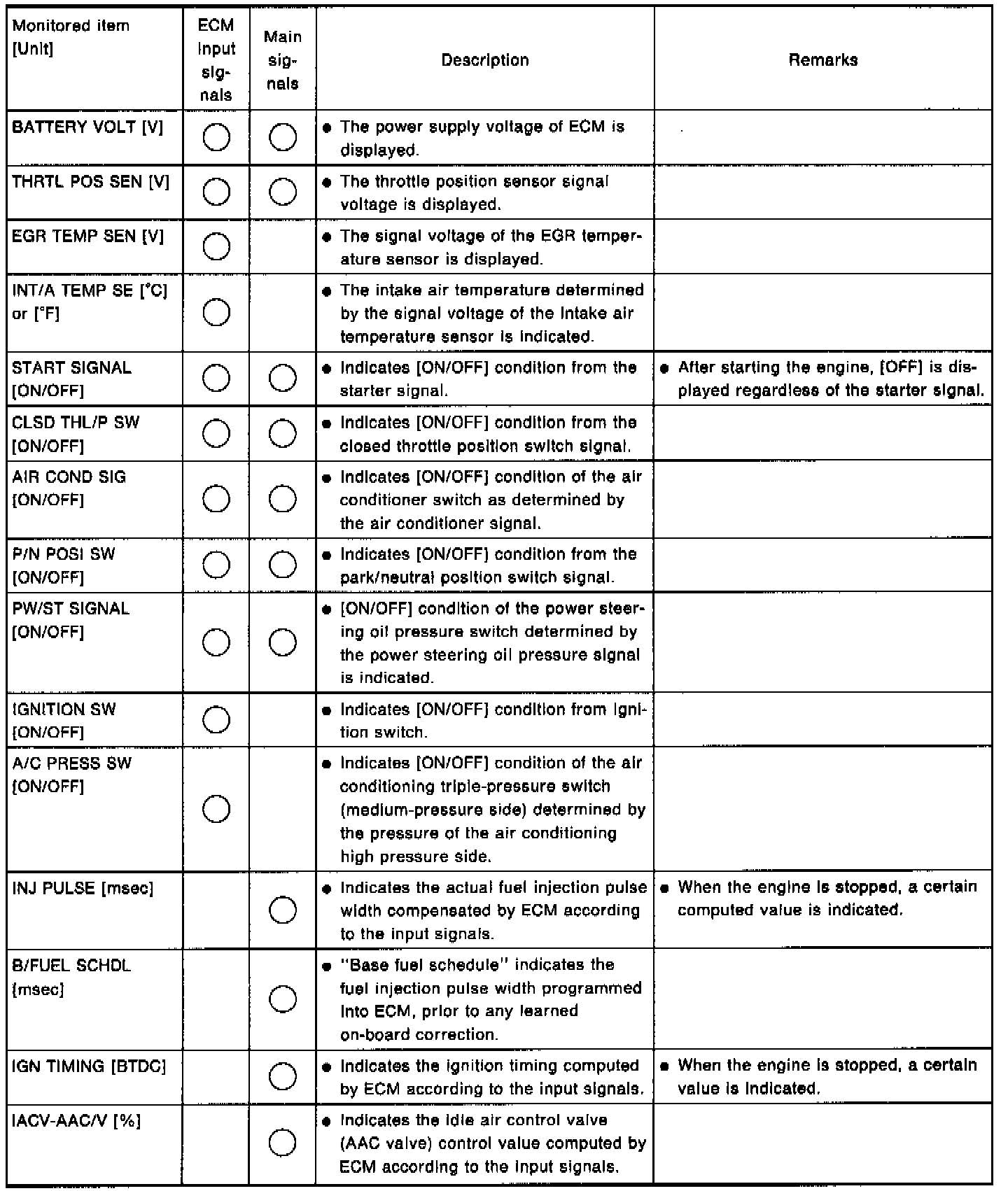

Data Monitor Mode:
