Start Signal Circuit
>>
Start Signal Circuit (USA)
Start Signal Circuit (USA)

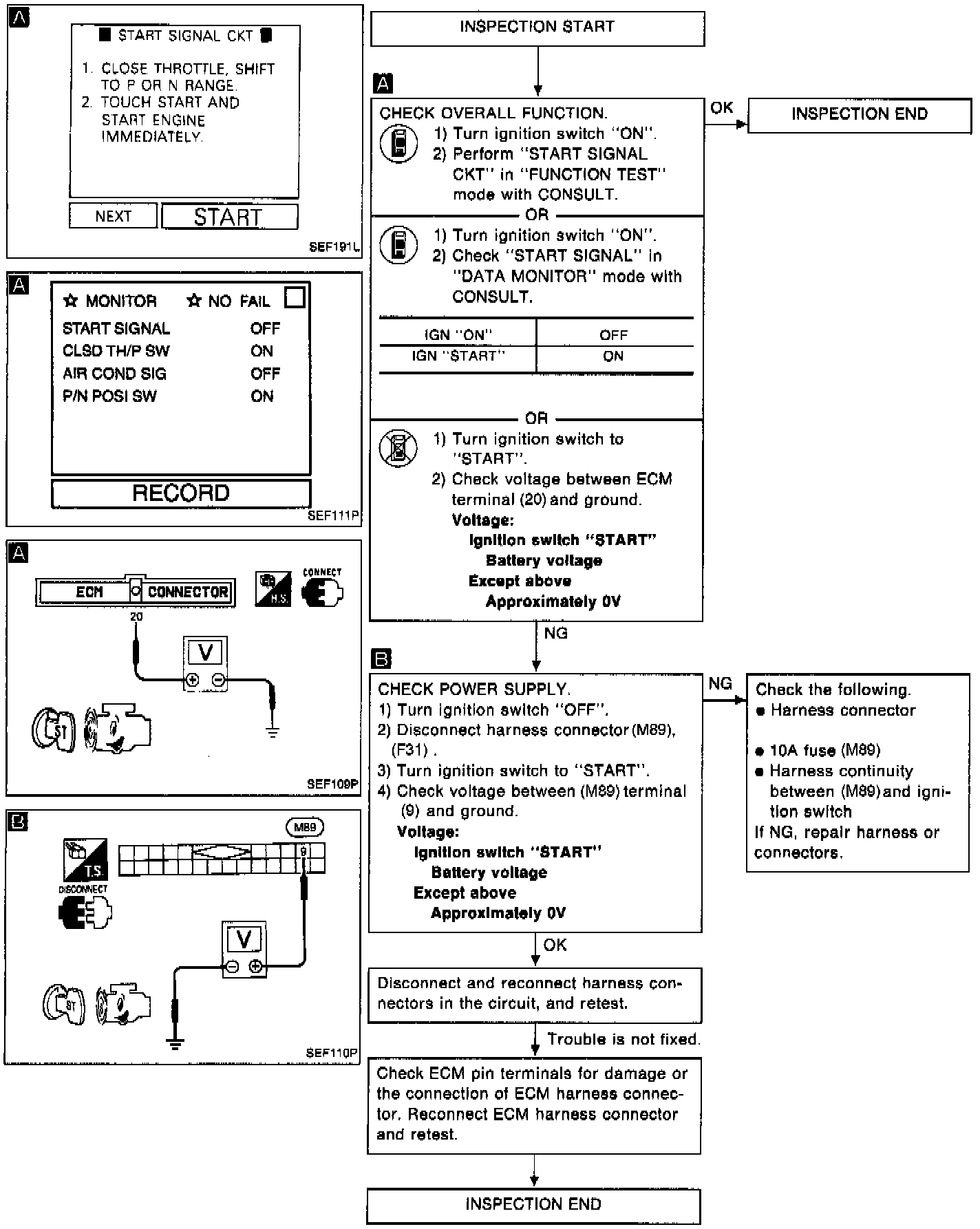

Start Signal Non-DTC Chart:
DIAGNOSTIC CHART
Start Signal Circuit Diagram:
CIRCUIT DIAGRAM
