Non-DTC - Main Power Supply & Ground Circuit:
Non-DTC - Main Power Supply & Ground Circuit:

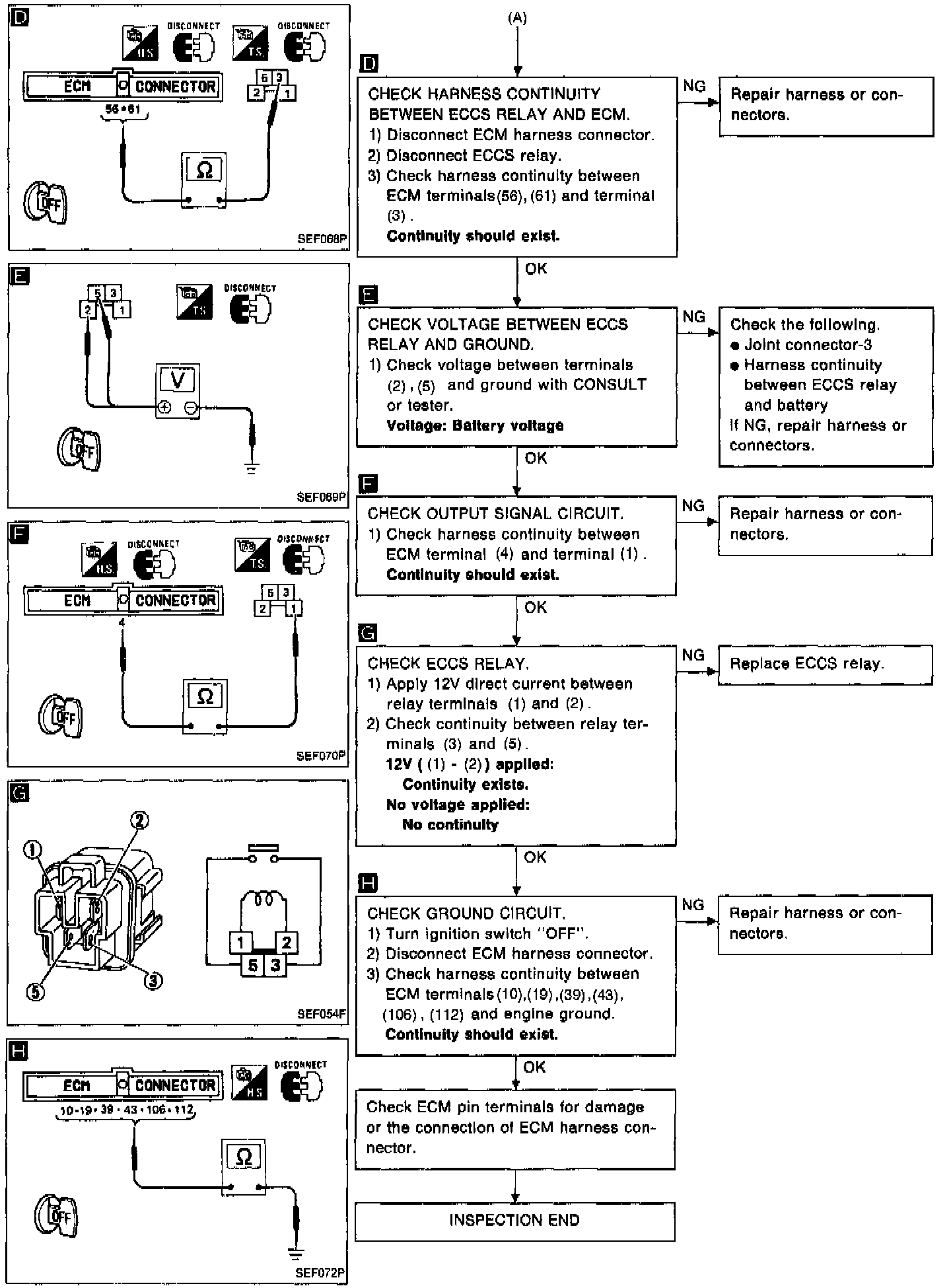

DIAGNOSTIC CHART
Main Power And Ground Circuit:
CIRCUIT DIAGRAM
