Idle Air Control Valve - Fast Idle Control Device (IACV-FICD)
>>
Diagnostic Procedure
Diagnostic Procedure

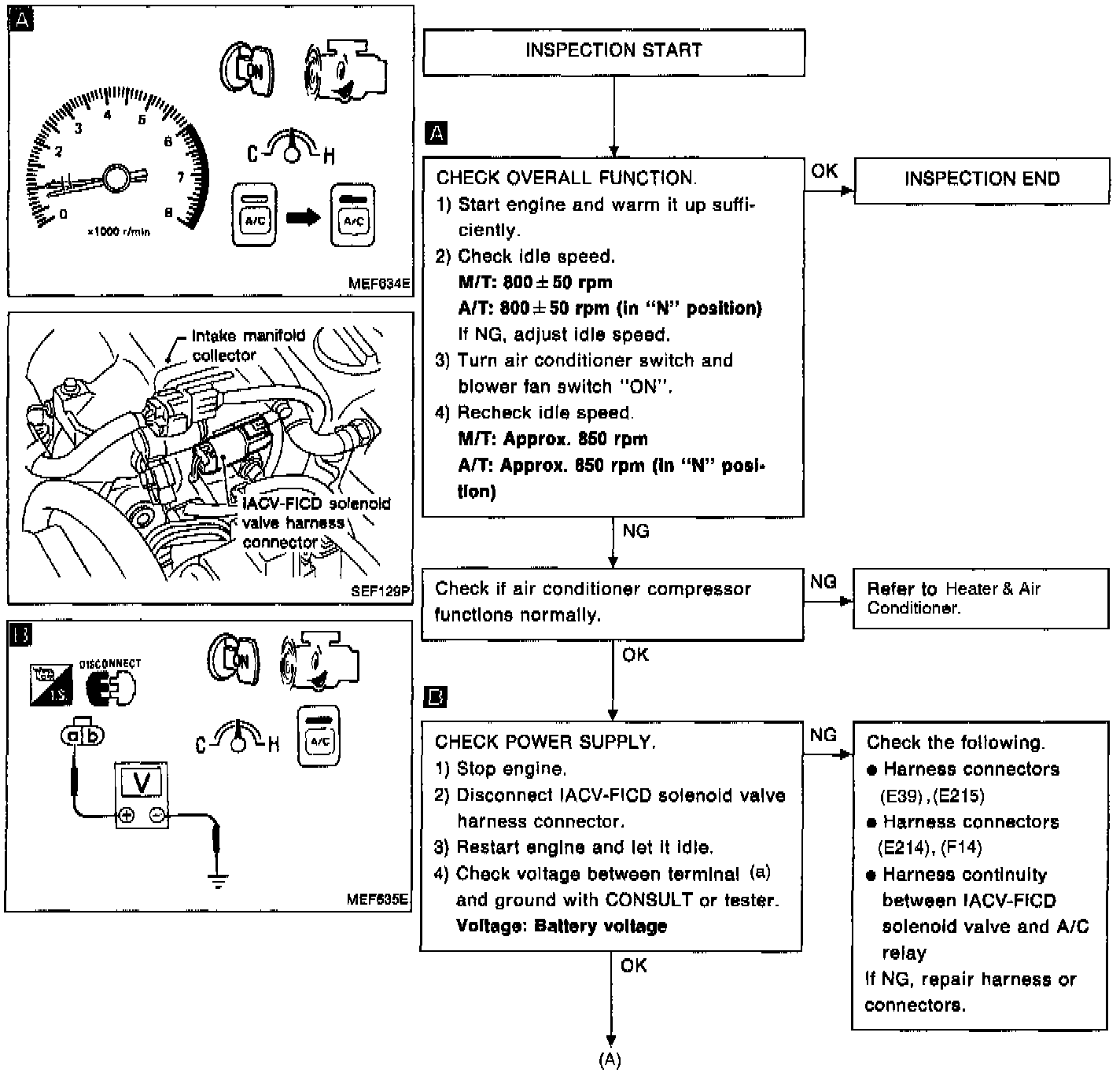

IACV-FICD Solenoid Valve Non-DTC Chart:
IACV-FICD Solenoid Valve Non-DTC Chart:
DIAGNOSTIC CHART

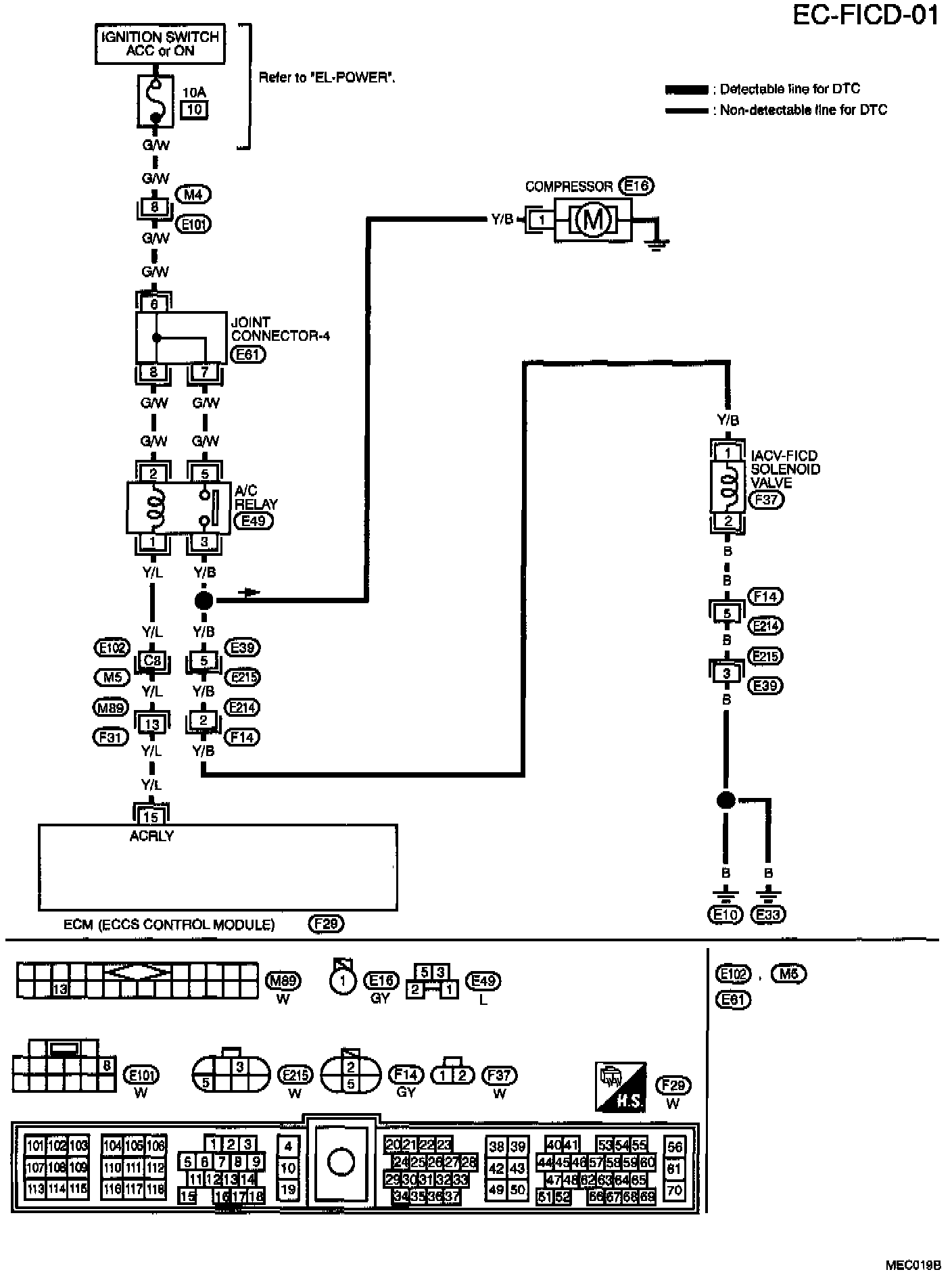

IACV-FICD Solenoid Valve Diagram:
CIRCUIT DIAGRAM
