Automatic Transmission Only

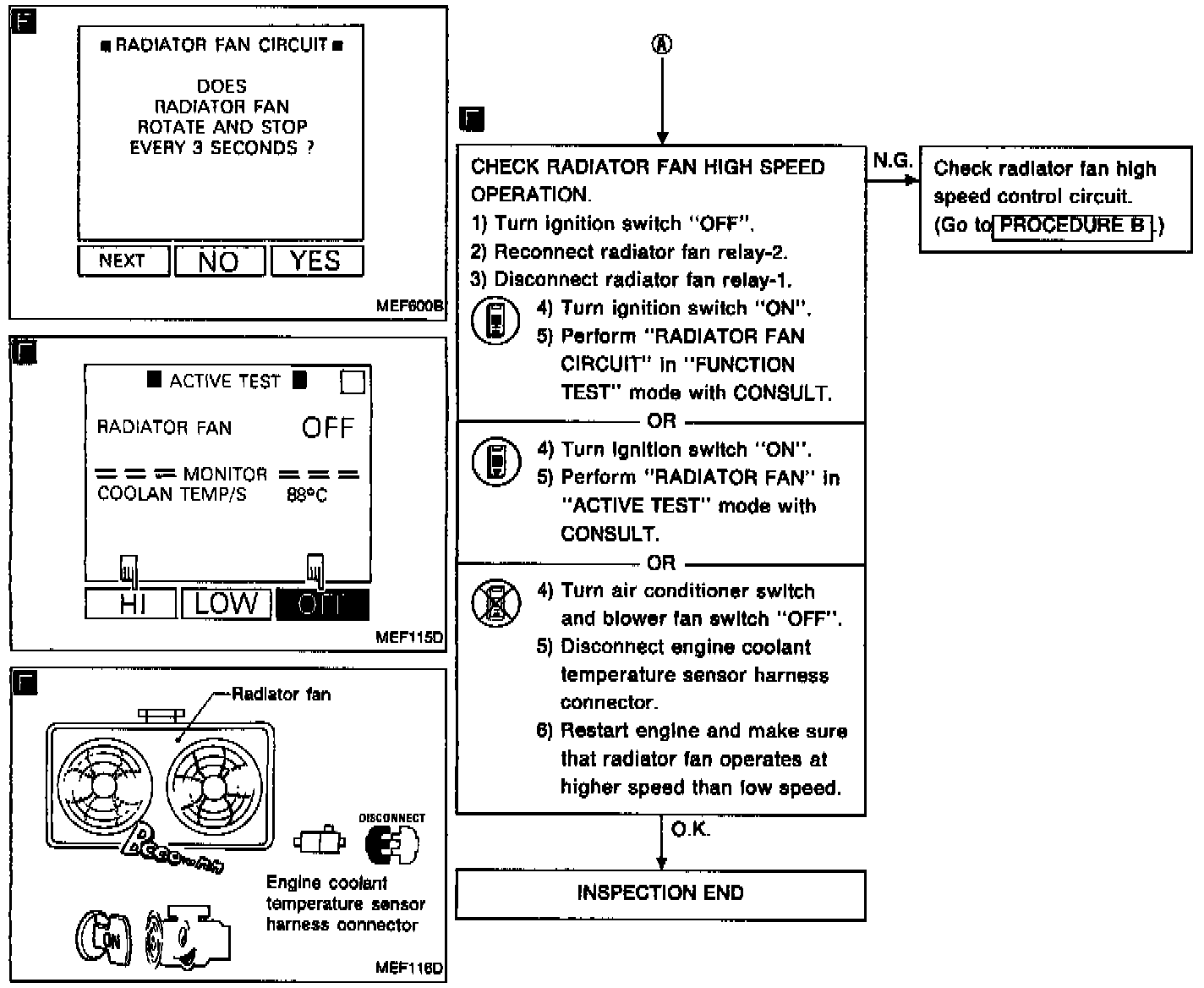

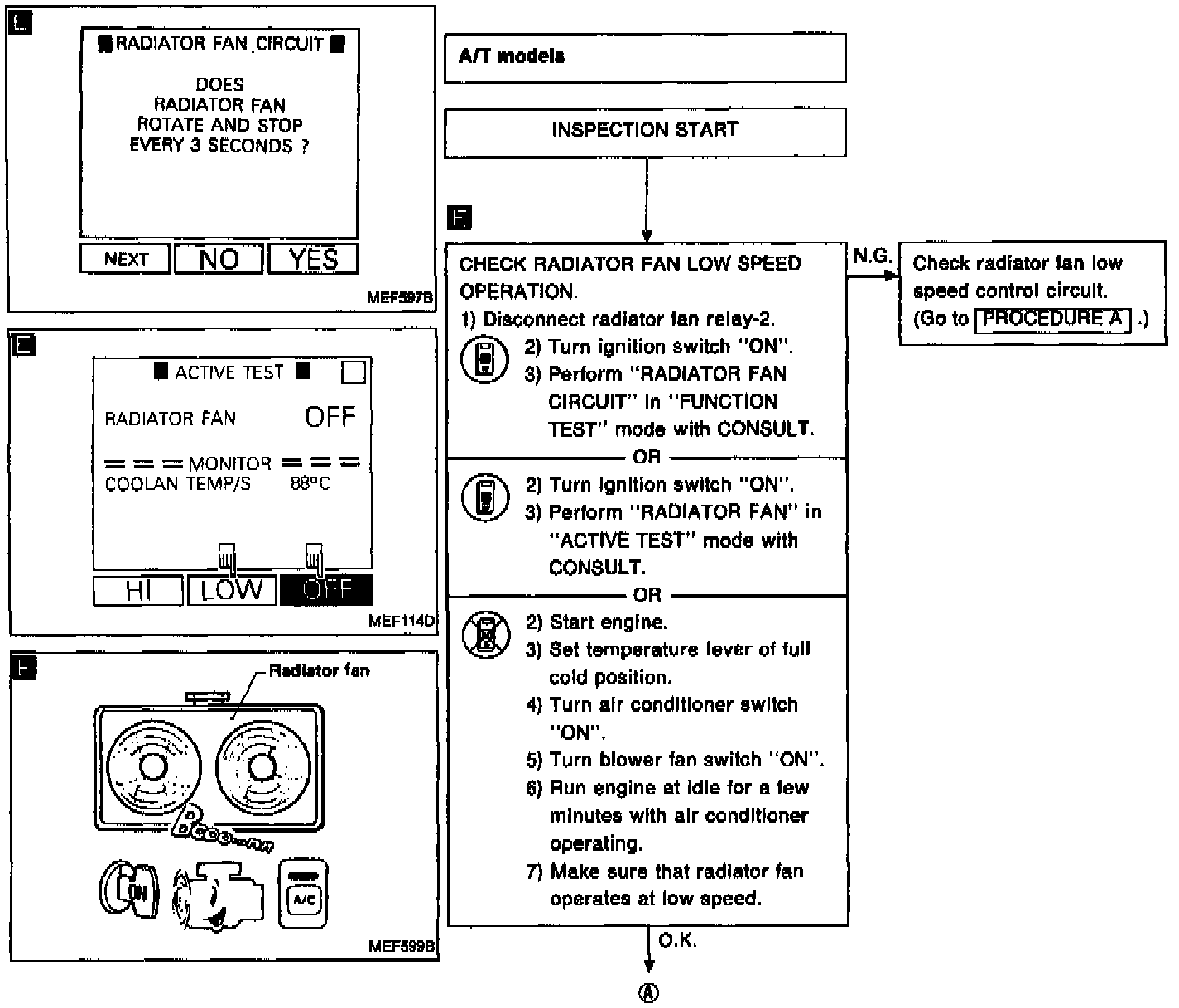

Non-DTC Chart - Radiator Fan Control:

Non-DTC Chart - Radiator Fan Control:

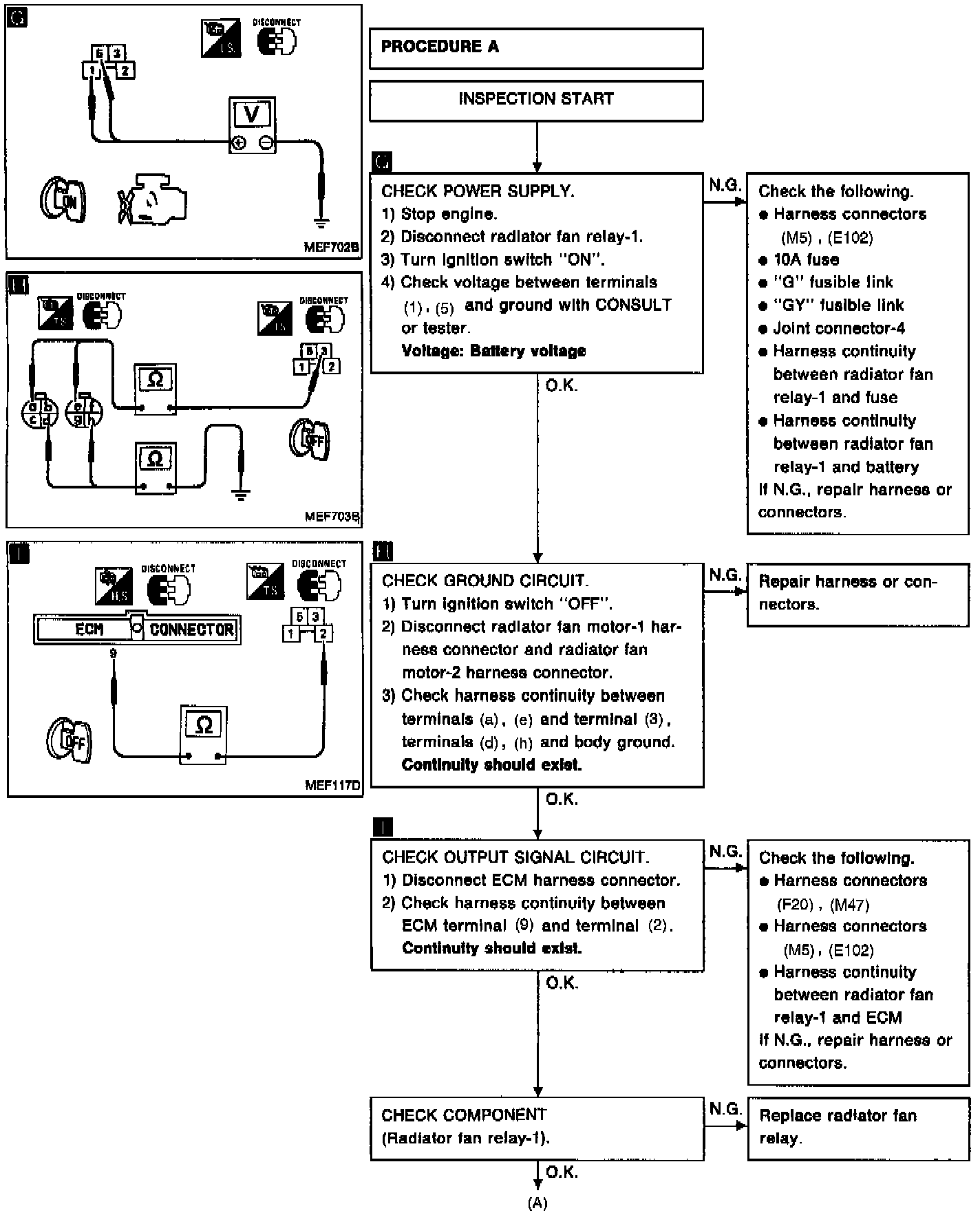

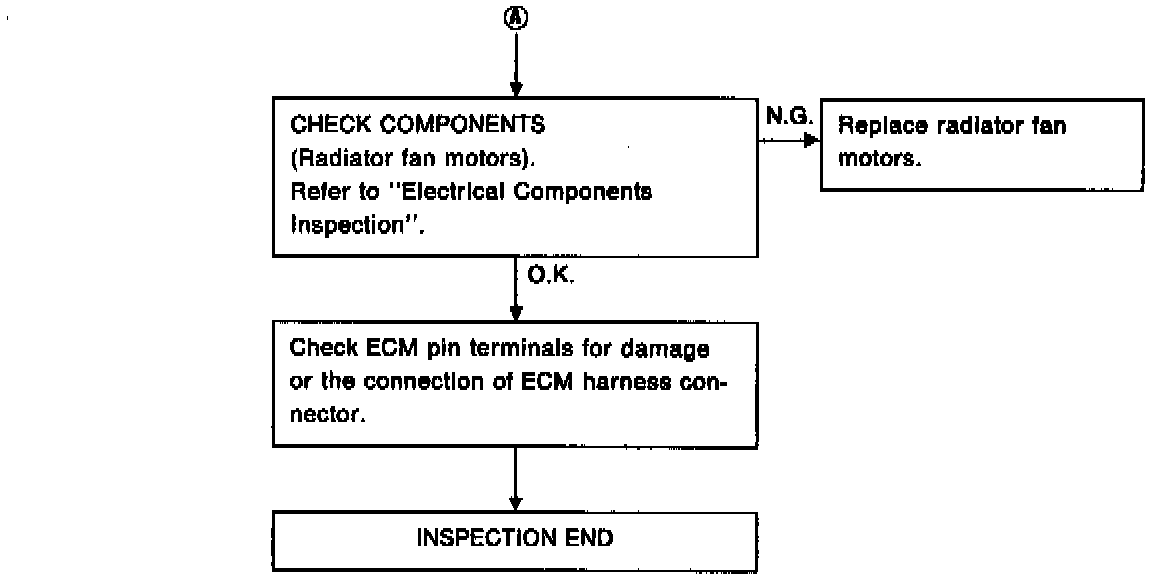

Procedure A:

Procedure A:

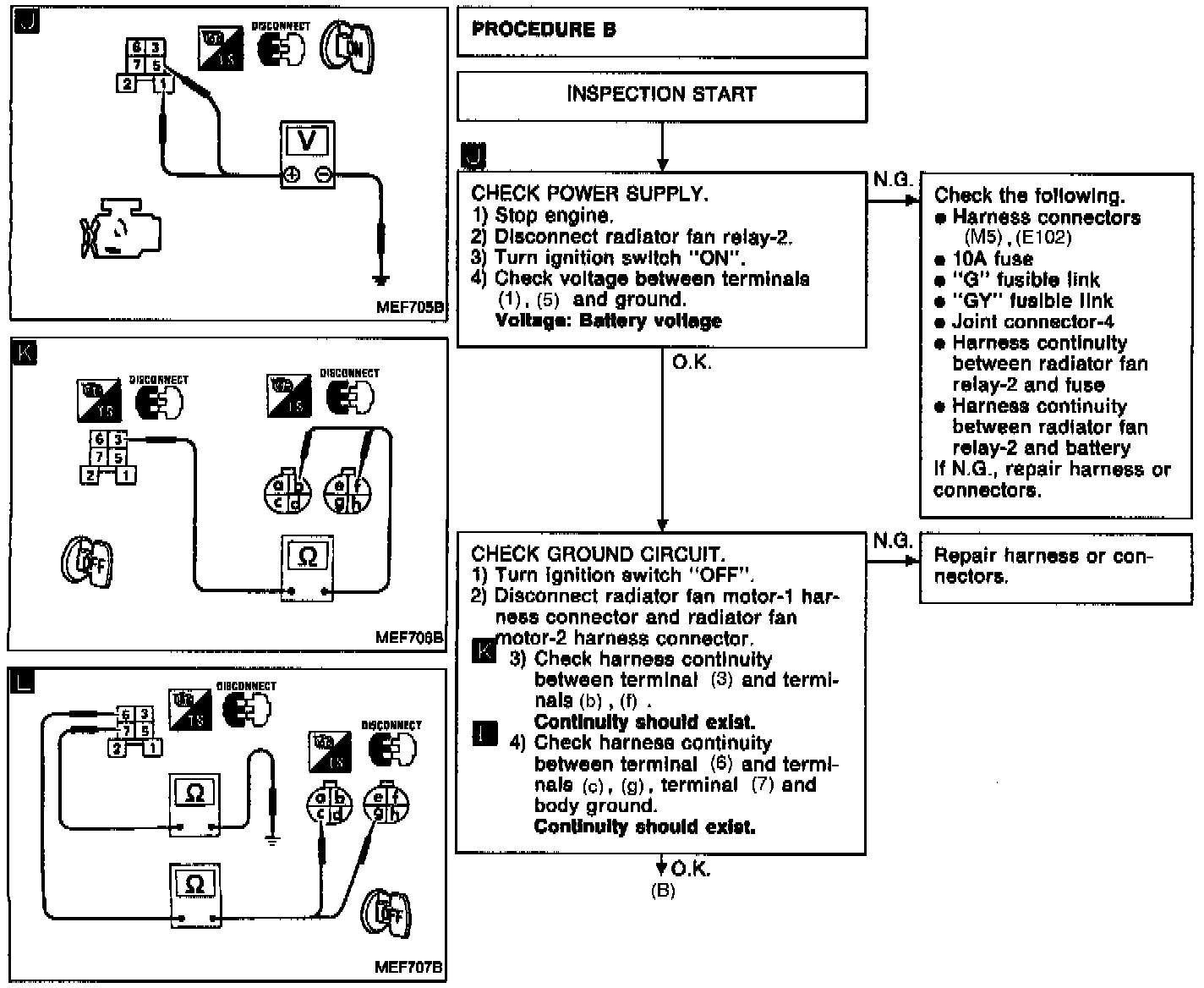

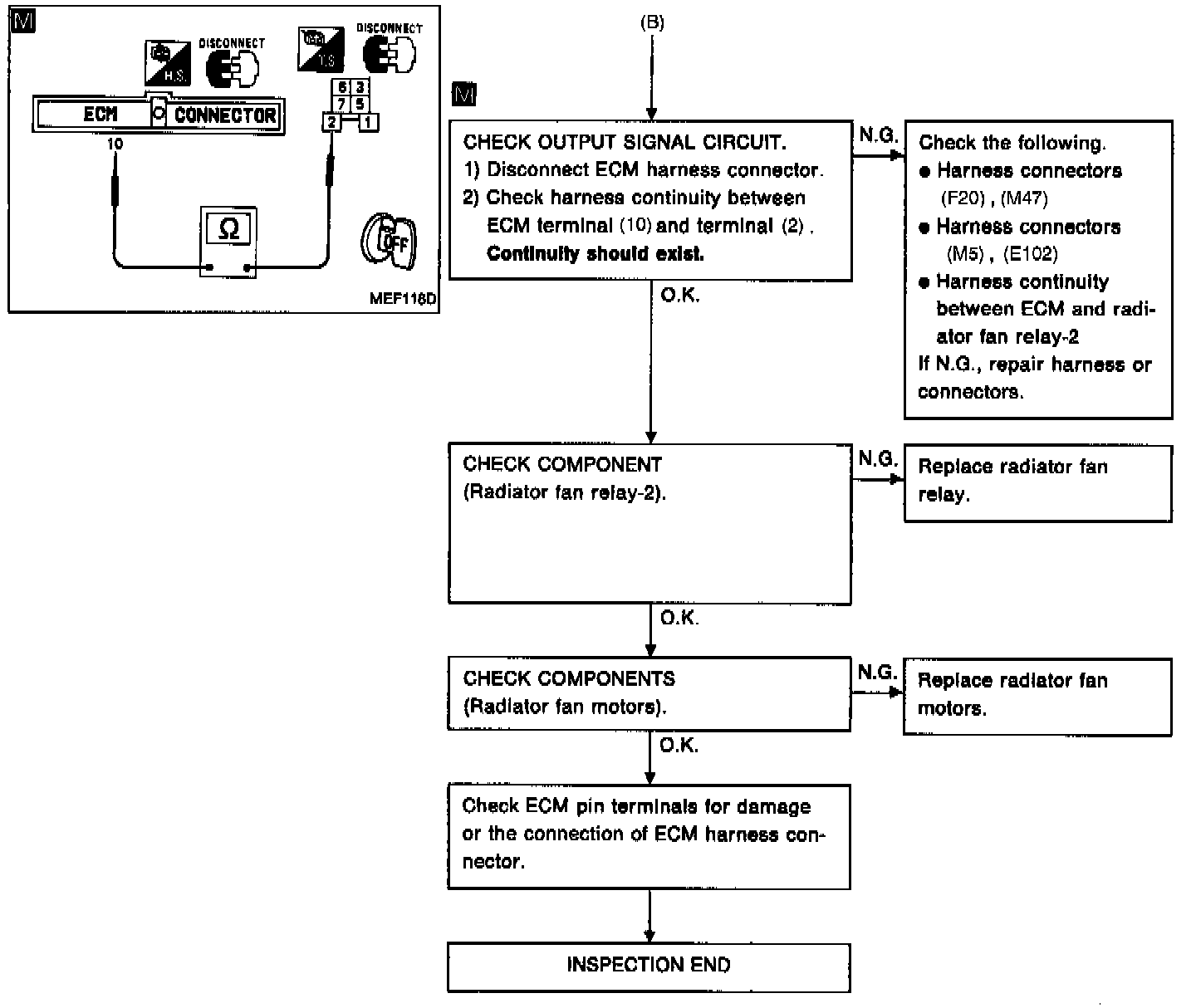

Procedure B:

Procedure B:

DIAGNOSTIC CHART

Radiator Fan Control Circuit Diagram:

CIRCUIT DIAGRAM

Radiator Fan Relays:

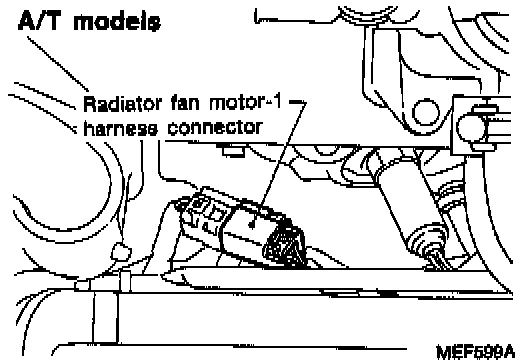

Radiator Fan Control Harness Connector:

HARNESS LAYOUT
