Home >> Infiniti >> 1994 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> System Diagram >> Canada >> A/T

A/T

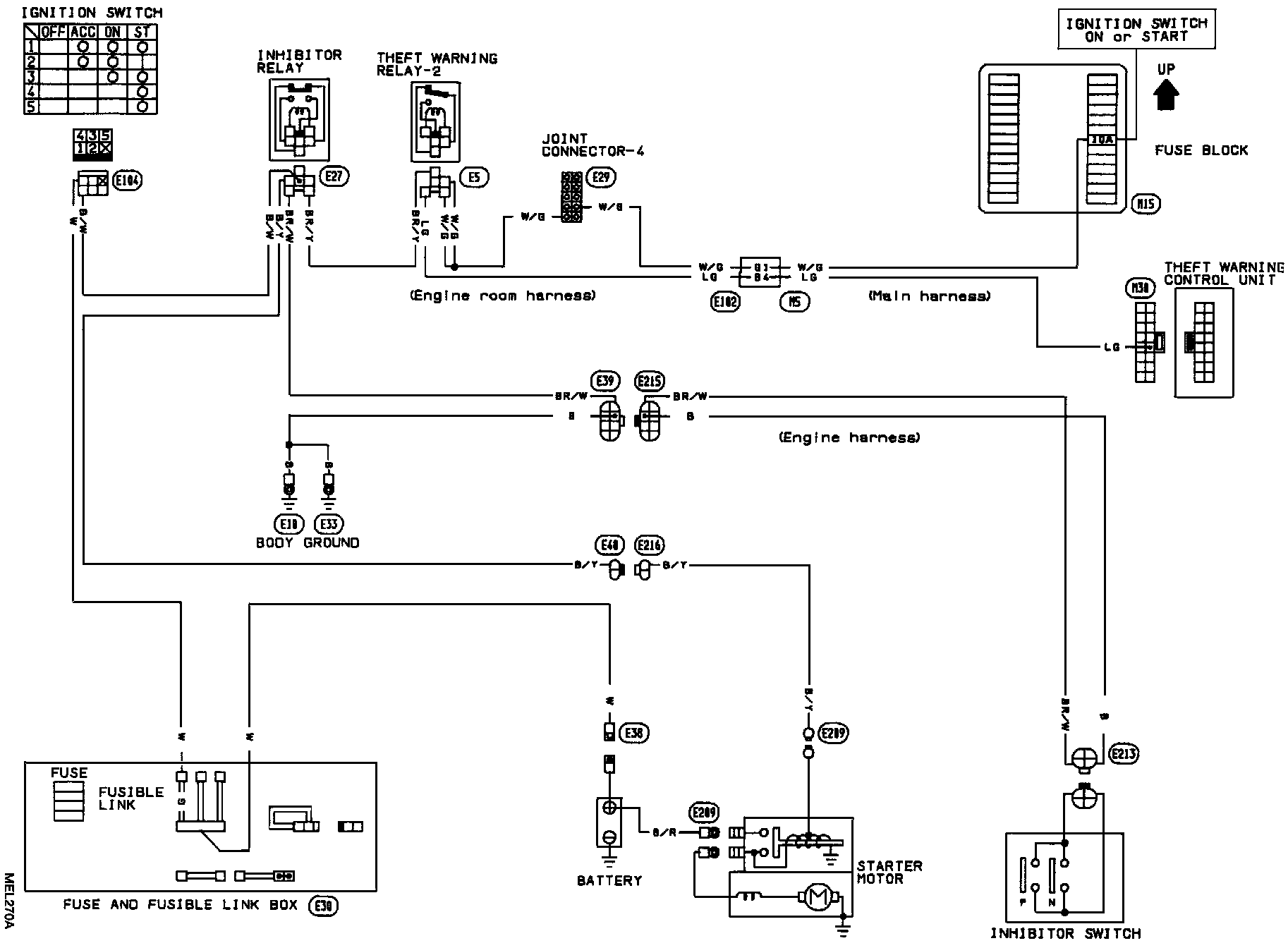

Wiring Diagram-A/T Models:
