Home >> Infiniti >> 1994 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Throttle Position Sensor >> USA

USA

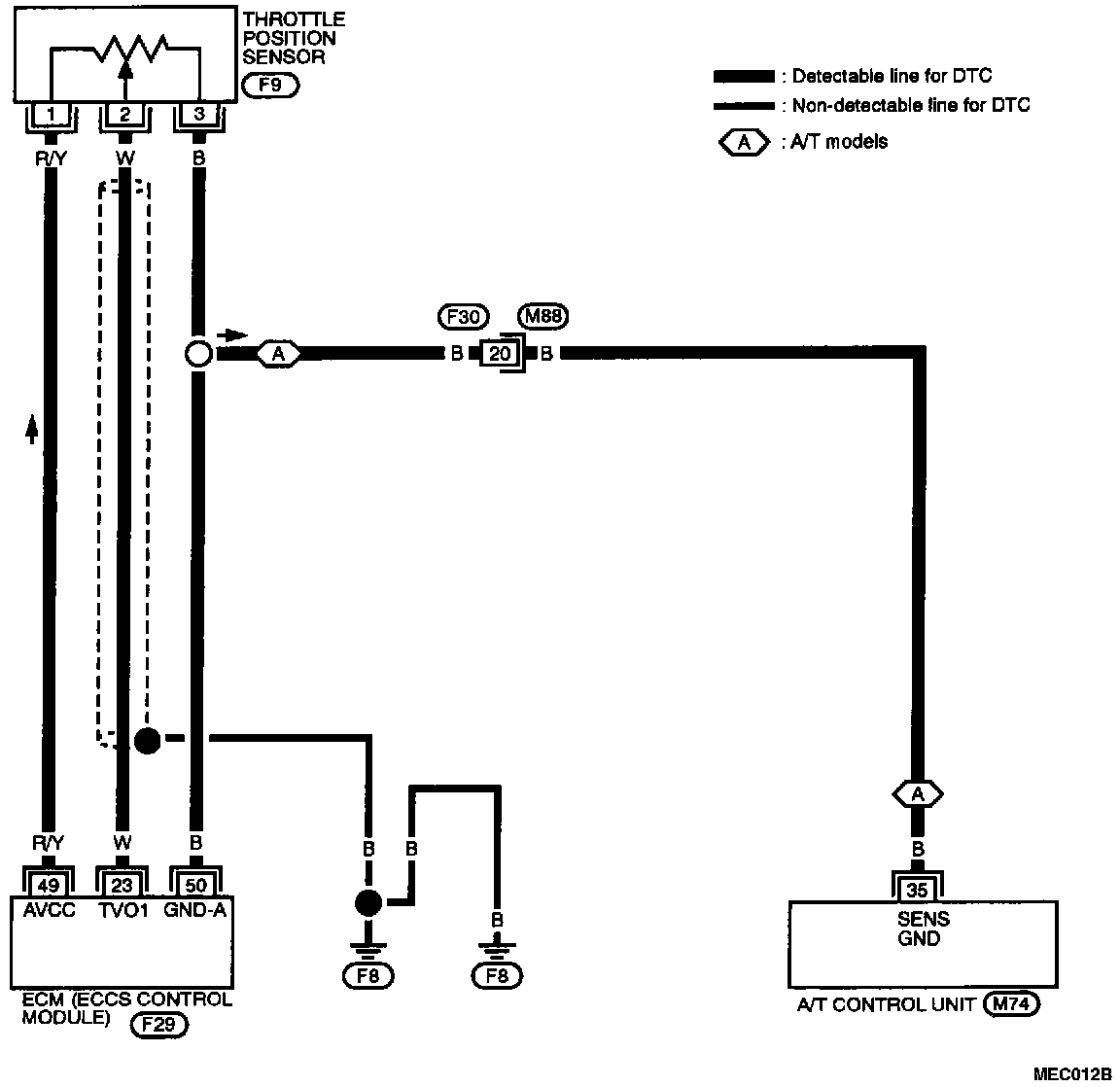

Throttle Position Sensor (DTC: P0120):
