Antilock Brakes / Traction Control Systems
>>
* USA
* USA

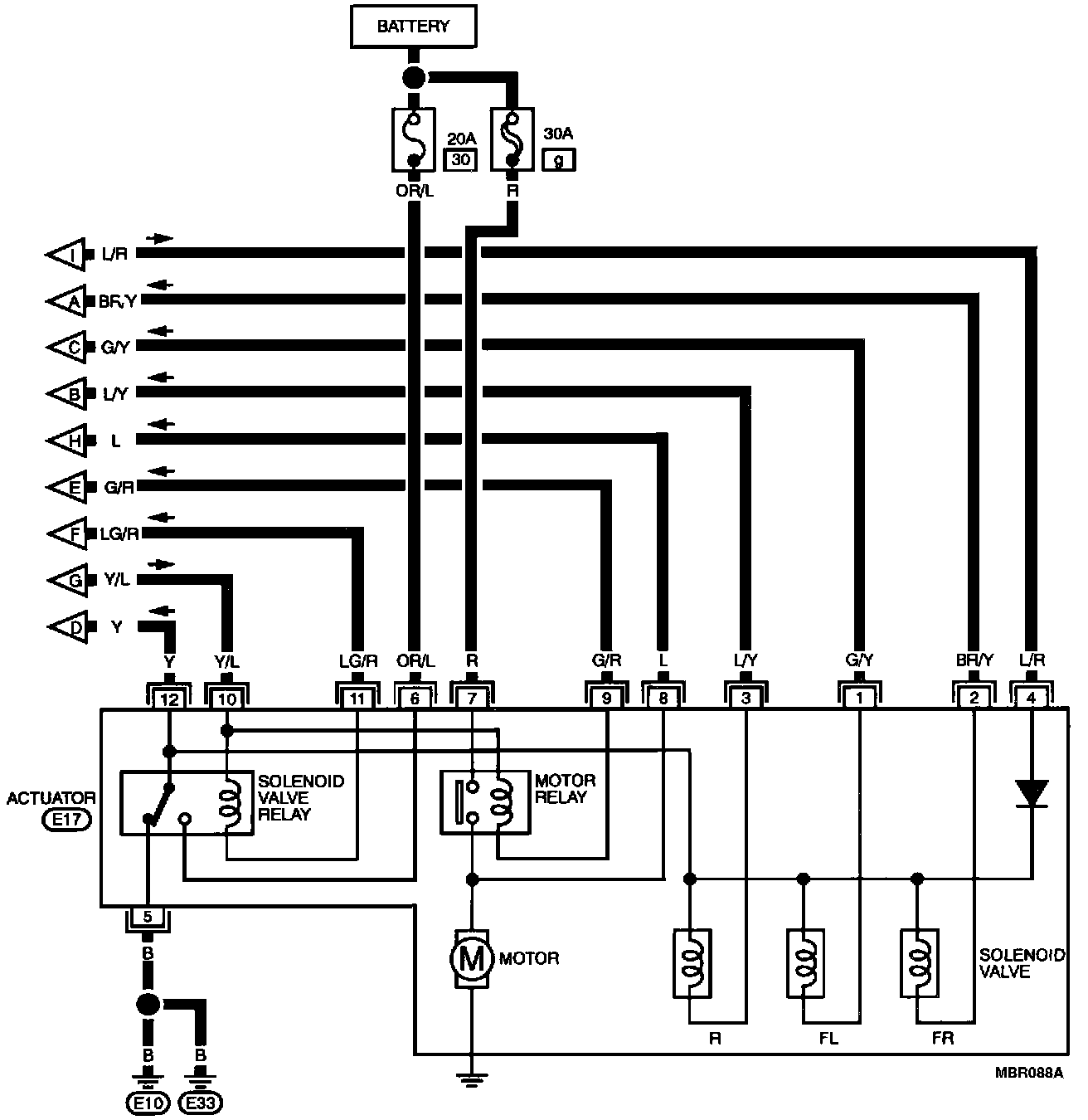

ABS Wiring Diagram (Part 1 Of 4):

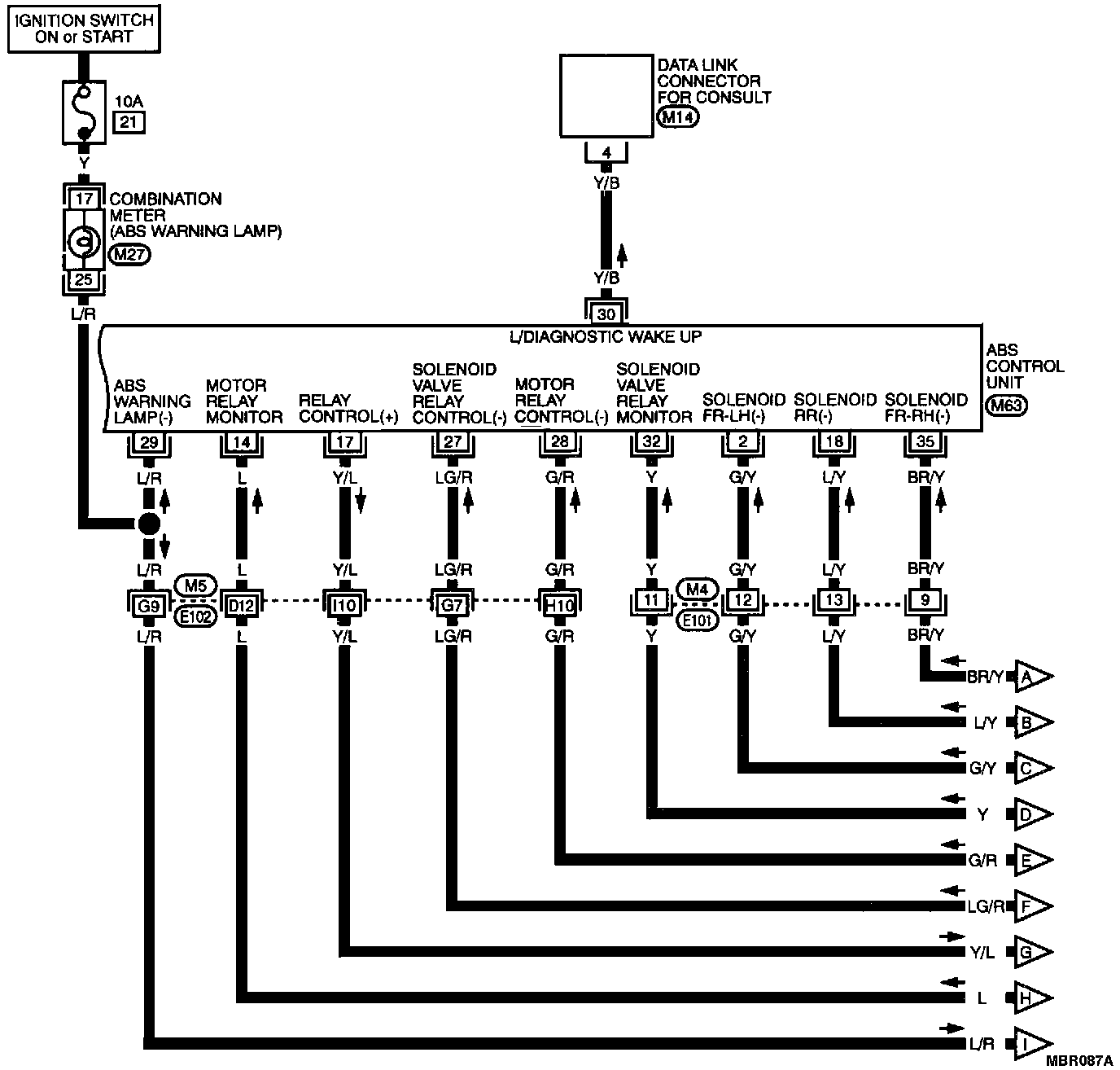

ABS Wiring Diagram (Part 2 Of 4):

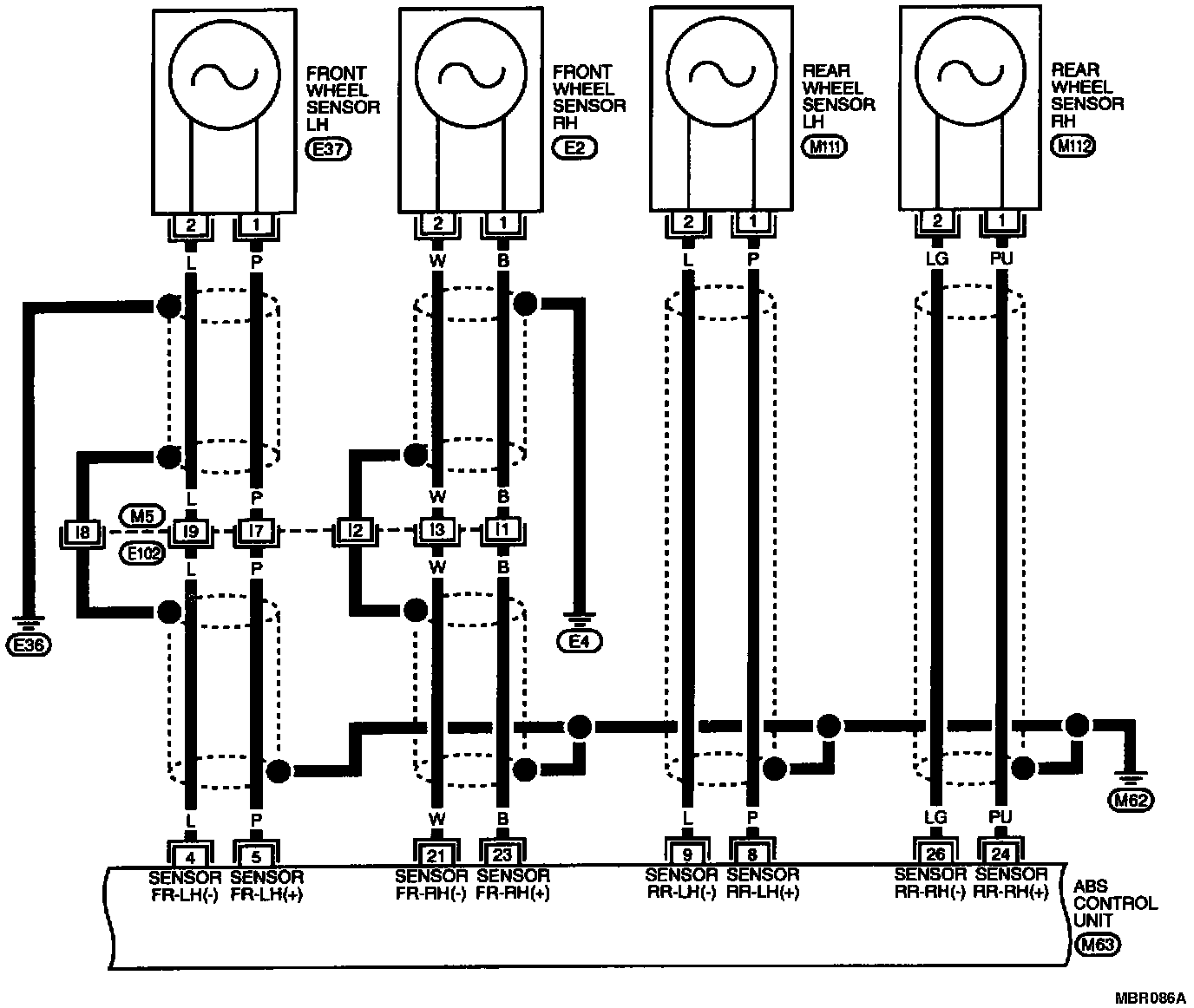

ABS Wiring Diagram (Part 3 Of 4):

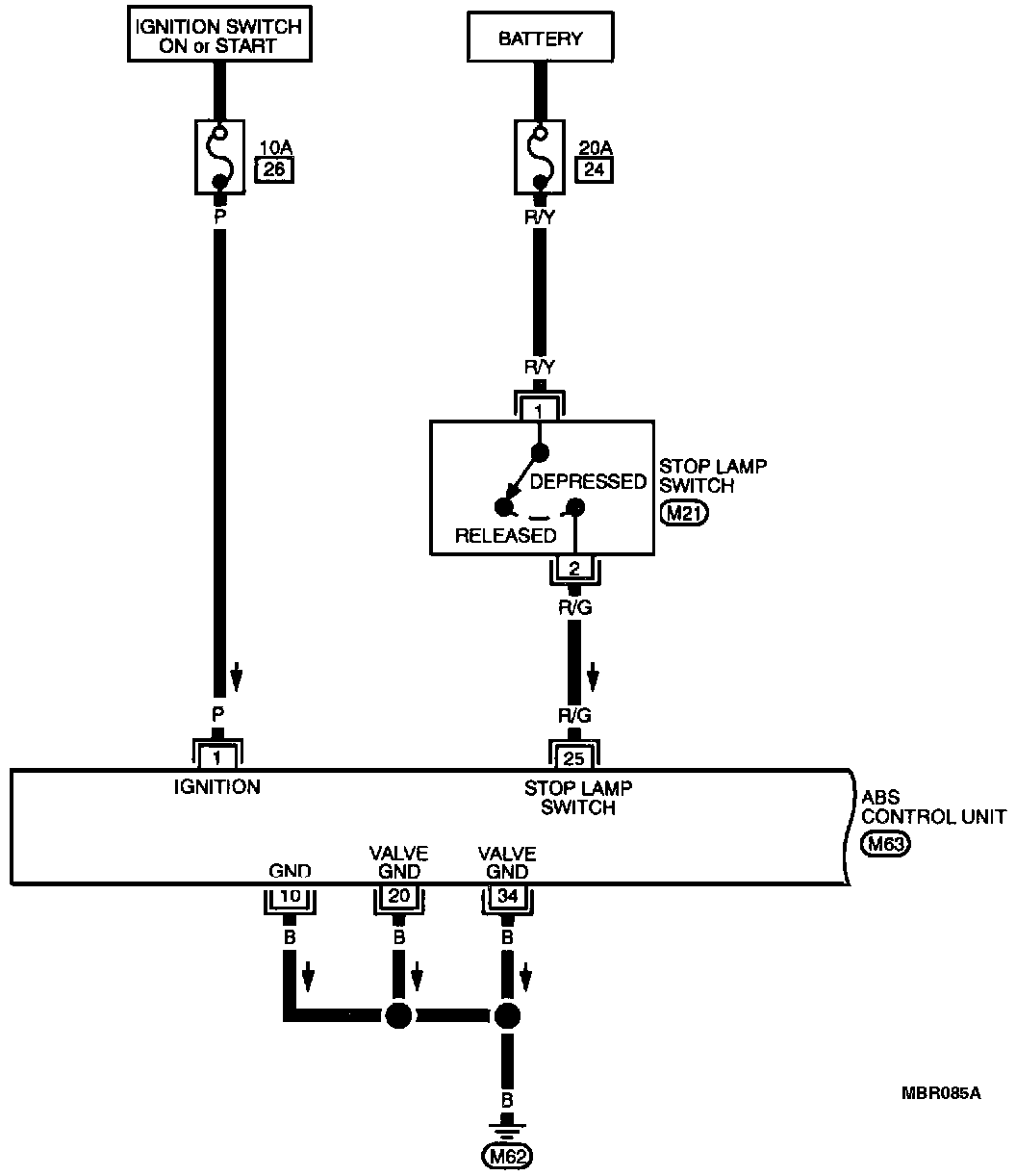

ABS Wiring Diagram (Part 4 Of 4):
