Infiniti
>>
1994
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
USA
USA

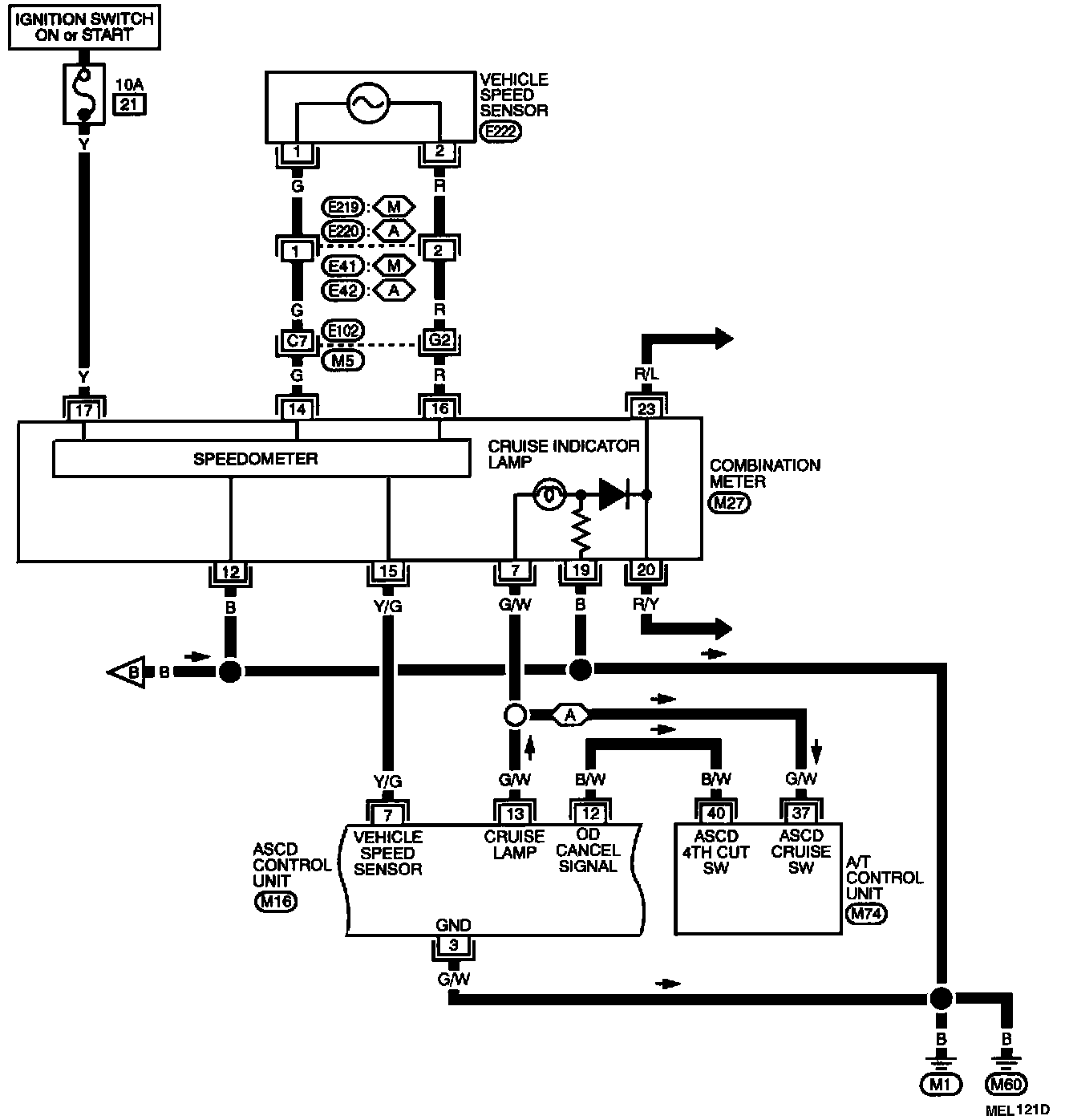

ASCD Wiring Diagram (Part 1 Of 5):

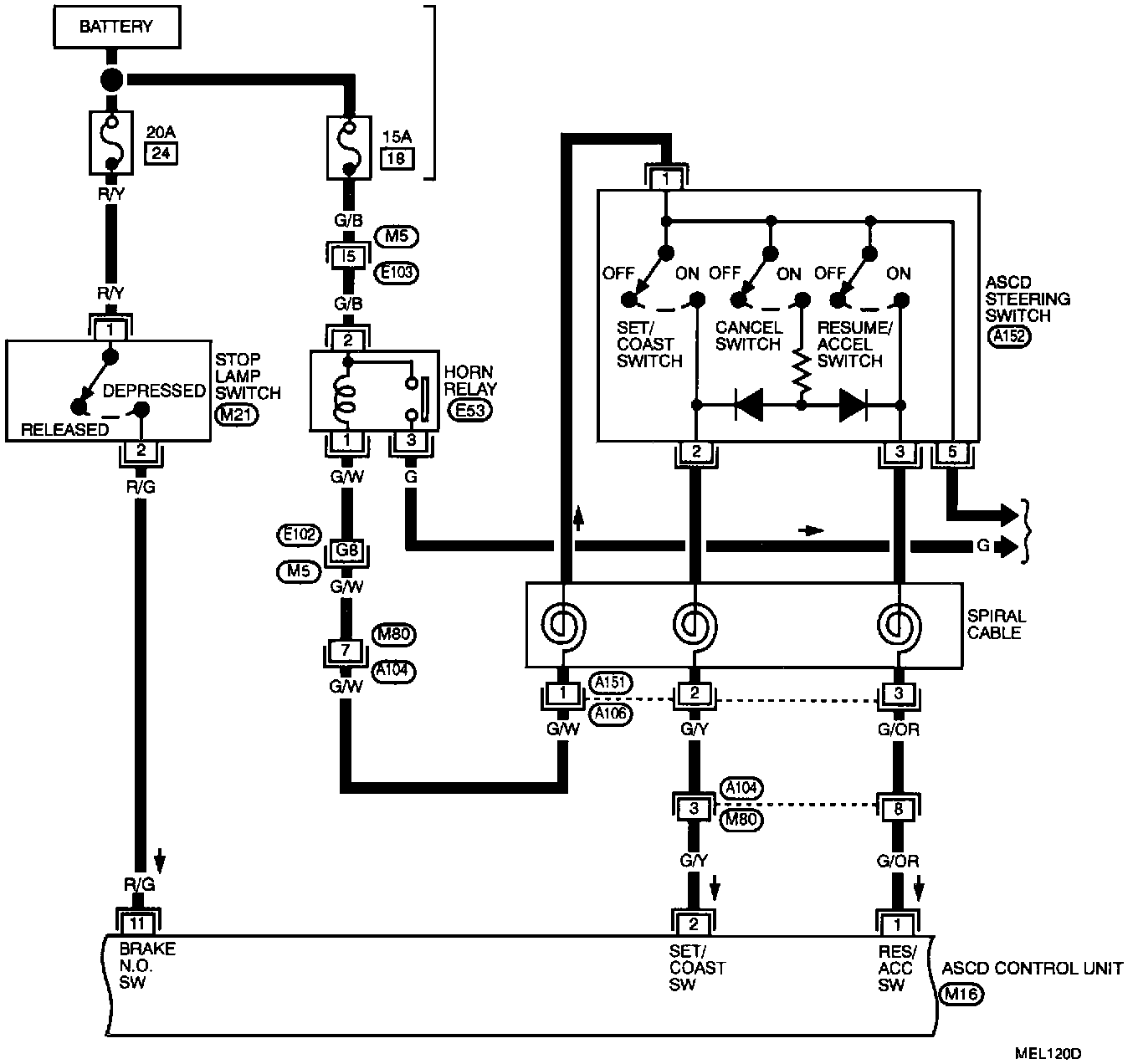

ASCD Wiring Diagram (Part 2 Of 5):

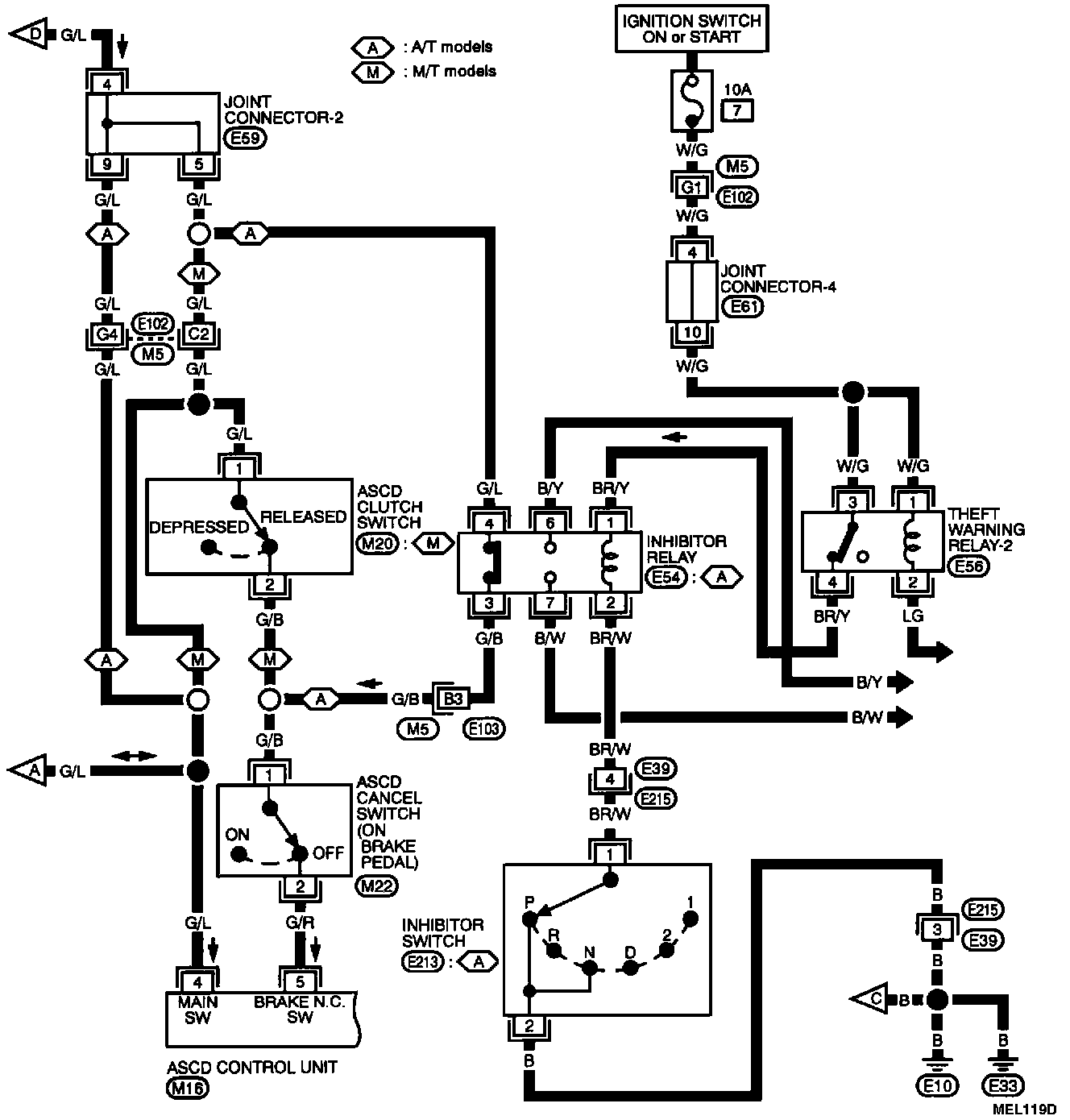

ASCD Wiring Diagram (Part 3 Of 5):

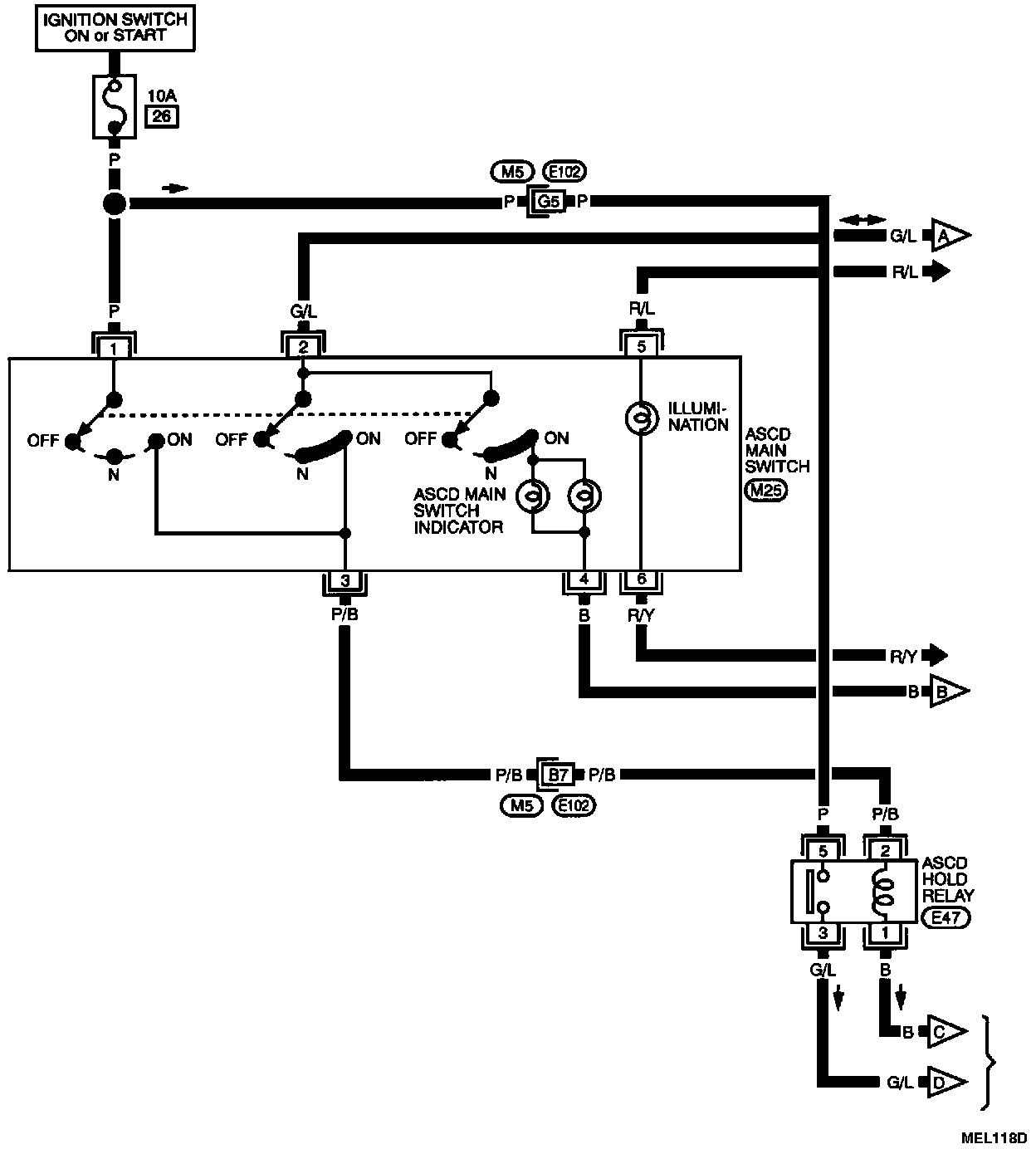

ASCD Wiring Diagram (Part 4 Of 5):
ASCD Wiring Diagram (Part 5 Of 5):
