A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1705
>>
Diagnostic Procedure
Diagnostic Procedure

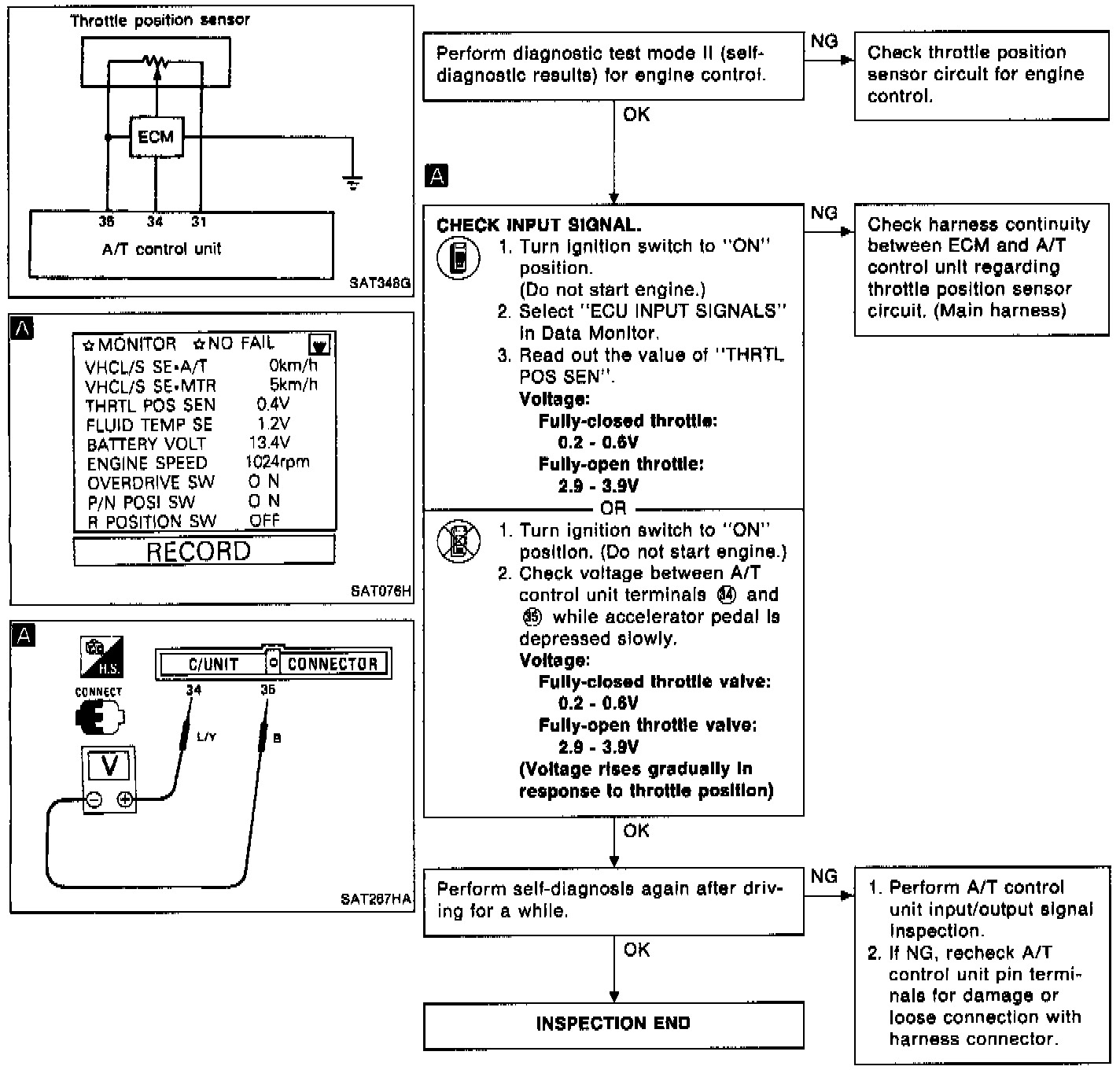

TP Sensor-DTC Chart:
DIAGNOSTIC CHART
