A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
Code 43
>>
USA
USA

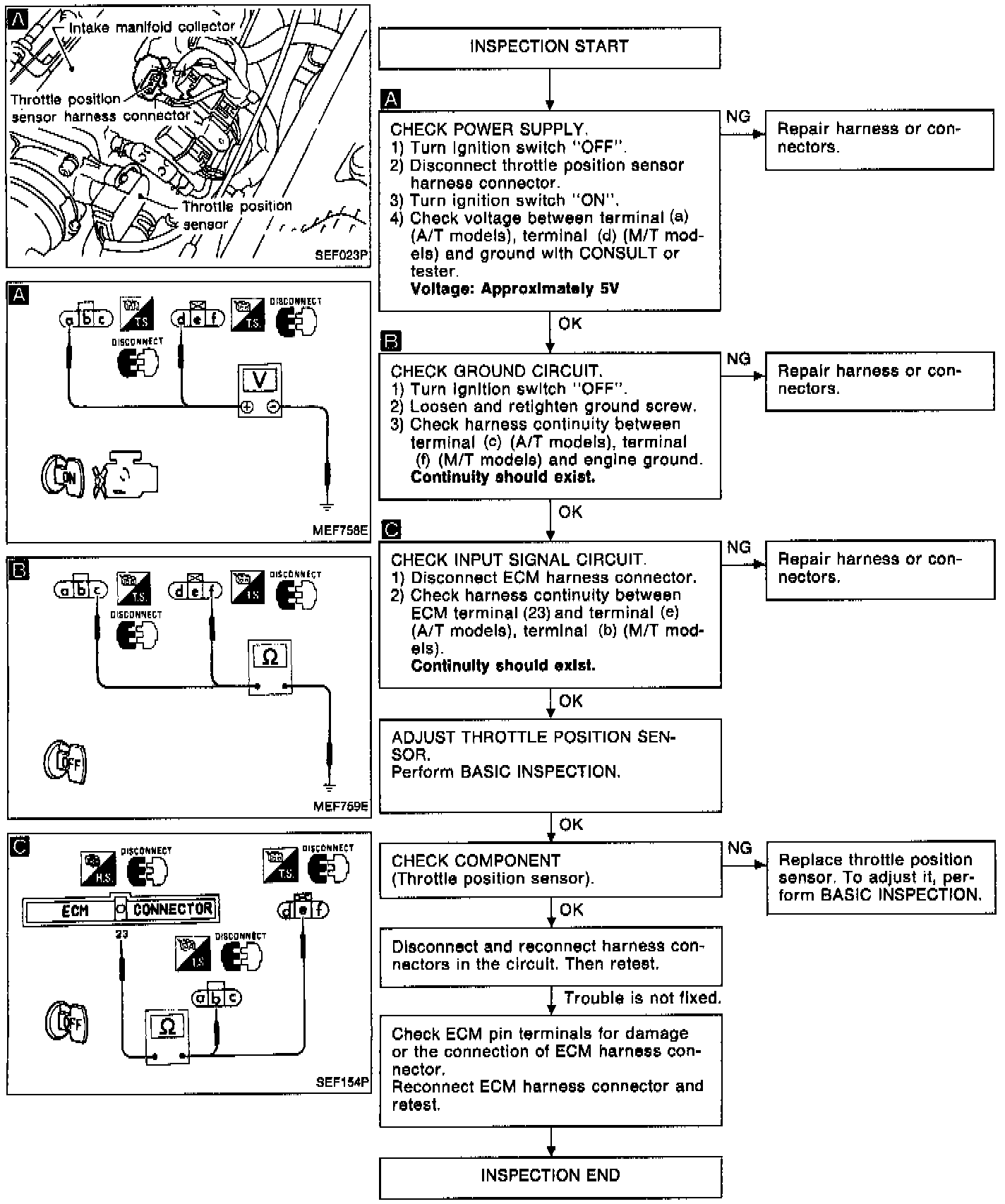

Throttle Position Sensor DTC Chart:
DIAGNOSTIC CHART

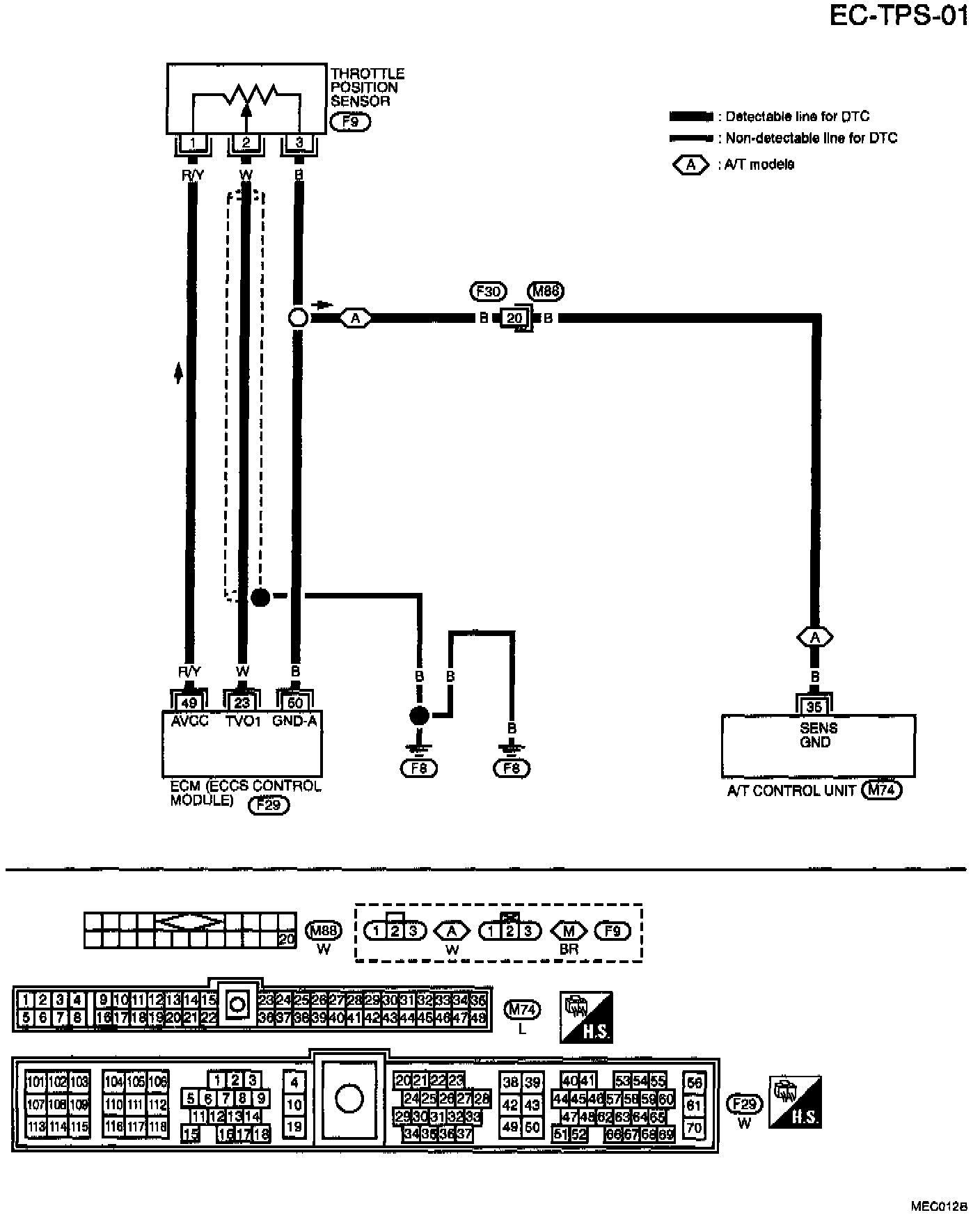

Throttle Position Sensor Diagram:
CIRCUIT DIAGRAM
