Home
>>
Infiniti
>>
1994
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
Code 34
>>
USA
USA

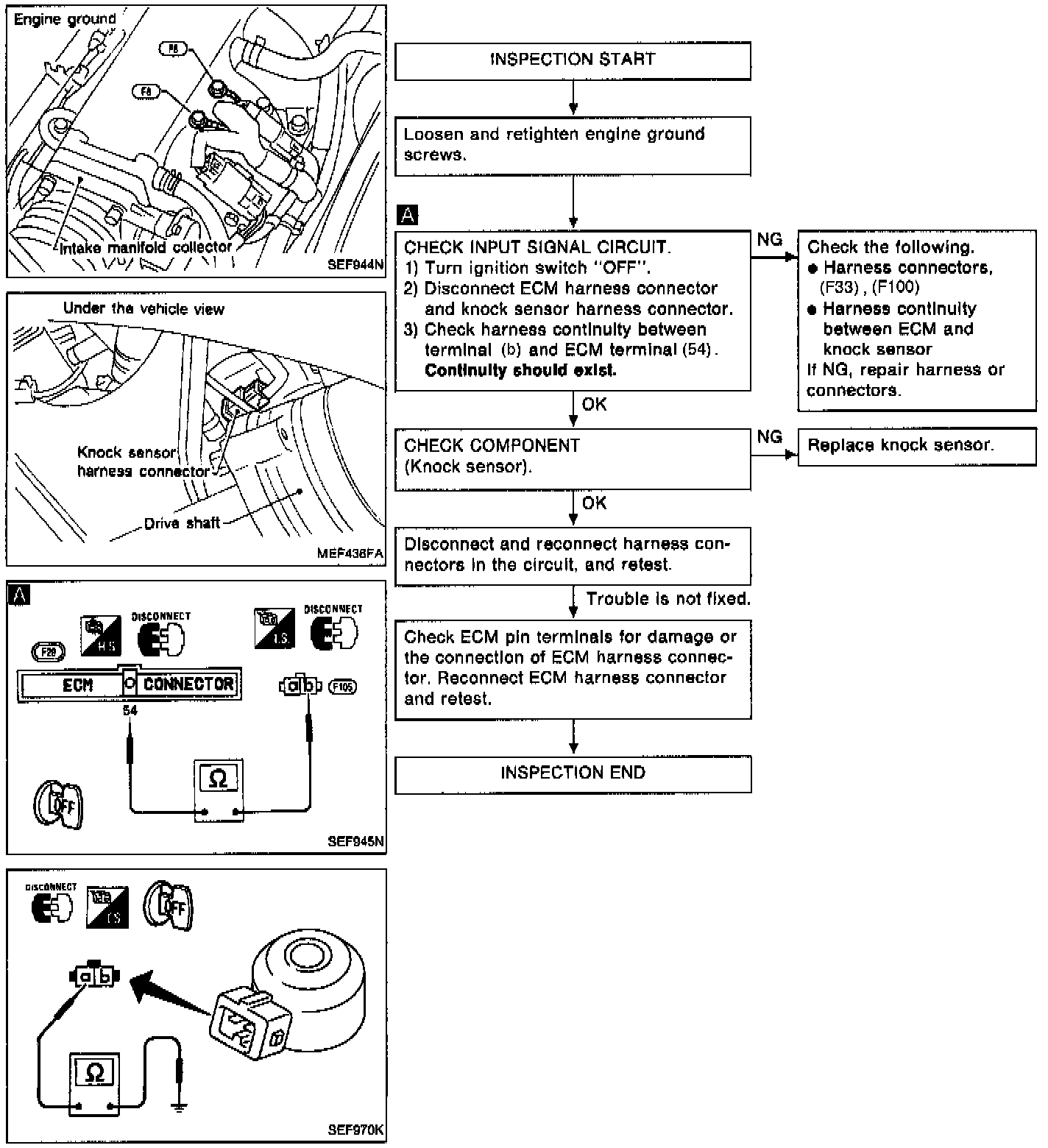

Knock Sensor DTC Chart:
DIAGNOSTIC CHART

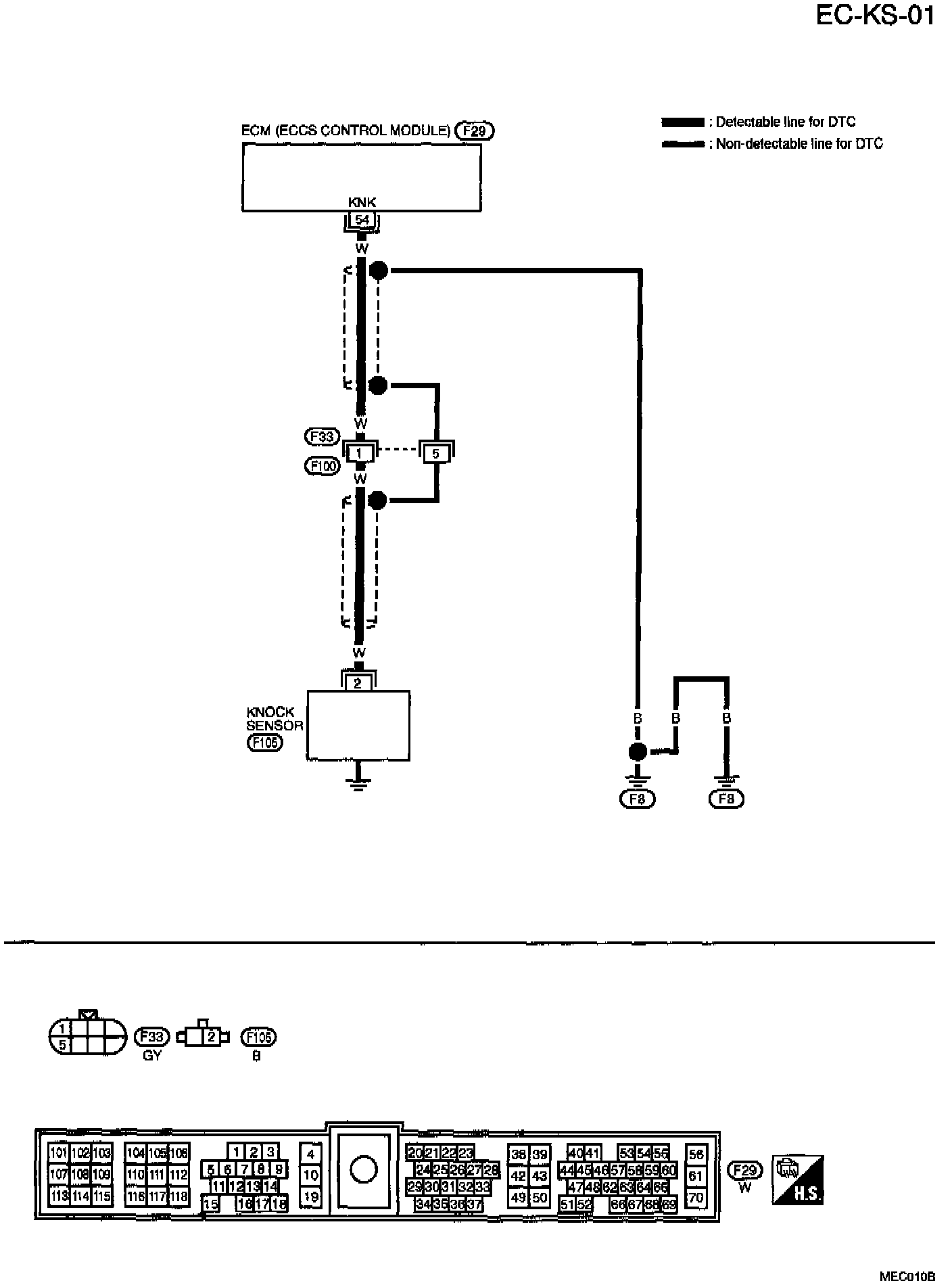

Knock Sensor Diagram:
CIRCUIT DIAGRAM
