Canada

DTC Chart - 13:




DTC Chart - 13:

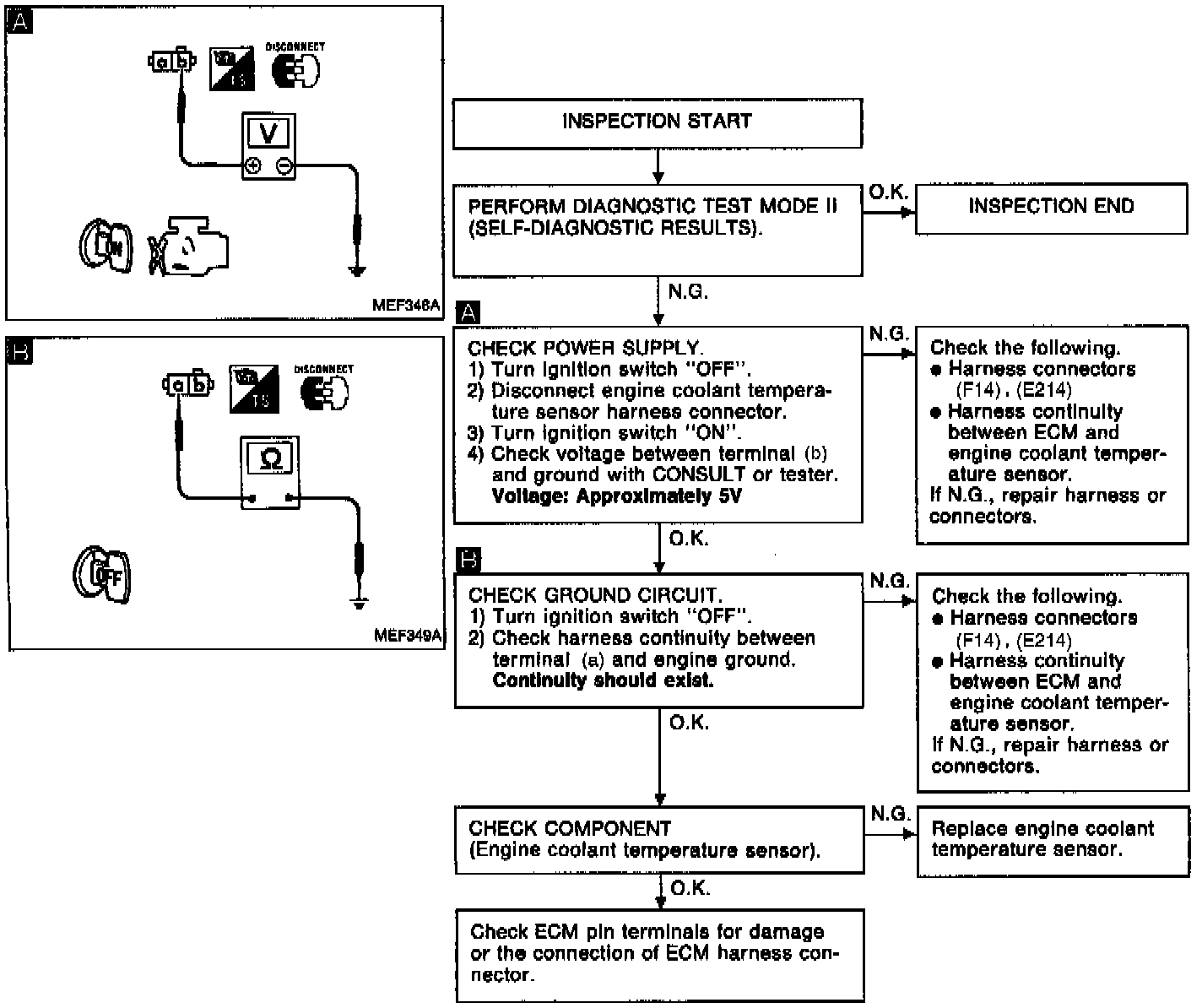

DIAGNOSTIC CHART

Engine Coolant Temperature Sensor:




CIRCUIT DIAGRAM

Engine Coolant Temperature Sensor Harness Connector:




HARNESS LAYOUT
